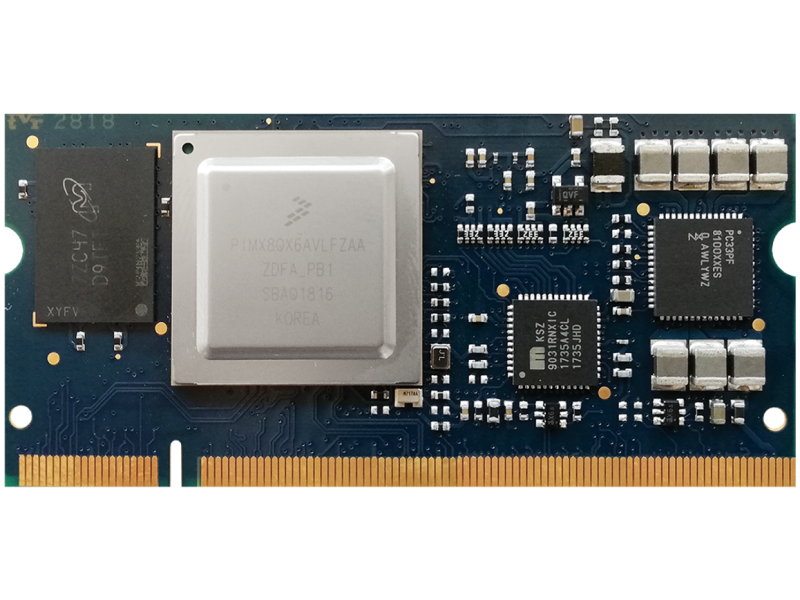

i.Core MX8X
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | i.MX8X |
|---|---|
| CPU #2 | Manufacturer: NXP |
| CPU #3 | VPU: ja |
| CPU #4 | GPU: ja |
| Cores | ARM |
| Cores #2 | Up to4 x Cortex-A35@1.2GHz & Cortex-M4F@266MHz |
| Cores #3 | 2, 4 cores |
| Memory | LPDDR4@2400MTs |
| Memory #2 | 1GB up to 4GB |
| Graphics & AI | 1 x 2- or 4-Shader, OpenGL ES 3.0 or 3.1 Vulkan® VX Extensions |
| Video Interfaces | DSI, LVDS |
| Video Processing Unit Capabilities | 4Kp30 (h.265, h.264, VP8) dec; 1080p60 (h.264, VP8) enc |
| Mass Storage | 4GB eMMC expandible |
| Mass Storage #2 | EMMC |
| Networking | 2x 1Gb Ethernet |
| USB | 1x OTG |
| USB #2 | 1x USB3 |
| PCIe | 1 |
| PCIe #2 | 1 x PCIe interface |
| Audio | 1 x I2S interface |
| Peripheral Interfaces | 1x UART (Up to 5) (Up to4x I2C)2x CAN (Up to 3) ADC1x SDIO (Up to4x SPI) JTAG interface Dual channels MIPI-CSI 4 lanes INPUT |
| Power Supply | single 5V |
| Operating System | Linux |
| Operating System #2 | Freeertos |
| Development System | Yocto |
| Operating Temperature | -40° up to 85° |
| Dimensions | EDIMM 2.0 |
| Dimensions #2 | 67.6 x 32 mm |
| Product availability | 2035 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| i.core_MX8X_Flyer.pdf | 299.97 KB | download – i.core_MX8X_Flyer.pdf |
