- Engicam

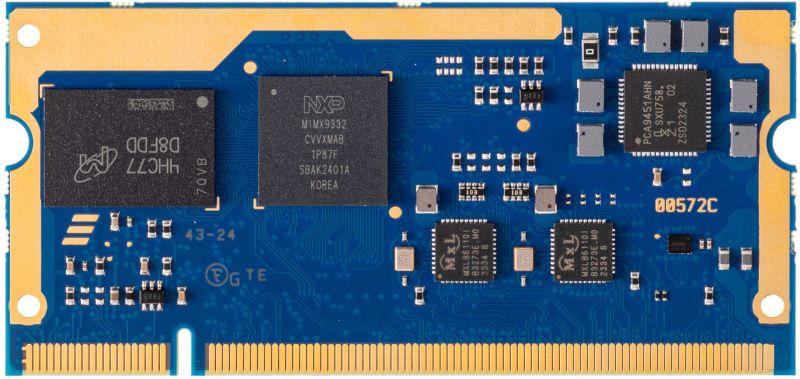

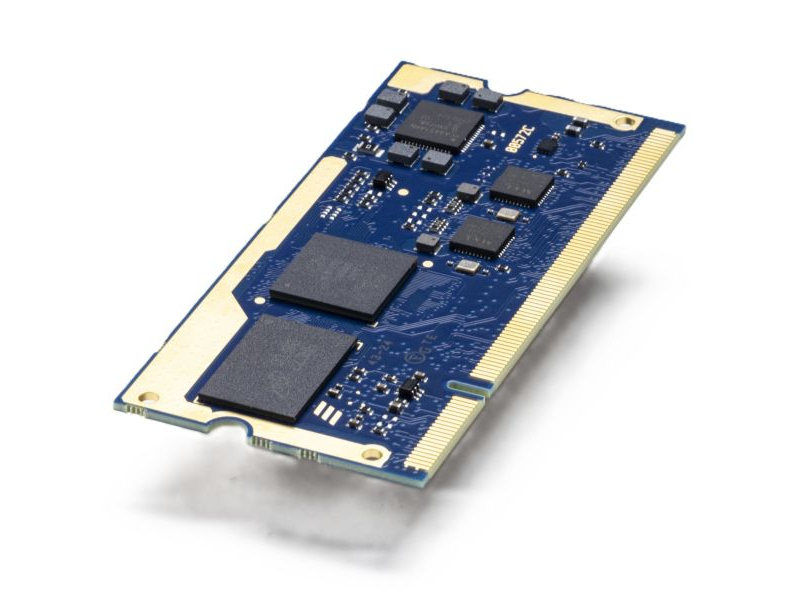

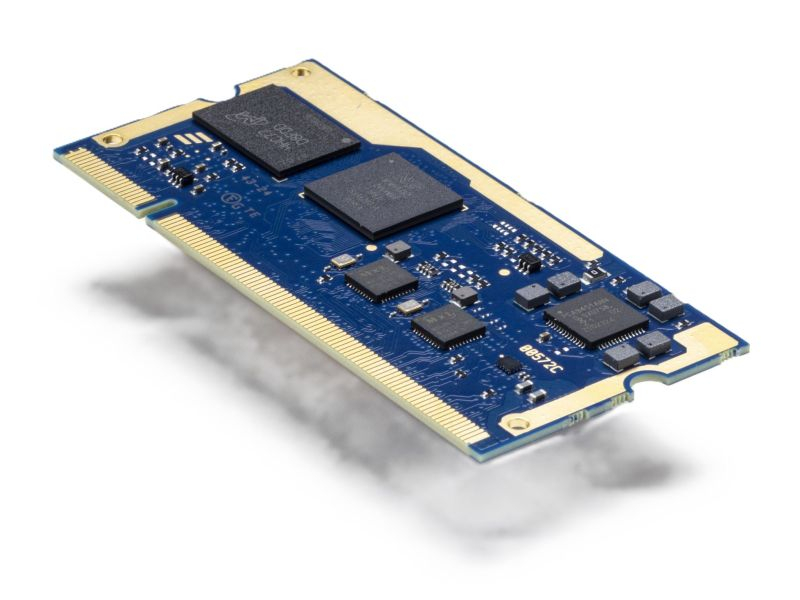

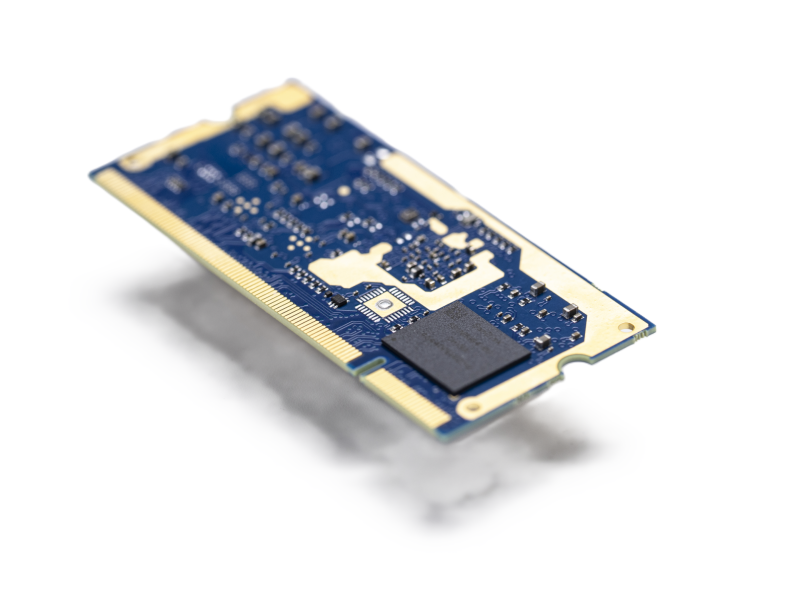

i.Core MX93
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | i.MX 93 |
|---|---|
| CPU #2 | Manufacturer: NXP |
| CPU #3 | NPU: ja |
| Cores | ARM |
| Cores #2 | Up to Dual Arm® Cortex®-A55 @ 1.7 GHz with Arm® Ethos™ U-65 microNPU and Arm Cortex-M33 @ 250MHz |
| Memory | LPDDR4X@3700MTs |
| Memory #2 | 1GB up to 2GB |
| Graphics & AI | Arm® Ethos™ U-65 microNPU Hardware Compositor for Blending/Composition, Resize, Color Space Conversion |
| Mass Storage | Starting from 4 GB soldered on-board |
| Networking | 2x 1Gb Ethernet |
| USB | 2x USB2 |
| PCIe | NO |
| Audio | I2S Interface |
| Peripheral Interfaces | 4x UART (Up to 6)2x I2C (Up to 8)1x SPI (Up to 6) JTAG2x CAN2x SDIO GPIOs RGMII option |
| Power Supply | single 5V |
| Operating Temperature | -40° up to 85° |
| Dimensions | 67.6 x 32 mm |
| Product availability | 2038 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| i.Core_MX93_Flyer.pdf | 313.09 KB | download – i.Core_MX93_Flyer.pdf |
