- Engicam

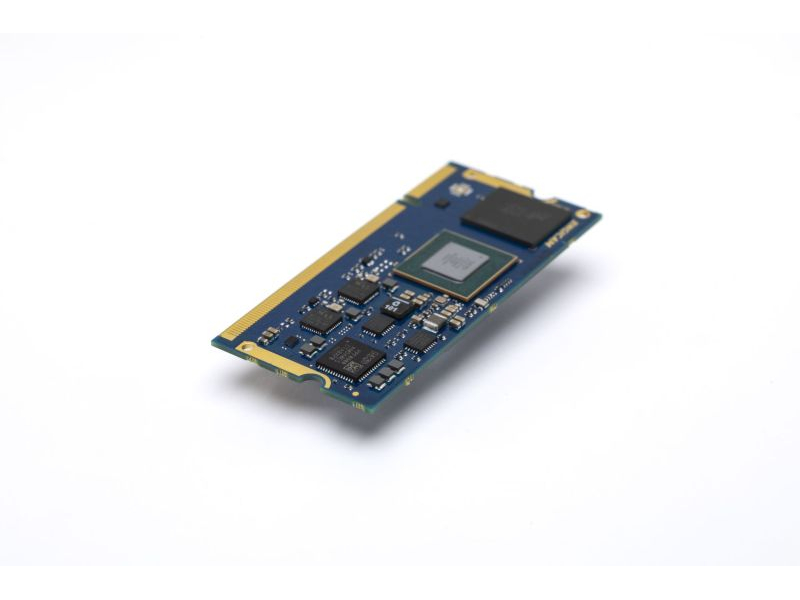

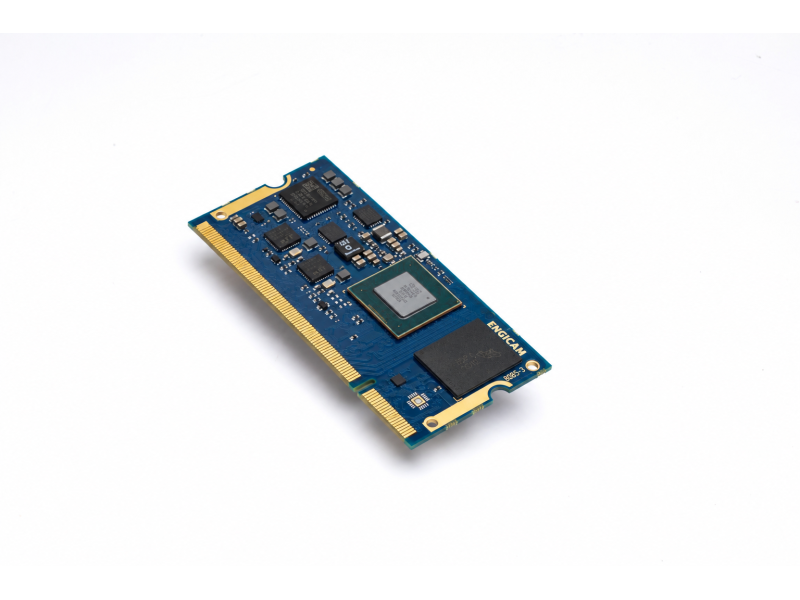

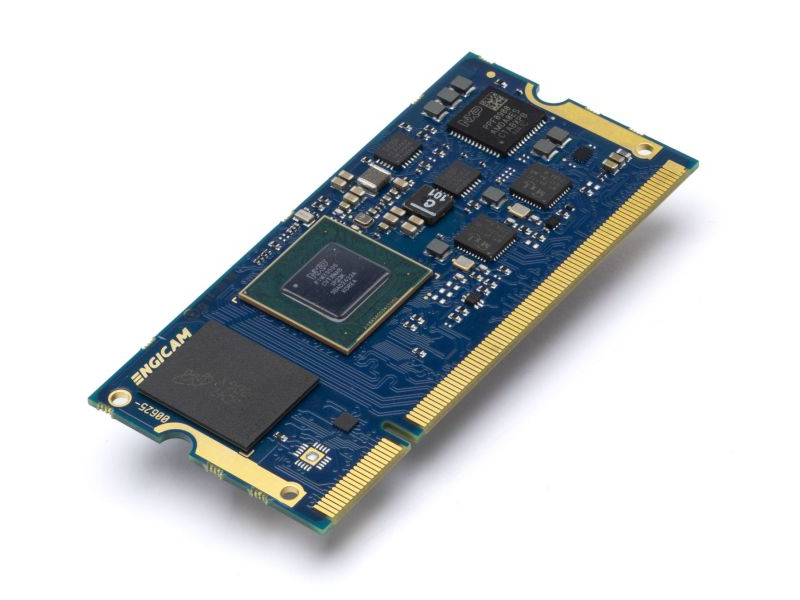

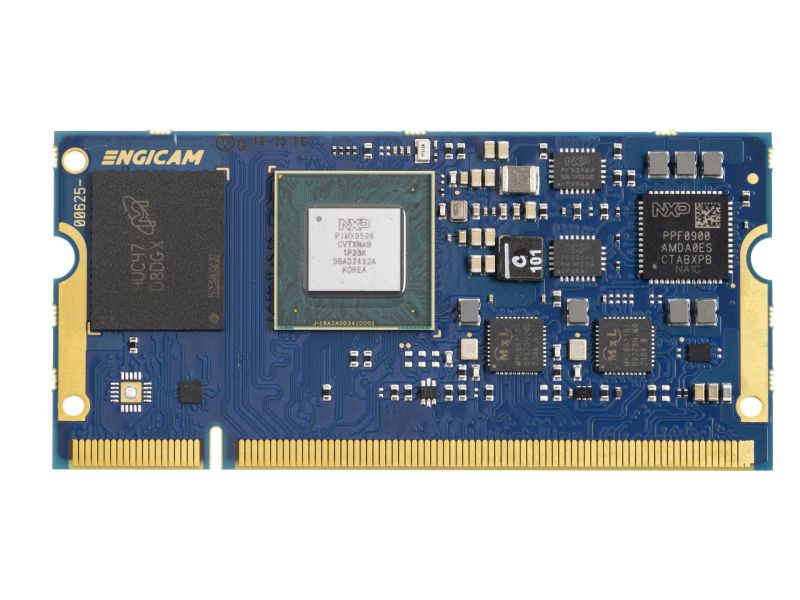

i.Core MX95
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | i.MX95 |
|---|---|
| CPU #2 | Manufacturer: NXP |
| CPU #3 | NPU: ja |
| CPU #4 | VPU: ja |
| CPU #5 | GPU: ja |
| Cores | ARM |
| Cores #2 | Up to6x Arm Cortex-A551x Arm Cortex-M71x Arm Cortex-M33 |
| Memory | LPDDR5@4200MTs |
| Memory #2 | up to 16GB |
| Graphics & AI | NXP eIQ® Neutron 2.0 TOPS NPU Arm Mali-G310 3D GPU supporting 50 GFLOPs FP32. OpenGL ® ES 3.2 Vulkan ® 1.3 OpenCL 3.0 |
| Video Processing Unit Capabilities | 4Kp60 H.265/H.264 decode and encode,1x JPEG Encoder,1x JPEG Decoder |
| Mass Storage | Starting from 4 GB eMMC soldered onboard |
| Networking | 2x 1Gb Ethernet |
| USB | 1x USB2 |
| USB #2 | 1x USB3 |
| PCIe | 1 |
| PCIe #2 | PCIe interface Gen3/1-lane |
| Audio | I2S interface, SAI Interface (up to 2) |
| Peripheral Interfaces | 4x UART (Up to 8)2x I2C (Up to 6)2x SPI (Up to 7) JTAG2x CAN (Up to 5)2x SDIO GPIOs MIPI DSI/CSI - 4 lane1x RGMII option |
| Power Supply | single 5V |
| Operating Temperature | -40° up to 85° |
| Dimensions | 67.6 x 32 mm |
| Product availability | 2039 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| i.Core_MX95_Flyer.pdf | 310.19 KB | download – i.Core_MX95_Flyer.pdf |
