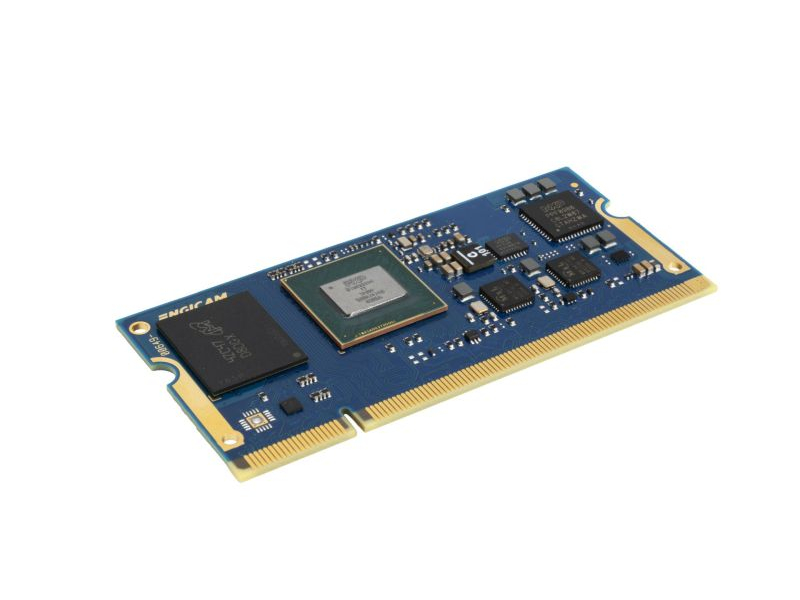

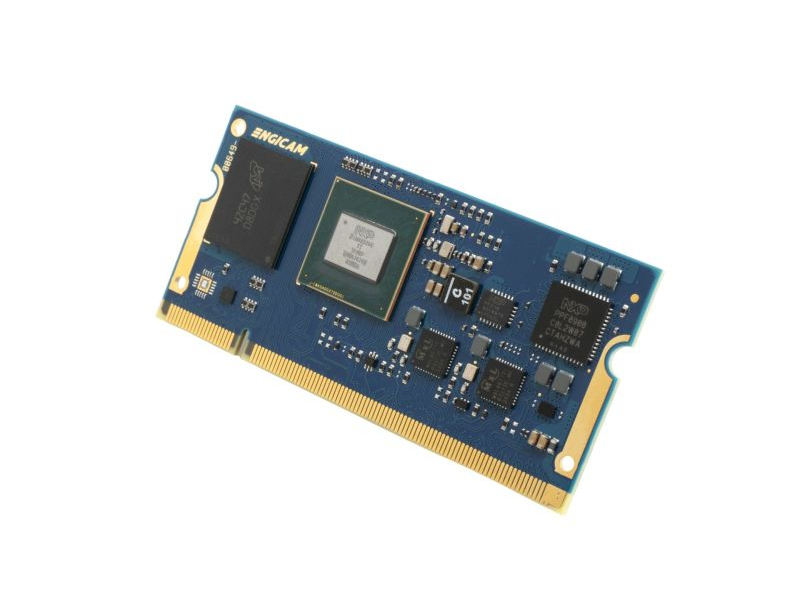

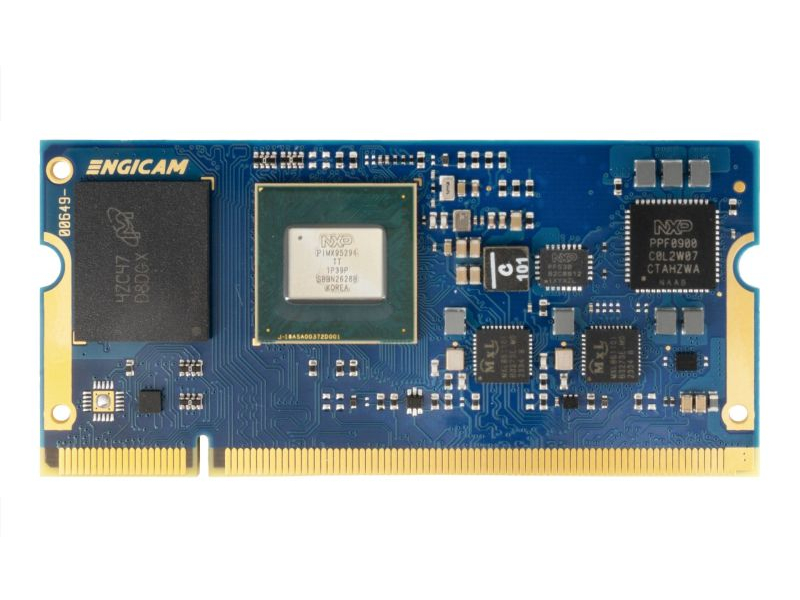

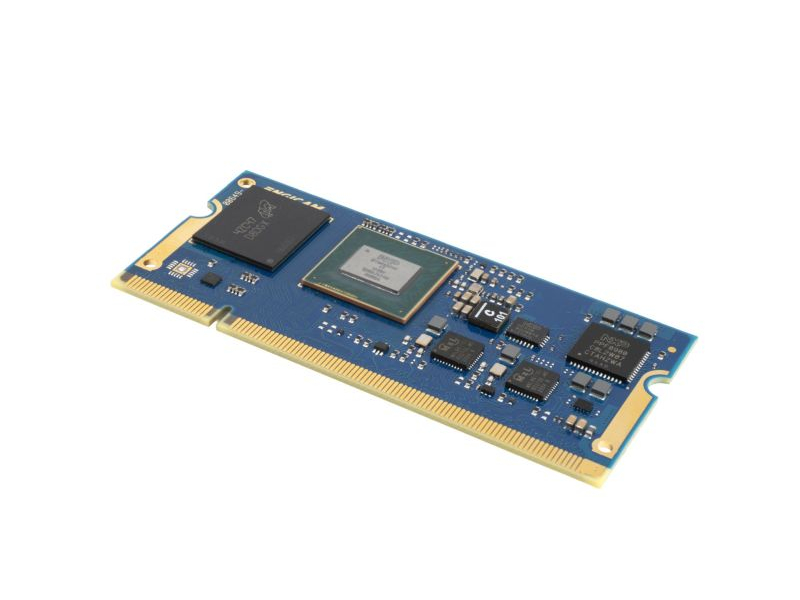

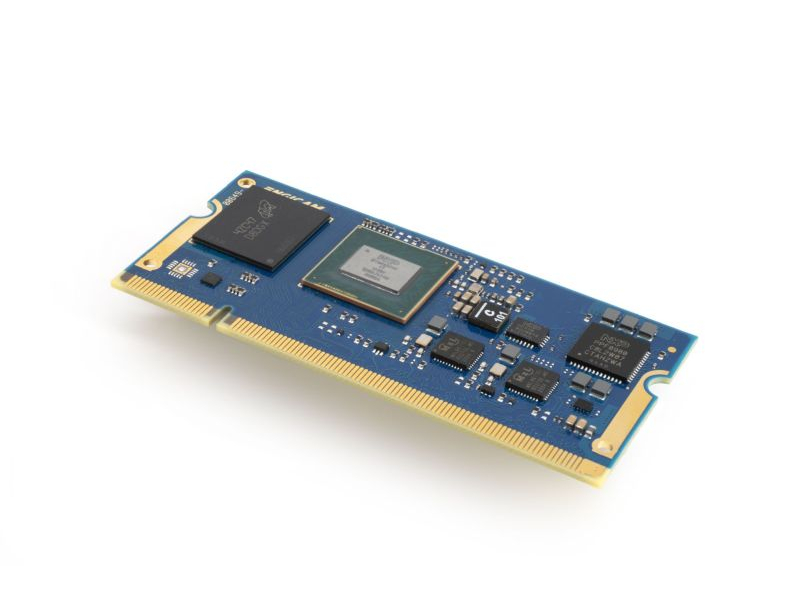

i.Core MX952
Access technical documents, software, and support resources.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Manufacturer NXP |
|---|---|
| CPU #2 | Processor Family i.MX952 |
| CPU #3 | Architecture ARM |
| CPU #4 | Cores 4 |
| CPU #5 | Cores description4x Arm Cortex-A55 |
| CPU #6 | Frequency Up to to 1.7 GHz |
| CPU #7 | Integrated MCU Cortex-M7, Cortex-M33 |
| GRAPHICS | GPU Arm MAli-G310 |
| GRAPHICS #2 | Features Arm MAli-G310 3D GPU supporting 50 GFLOPs FP32, OpenGL ® ES 3.2, Vulkan ® 1.3, OpenCL 3.0 |
| GRAPHICS #3 | Other 2D GPU |
| USB | USB2 2 |
| PERIPHERAL INTERFACES | UART 4 |
| PERIPHERAL INTERFACES #2 | I2C 4 |
| PERIPHERAL INTERFACES #3 | SPI 1 |
| PERIPHERAL INTERFACES #4 | CAN 2 |
| PERIPHERAL INTERFACES #5 | SDIO 2 |
| PERIPHERAL INTERFACES #6 | GPIOs: ja |
| PERIPHERAL INTERFACES #7 | Audio SAI interface |
| PERIPHERAL INTERFACES #8 | Other1x LPSPI, Jtag, Tamper(option) |
| MEMORY | RAM Type LPDDR5 |
| MEMORY #2 | RAM Frequency up to 6000 MT/s |
| MEMORY #3 | RAM Size Up to 16 GB |
| MEMORY #4 | STORAGE on board eMMC |
| VIDEO | LVDS Channels Dual |
| VIDEO #2 | MIPI-DSI1x 4-lane |
| VIDEO #3 | MIPI-CSI1x 4-lane or2x 2-lane |
| PCIe | Generation Gen3 |
| PCIe #2 | Number 1 |
| PCIe #3 | Aggregations 1-lane |
| OPERATING SYSTEM | Linux Yocto |
| OPERATING SYSTEM #2 | Android: ja |
| AI ACCELERATOR | NPU Description NXP eIQ® Neutron |
| AI ACCELERATOR #2 | TOTAL (CPU/GPU/NPU) 2.0 eTOPS |
| VIDEO PROCESSING | Decoder Support 4Kp60 H.265/H.264 decode,1x JPEG |
| VIDEO PROCESSING #2 | Encoder Support 4Kp30 H.264 encode,1x JPEG |
| NETWORKING | LAN PHY2x Gigabit Ethernet |
| NETWORKING #2 | MAC Interface1x RGMII option |
| GENERAL | Form Factor EDIMM 2.0 |
| GENERAL #2 | Dimensions 67.6 x 32 mm |
| GENERAL #3 | Power Supply single 5V |
| GENERAL #4 | Temperatura operativa -40°C up to +125°C |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| i.Core_MX952_Flyer.pdf | 284.08 KB | download – i.Core_MX952_Flyer.pdf |
