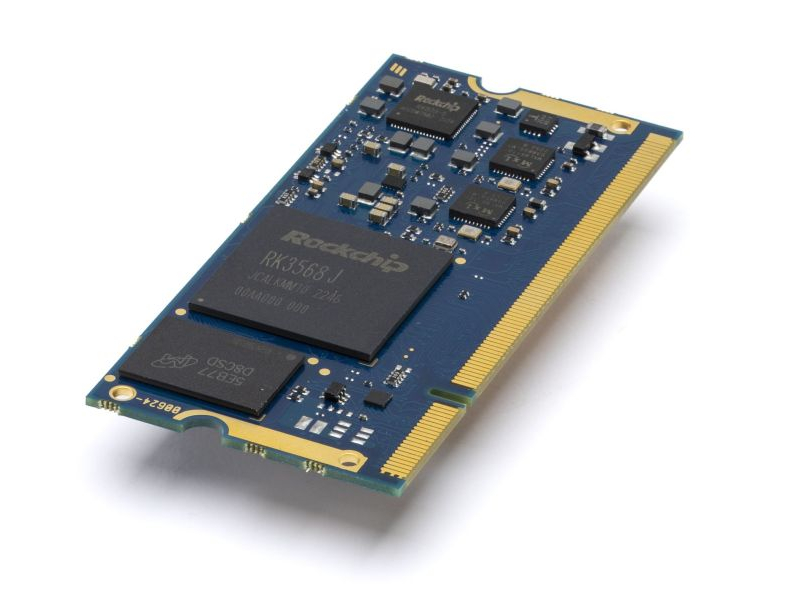

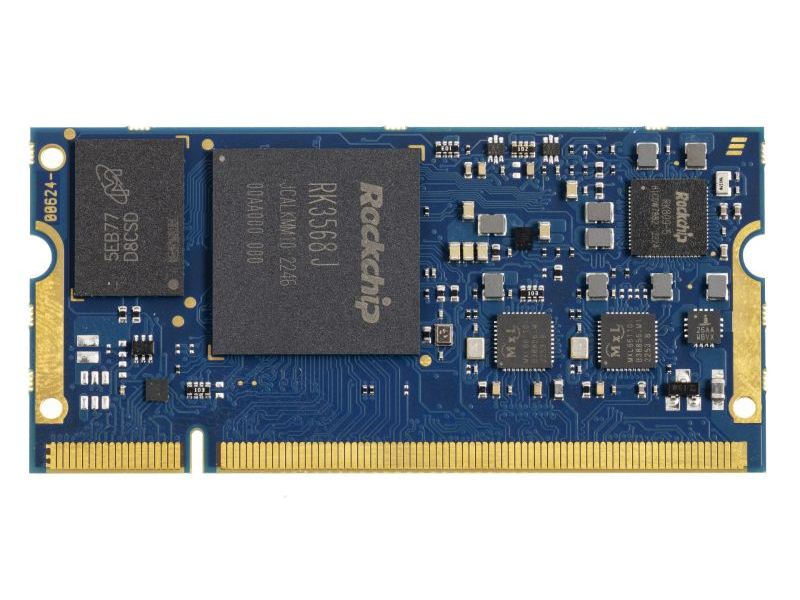

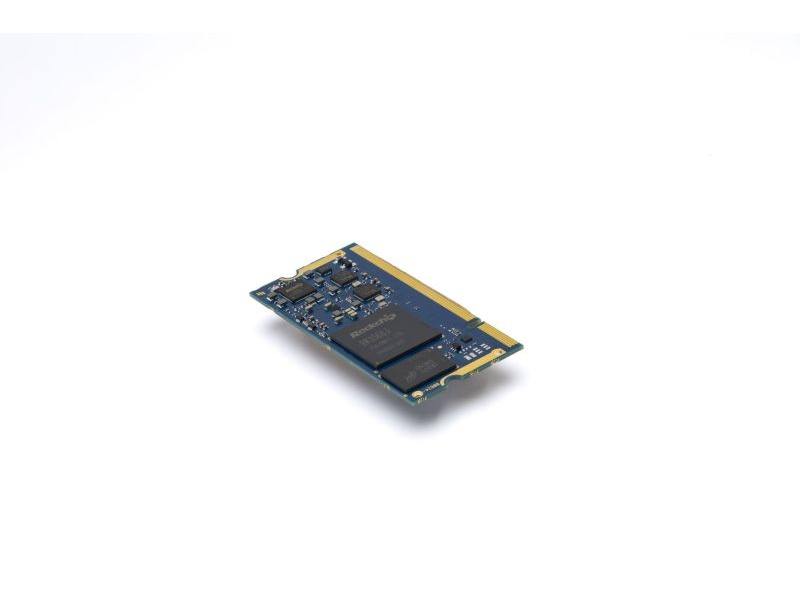

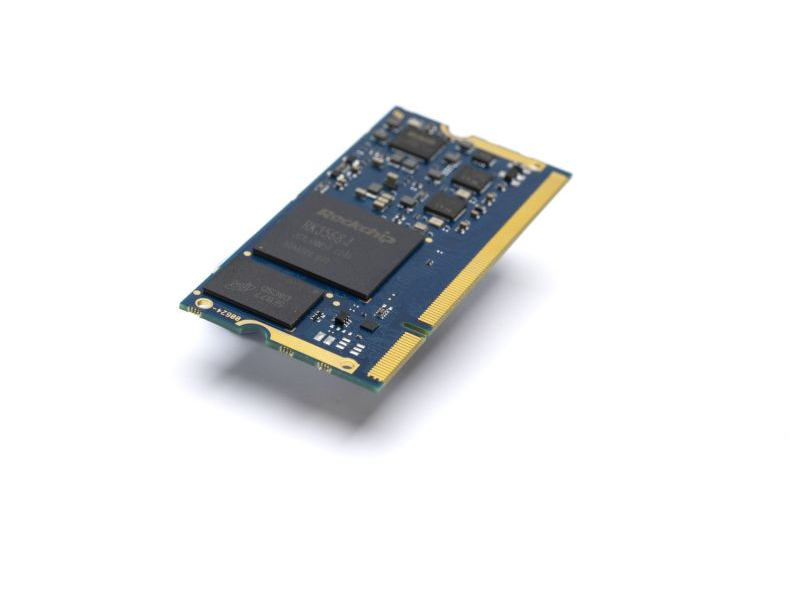

i.Core RK3568
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | RK3568 |
|---|---|
| CPU #2 | Manufacturer: Rockchip |
| CPU #3 | NPU: ja |
| CPU #4 | GPU: ja |
| Cores | ARM |
| Cores #2 | 4x Arm®Cortex®-A55 |
| Memory | LPDDR4@3200MTs |
| Memory #2 | up to 8GB |
| Graphics & AI | 1 TOPS @INT8 NPU 2D graphics, 3D graphics and General Purpose computing on GPU. The Mali-G52-2EE GPU supports these compute API standards: -OpenCL 2.0 Full Profile -OpenGL ES 1.1, 2.0, and 3.2 -Vulkan 1.0 and 1.1. |
| Video Processing Unit Capabilities | HEVC/H.265, VP9, AV1 HW decoding, up to 8k @60 AVC/H.264, HEVC/H.265 encoding |
| Mass Storage | Starting from 4GB eMMC soldered onboard |
| Networking | 2x 1Gb Ethernet |
| USB | 1x OTG |
| USB #2 | 1x USB2 |
| PCIe | 1 |
| PCIe #2 | PCIe interface Gen2.1/1-lane |
| Audio | Build in I2S (on PMIC RK809) |
| Peripheral Interfaces | 4x UART (Up to 8)2x I2C (Up to 5)1x SPI (Up to 2)2x CAN (Up to 3)2 x I2S (Up to 3)2x SDIO GPIOs MIPI-CSI – 4 lane RGMII option |
| Power Supply | single 5V |
| Operating Temperature | -40° up to 85° |
| Dimensions | 67.6 x 32 mm |
| Product availability | 2034 |
