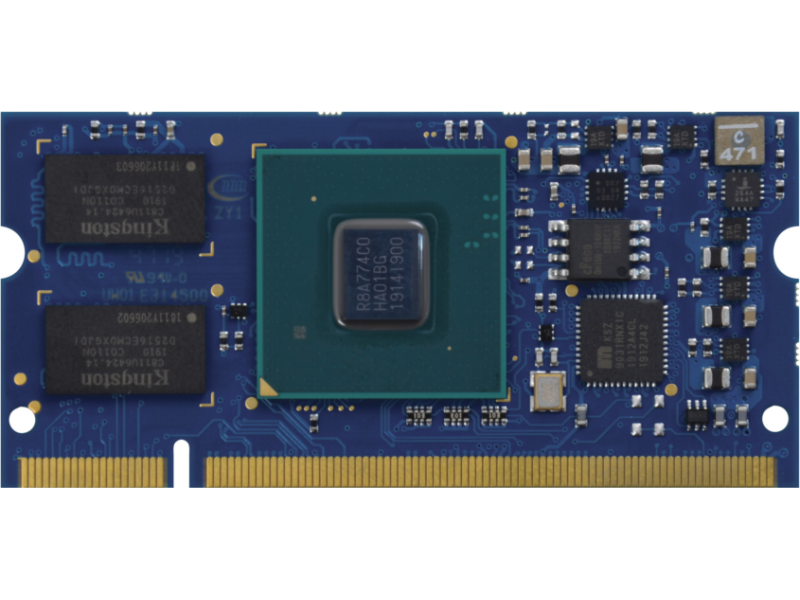

i.Core RZ/G2E
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | RZ/G2E |
|---|---|
| CPU #2 | Manufacturer: Renesas |
| CPU #3 | GPU: ja |
| Cores | ARM |
| Cores #2 | Dual-Core ARM Cortex-A53 @ 1.2GHz L1, L2 Parity/ECC |
| Cores #3 | 2 cores |
| Memory | DDR3L@1856MTs |
| Memory #2 | up to 1GB |
| Graphics & AI | PowerVR GE8300 @ 600MHz Ultra HD deep color GPU Support APIs: OpenGL ES 3.1, (OpenCL 1.2 EP) |
| Video Interfaces | LVDS |
| Video Processing Unit Capabilities | 1080p60 HEVC (h.265, h.264/AVC) dec; 1080p60 (h.264/AVC) enc |
| Mass Storage | eMMC 4 GB expandible |
| Mass Storage #2 | EMMC |
| Networking | 1x 1Gb Ethernet |
| USB | 1x USB2 |
| USB #2 | 1x USB3 |
| PCIe | 1 |
| PCIe #2 | PCIe 1 lanex 1 channel |
| Audio | I2S Interface |
| Peripheral Interfaces | 4x UART2x I2C (Up to 5)2x CAN2x SPI2x SDIO/SDHC TPM 2.0 option available SPI ROM for boot MIPI-CSI - 2 lanes |
| Power Supply | single 5V |
| Operating System | Linux |
| Development System | Yocto |
| Operating Temperature | -40° up to 85° |
| Dimensions | EDIMM 2.0 |
| Dimensions #2 | 67.6 x 32 mm |
| Product availability | 2035 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| i.Core_RZG2E_Flyer.pdf | 243.80 KB | download – i.Core_RZG2E_Flyer.pdf |
