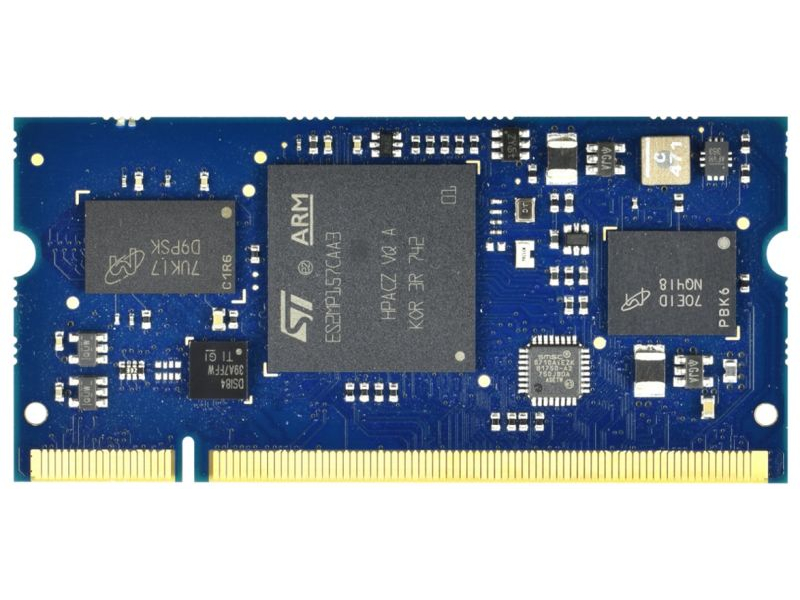

i.Core STM32MP15
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | STM32MP15x |
|---|---|
| CPU #2 | Manufacturer: ST |
| CPU #3 | VPU: ja |
| CPU #4 | GPU: ja |
| Cores | ARM |
| Cores #2 | Dual-Core Cortex-A7@650/800MHz and Cortex M4@200MHz |
| Cores #3 | 2 cores |
| Memory | DDR3L@1066MTs |
| Memory #2 | 512MB up to 1GB |
| Graphics & AI | 3D GPU: Vivante® - OpenGL® ES 2.0 – Up to 26 Mtriangle/s, 133 Mpixel/s LCD-TFT controller, up to 24-bit // RGB888 – up to WXGA (1366 × 768) @60 fps – Two layers with programmable colour LUT MIPI® DSI 2 data lanes up to 1 GHz each |
| Video Interfaces | DSI, LVDS, Parallel RGB |
| Video Processing Unit Capabilities | Up to WXGA (1366x768) @60fps |
| Mass Storage | 512MB expandible Nand Flash, 4GB eMMC |
| Mass Storage #2 | EMMC, NAND |
| Networking | 1x 10/100 Ethernet |
| USB | 1x OTG |
| USB #2 | 2x USB2 |
| PCIe | NO |
| Audio | I2S i/f |
| Peripheral Interfaces | 2x I2C (Up to 5) (Up to6x SPI)3x UART (Up to 8) PWM2x CAN Bus (+ up to 2 FD-CAN)2x SDIO i/f JTAG i/f |
| Power Supply | single 5V |
| Operating System | Linux |
| Development System | Yocto |
| Operating Temperature | -40° up to 85° |
| Dimensions | EDIMM 2.0 |
| Dimensions #2 | 67.6 x 32 mm |
| Product availability | 2036 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| i.Core_STM32MP1_Flyer.pdf | 334.32 KB | download – i.Core_STM32MP1_Flyer.pdf |
