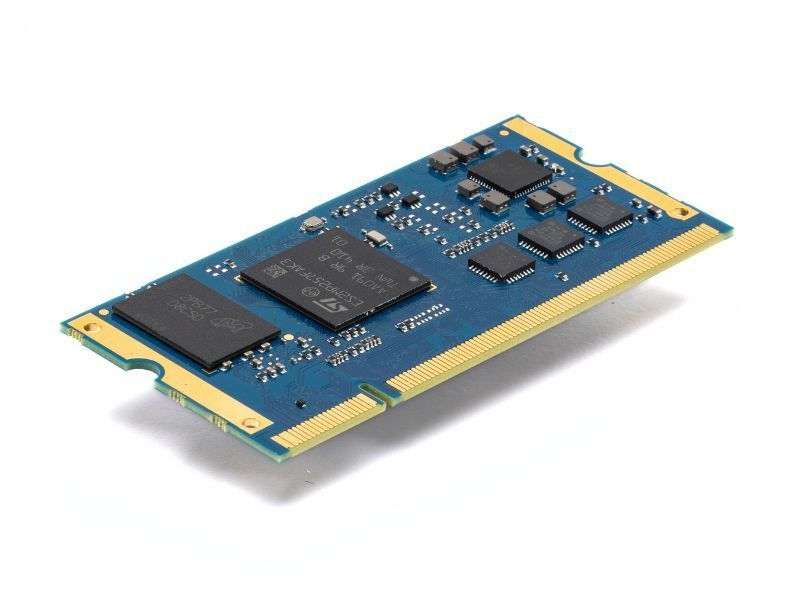

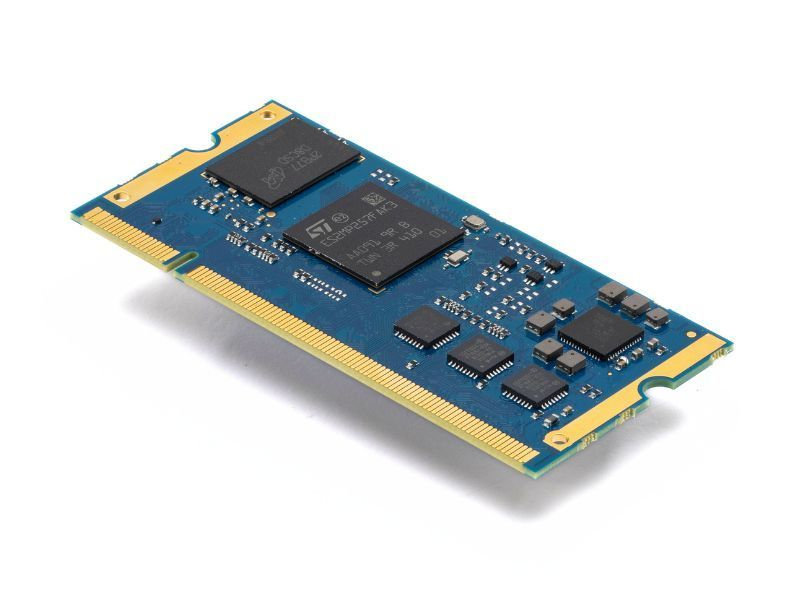

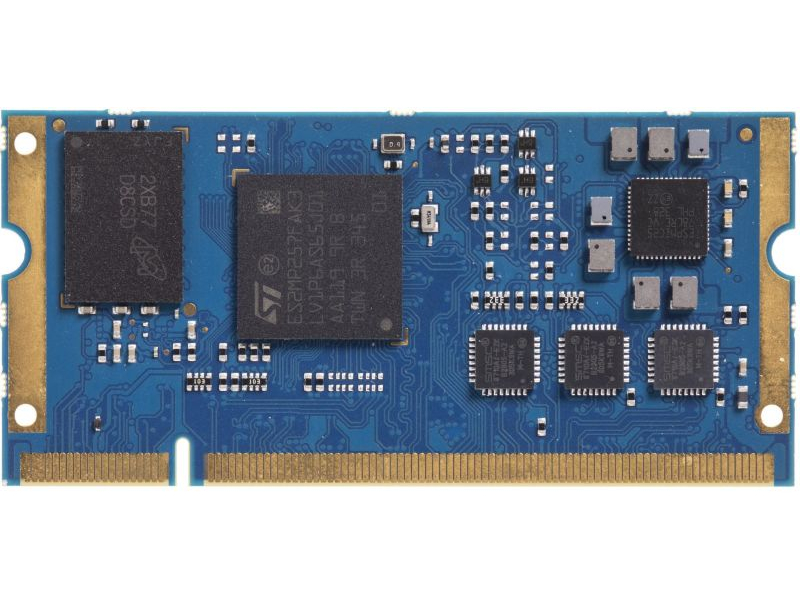

i.Core STM32MP2
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | STM32MP2x |
|---|---|
| CPU #2 | Manufacturer: ST |
| CPU #3 | NPU: ja |
| CPU #4 | VPU: ja |
| CPU #5 | GPU: ja |
| Cores | ARM |
| Cores #2 | Single or dual Arm® Cortex- A35 @1.5 GHz, Arm® Cortex-M33 @400 MHz |
| Cores #3 | 1, 2 cores |
| Memory | LPDDR4@2400MTs |
| Memory #2 | 2GB up to 4GB |
| Graphics & AI | 1.35 TOPS NPU 3D GPU and NPU: VeriSilicon® GC8000UL Up to 900 MHz TensorFlowLite - ONNX - Linux NN OpenGL® ES 3.2.8 – Vulkan 1.2 OpenCL™ 3.0, OpenVX™ 1.3 Up to 150 Mtriangle/s, 900 Mpixel/s |
| Video Interfaces | DSI, LVDS |
| Video Processing Unit Capabilities | 1080p60 HEVC (h.264, VP8) dec 1080p60 HEVC (h.264, VP8) enc |
| Mass Storage | Starting from 8GB eMMC drive soldered on-board |
| Mass Storage #2 | EMMC |
| Networking | 3x 10/100 Ethernet |
| USB | 1x USB2 |
| PCIe | 1 |
| PCIe #2 | PCIe interface Gen2/1-lane |
| Audio | I2S interface |
| Peripheral Interfaces | 3x USART (Up to 4)1x UART (Up to 4) (Up to1x LPUART)2x I2C (Up to 8)2x SPI (Up to 8)3x FDCAN Bus PWM2x SDIO i/f JTAG i/f GPIOs |
| Power Supply | single 5V |
| Operating System | Linux |
| Development System | Yocto |
| Operating Temperature | -40° up to 85° |
| Dimensions | EDIMM 2.0 |
| Dimensions #2 | 67.6 x 32 mm |
| Product availability | 2036 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| i.Core_STM32MP2_Flyer.pdf | 257.48 KB | download – i.Core_STM32MP2_Flyer.pdf |
