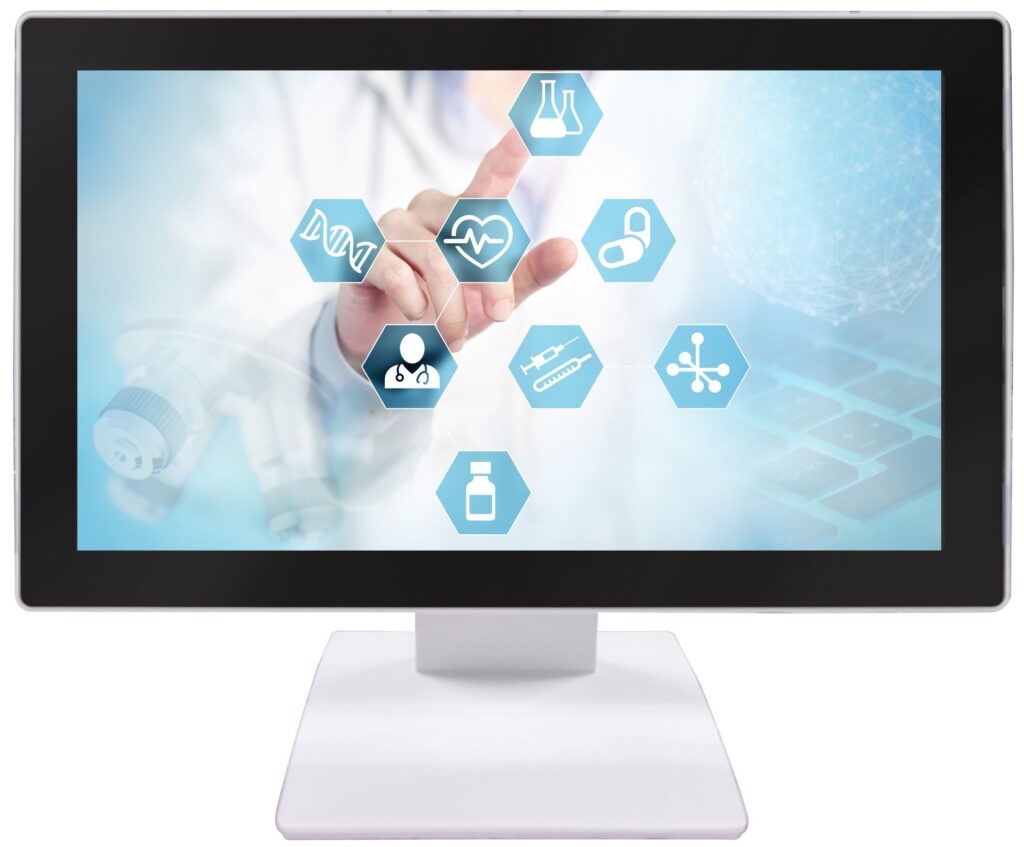

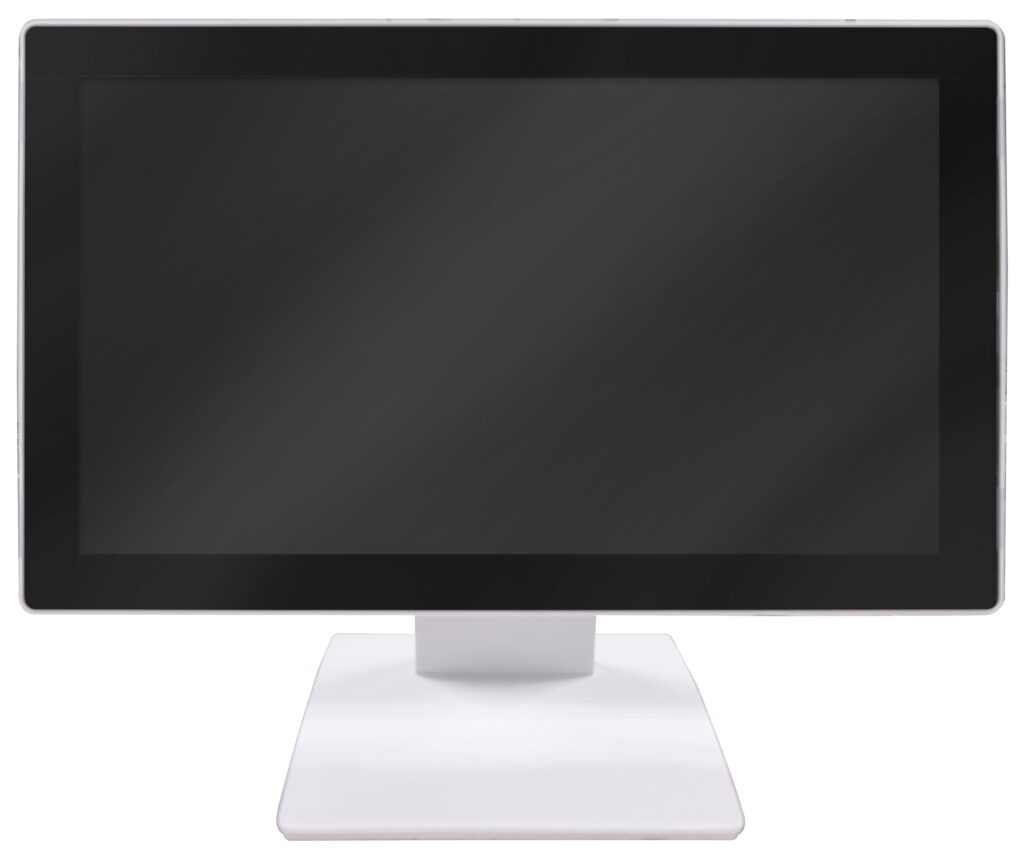

15.6" medical grade PCAP touch screen monitor, 1920x1080 resolution, 16:9 aspect ratio, EN 60601-1-2: 2015 (4th edition)/FCC/UL certified, IP22/IPX1 and DICOM compatibility, optional Anti-Glare (AG) or Anti-Reflection (AR), VESA mounting
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| LCD Size | 15.6'' |
|---|---|
| Resolution | 1920 x 1080 pixels |
| Brightness | 500 nits |
| Contrast Ratio | 1000:1 |
| Backlight | LED type |
| Touch Screen | MVA Projective capacitive touch (USB interface) |
| Viewing Angle | 178°(H) / 178°(V) |
| Color Support | 16.2M colors (RGB 6-bits + FRC) |
| Active Screen Area | 344.16 x 193.59 mm |
| Support Resolution | 640 x 480,800 x 600,1024 x 768,1280 x 1024,1360 x 768,1680 x 1050,1920 x 1080 |
| Display | -1x DVI -1x HDMI 1.4 -1x Display Port 1.2 |
| USB | USB Type B (Touch) |
| Power Connector | DC Jack (2.5mm lockable) |
| Audio | 2.5W (8Ω) speaker x 2(Optional) |
| Power Supply | External power adapter, AC IN: 100 - 240V; DC OUT: 12V / 5A |
| Power Consumption | Max. 14W |
| Temperature Range | Operating : 5 - 40°C / Storage : -10 - 60°C |
| Humidity Range | Operating : 20 - 80% / Storage : 10 - 90% |
| Dimensions | - With stand: 392.96 (W) x 311.63 (H) x 159.96 (D) mm - Without stand: 392.96 (W) x 242.36 (H) x 48 (D) mm - Packaging: 508mm(W) x 394mm(H) x 196mm(D) |
| Weight | Net Weight: 3.54 kg Gross Weight: 5.6 kg |

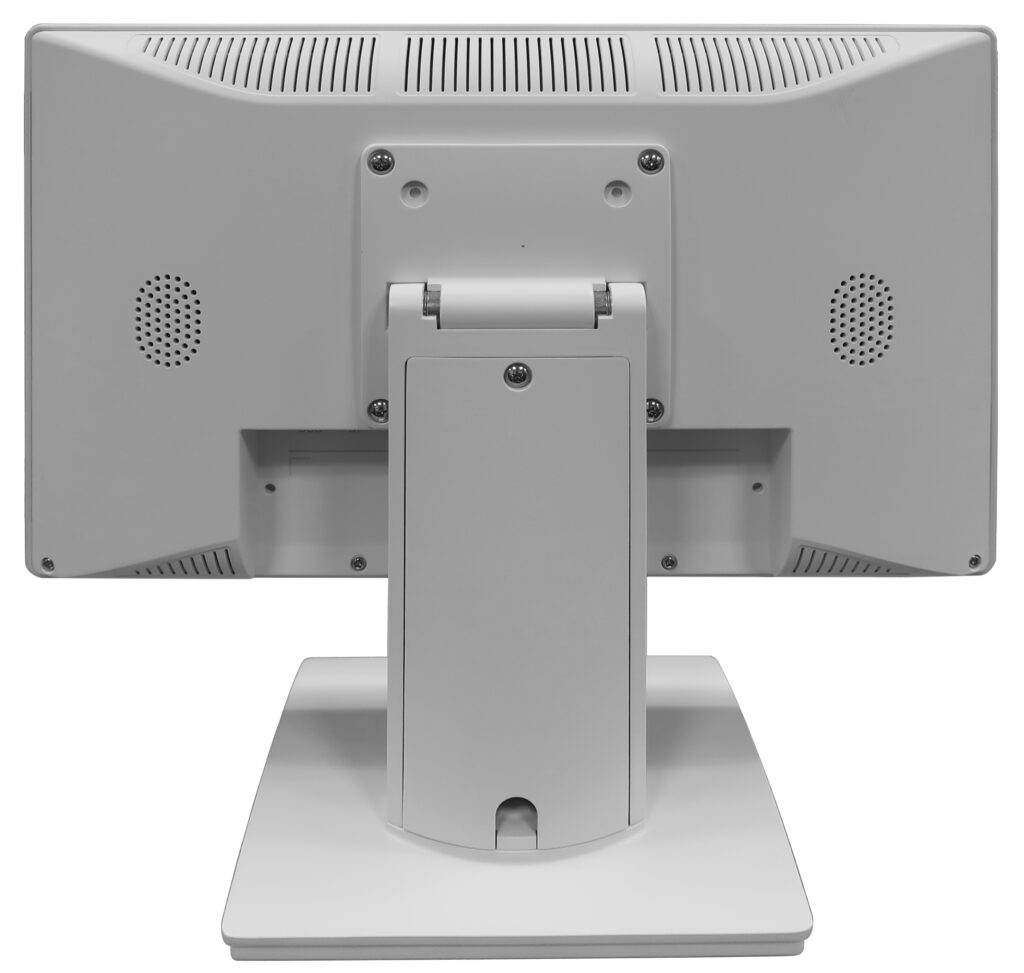

| VESA Mount | 100 x 100 mm |
| Certification | EN 60601-1-2 / FCC Part 18 / RoHS / WEEE / REACH |
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| 08-53Q156-0002 | MEDS-M1560 | 15.6" FHD medical LCD monitor w/ PCAP Touch. DICOM. IPX1. Stand. 500 nits. | add to list – MEDS-M1560 |
