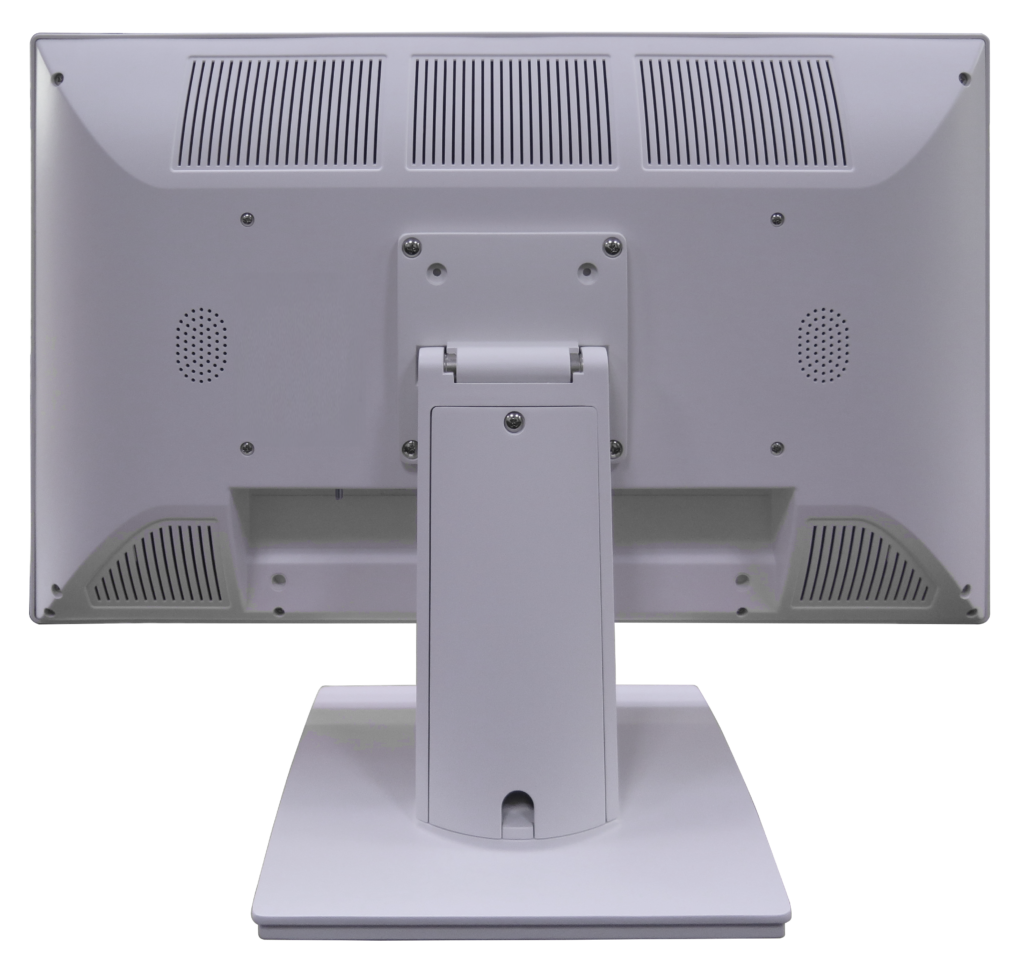

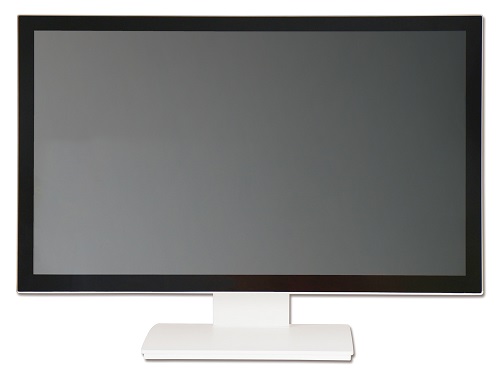

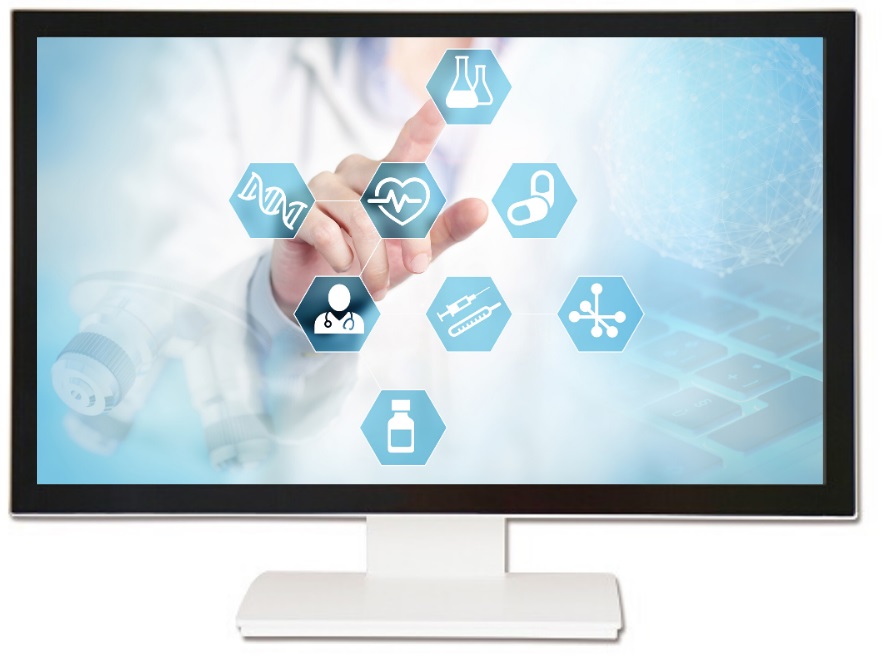

21.5" medical grade PCAP touch screen monitor, 1920x1080 resolution, 16:9 aspect ratio, EN 60601-1-2: 2015 (4th edition)/FCC/UL certified, IP22/IPX1 and DICOM compatibility, optional Anti-Glare (AG) or Anti-Reflection (AR) coating, VESA mounting
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Application | Medical |
|---|---|
| Type | IPS |
| Native Resolution | 1920x1080 |
| Active Screen Size | 21.5" |
| Viewing Angle | 178°(H) / 178°(V) |
| Brightness(nits) | 350 nits |
| Contrast Ratio | 1000:1 |
| Display Colors(bits) | 16.7M color (RGB - 8 bit) |
| Display Interface | -1x DVI-D -1x HDMI 1.4 -1x DisplayPort 1.2 |
| Audio | - 3.5 mm Audio in -2x Speakers |
| Touch | P-CAP touch module (USB Interface) |
| Power | 22.3W Max Power Consumption AC 100 ~ 240V |
| Dimensions | - With stand: 525.3 (W) x 378 (H) x 180 (D) mm - Without stand: 525.3 (W) x 320.3 (H) x 55.9 (D) mm - Packaging: 575 (W) x 475 (H) x 259 (D) mm |
| VESA Mounting (mm) | 100x100 |
| Operating Temperature | 5 ~ 40°C |
| Operating Humidity | 20 ~ 80% |
| Certification | IEC 60601 / ES60601 (UL 60601 ver 4.0) |
| Net Weight | 5.9 kg |
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| 08-53Q210-1002 | MEDS-M2100 | 21.5" FHD medical LCD monitor w/ PCAP Touch. DICOM. IPX1. Stand. 350 nits. | add to list – MEDS-M2100 |
