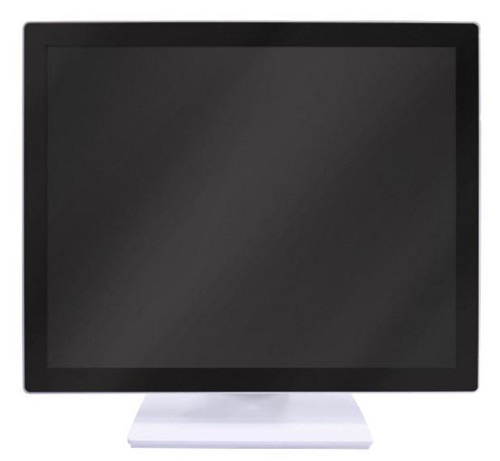

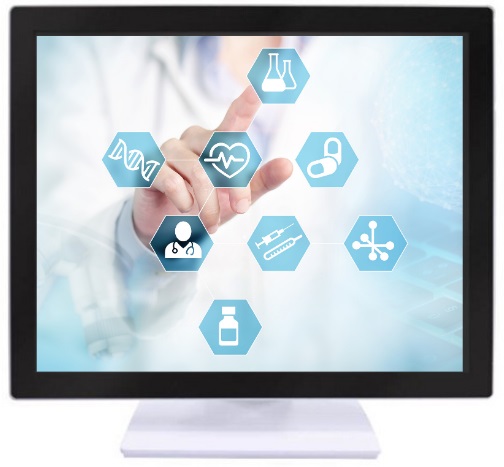

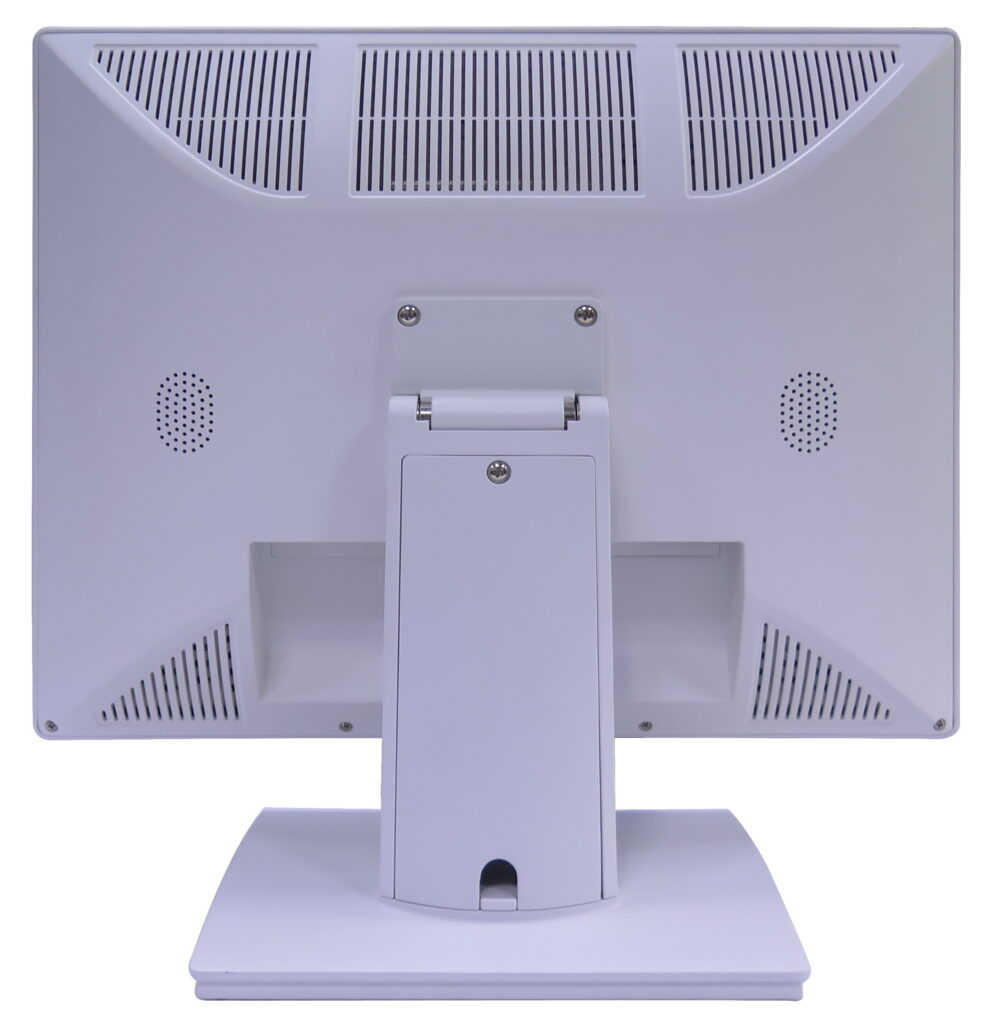

19" medical grade PCAP touch screen monitor, 1280x1024 resolution, 5:4 aspect ratio, EN 60601-1-2: 2015 (4th edition)/FCC/UL certified, IP22/IPX1 and DICOM compatibility, optional Anti-Glare (AG) or Anti-Reflection (AR) coating, VESA mounting
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| LCD Size | 19' |
|---|---|
| Resolution | 1280 x 1024 pixels |
| Brightness | 300 nits |
| Contrast Ratio | 1000:1 |
| Backlight | LED type |
| Touch Screen | MVA Projective capacitive touch (USB interface) |
| Viewing Angle | 178°(H) / 178°(V) |
| Color Support | 16.7M colors (RGB 8-bits) |
| Active Screen Area | 376.32 x 301.06 mm |
| Support Resolution | 640 x 350,720 x 400,640 x 480,800 x 600,1024 x 768,1280 x 1024 |
| Display | -1x DVI-D -1x HDMI 1.4 -1x Display Port 1.2 |
| USB | USB Type B (Touch) |
| Power Connector | DC Jack (φ= 2.5 mm lockable) |
| Audio | - 3.5 mm Audio in - 2.5W (8Ω) speaker x 2 |
| Power Supply | External power adapter, AC IN: 100 - 240V; DC OUT: 12V / 5A |
| Power Consumption | Max. 23.5 W |
| Temperature Range | Operating : 5 - 40°C / Storage : -10 - 60°C |
| Humidity Range | Operating : 20 - 80% / Storage : 10 - 90% |
| Dimensions | - With stand: 426.8 (W) x 393.9 (H) x 179.97 (D) mm - Without stand : 426.8 (W) x 351.8 (H) x 62.9 (D) mm - Packaging: 480 (W) x 500 (H) x 230 (D) mm |
| Weight | Net Weight: 5.8 kg Gross Weight: 8.2 kg |
| VESA Mount | 75 x 75 mm |
| Certification | - EN 60601-1-2: 2015 (4th Edition) - 47 CFR FCC Part 18 - IEC 60601-1-6:2010/AMD1:2013 - IEC 60601-1:2005/AMD1:2012 - RoHS, WEEE, REACH |
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| 08-53Q190-0002 | MEDS-M1900 | 19" medical LCD monitor w/ PCAP Touch. DICOM. IPX1. Stand. 300 nits. | add to list – MEDS-M1900 |
