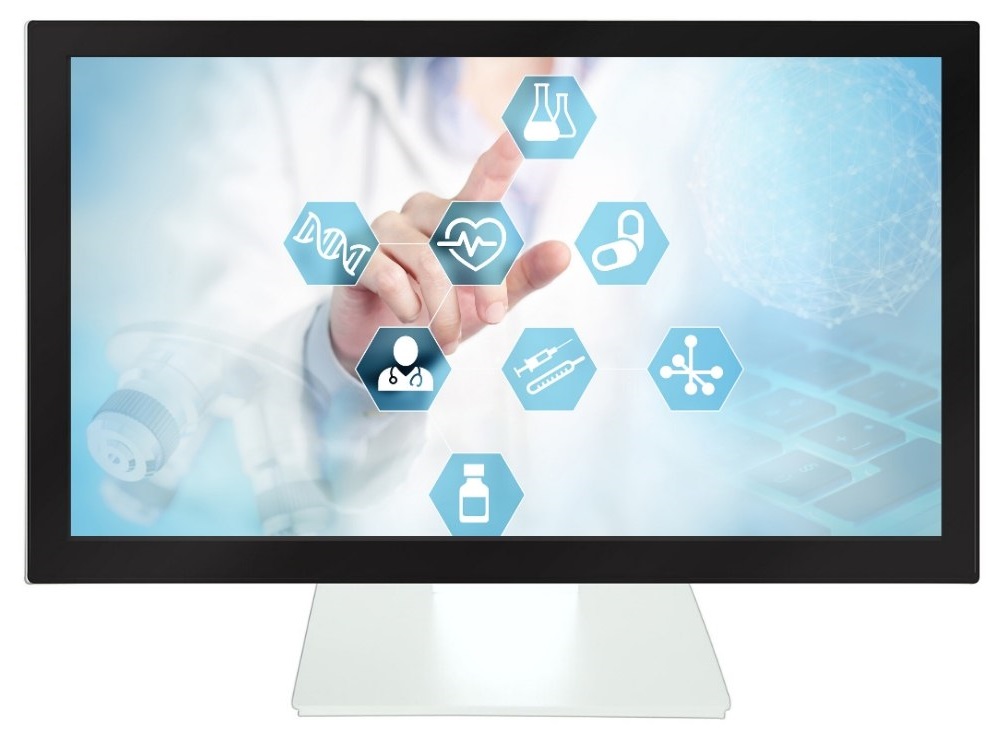

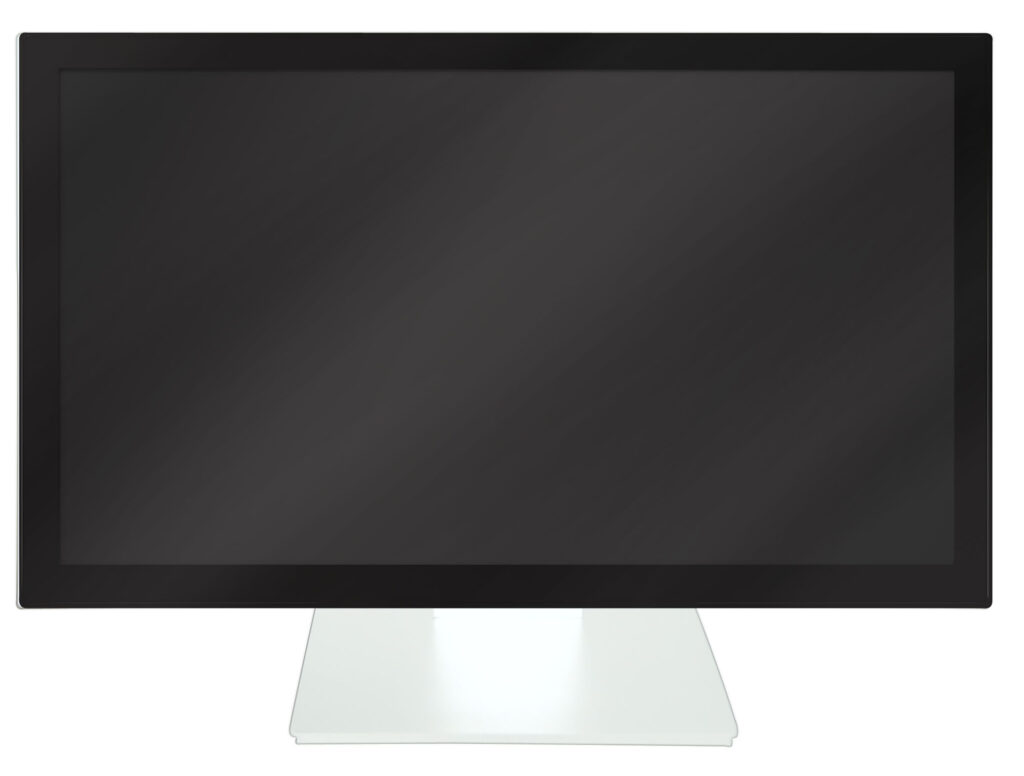

27" medical grade PCAP touch screen monitor, 2560x1440 resolution, 16:9 aspect ratio, EN 60601-1-2: 2015 (4th edition)/FCC/UL certified, IP22/IPX1 and DICOM compatibility, optional Anti-Glare (AG) or Anti-Reflection (AR) coating, VESA mounting
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Application | Medical |
|---|---|
| Type | IPS |
| Native Resolution | 2560x1440 |
| Active Screen Size | 27" |
| Viewing Angle | 178°(H) / 178°(V) |
| Brightness(nits) | 350 nits |
| Contrast Ratio | 1000:1 |
| Display Colors(bits) | 1.07B colors (RGB - 8bit + FRC) |
| Input Terminal | DVI/HDMI/VGA/DP in & out/AUDIO/USB Type B |
| Audio | Optional: 10 W (8Ω) speaker x2 |
| Touch | Optional: P-CAP touch module (USB interface) |
| Power | External Power Adapter: AC IN:100~240V; DC OUT: 12V/5A Internal Power Adapter: AC IN:100~240V; <2.0A, 50-60Hz 54.35 W Max |
| Dimensions | - With stand: 647.86 (W) x 469.23 (H) x 249.86 (D) mm - Without stand: 647.86 (W) x 388.56 (H) x 69.9 (D) mm - Packaging: 730 (W) x 560 (H) x 300 (D) mm |

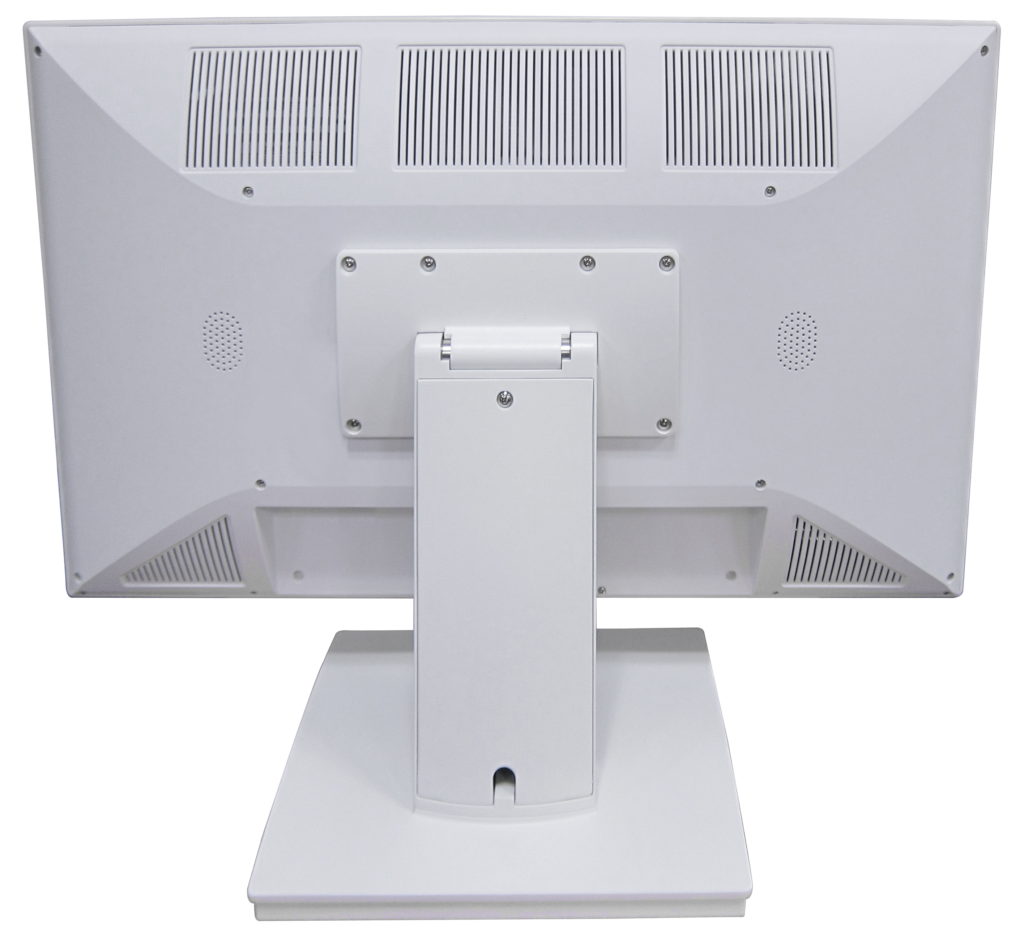

| VESA Mounting (mm) | 100x100 / 100x200 |
| Operating Temperature | 5 ~ 40°C |
| Operating Humidity | 10 ~ 90% |
| Certification | IEC/EN/UL 60601-1-2 (4th Edition) / 47CFR FCC Part 18 |
| Features | Gamma Selection (1.8/2.0/2.2/DICOM) |
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| 08-53Q270-1002 | MEDS-M2700 | 27" 2KHD medical LCD monitor w/ PCAP Touch. DICOM. IPX1. Stand. 350 nits. | add to list – MEDS-M2700 |
