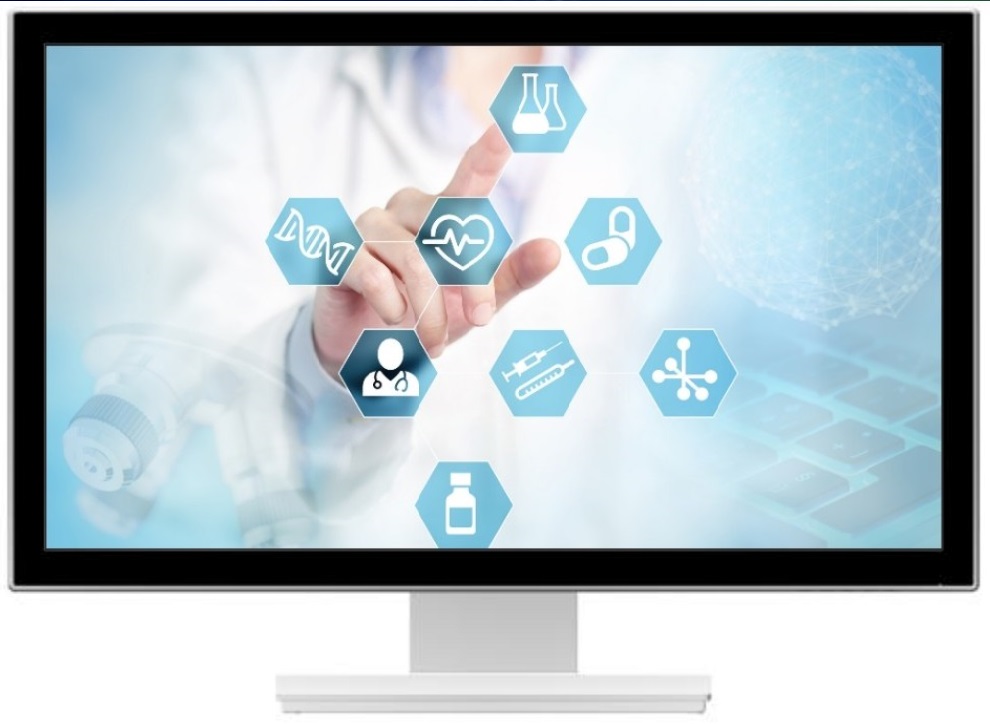

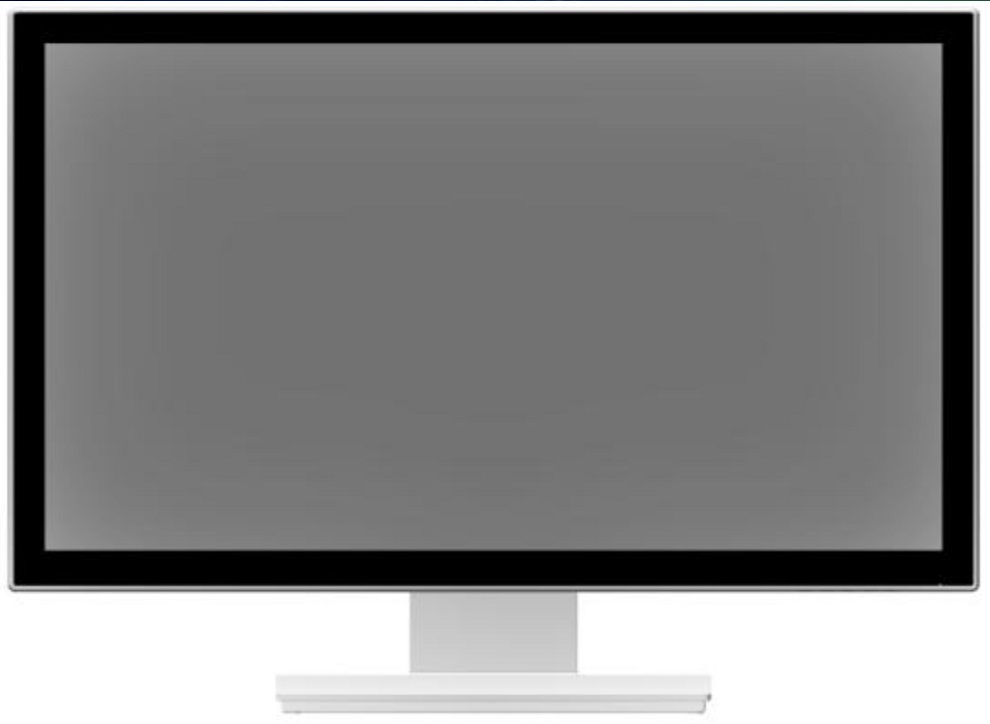

27" medical grade PCAP touch screen monitor, 1920x1080 resolution, 16:9 aspect ratio, IEC 60601-1-2:2014 + A1:2020 (Edition 4.1) EMC/IEC 60601-1:2005 + A1:2012 + A2:2020 (Edition 3.2)/FCC/UL certified, IPX1-rated enclosure, DICOM support, optional Anti-Glare (AG) or Anti-Reflection (AR), VESA mounting
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| LCD Size / Type | 27" AHVA |
|---|---|
| Resolution | 1920 x 1080 (FHD) |
| Brightness | 350 nits (typ.) |
| Contrast Ratio | 1000:1 (typ.) |
| Backlight | LED |
| Touch Screen | PCAP (USB-C interface) |
| Viewing Angle | 178°(H) / 178°(V) |
| Color Support | 16.7M colors (8bit RGB) |
| Active Screen Area | 596.74 x 335.66 mm |
| Support Resolution | 640 x 480,800 x 600,1024 x 768,1280 x 1024,1366 x 768,1680 x 1050,1920 x 1080 |
| Video Input | 1x HDMI 1.4 |
| USB-C | 1x USB-C (DP Alt Mode, Touch, USB 3.0 Upstream, Power Delivery) |
| USB Hub | 2x USB Type-A 2.0 (downstream) |
| Power Connector | 1x DC Jack (2.5mm lockable) |
| Power Input (Monitor) | 12VDC/5A (If both the USB Type-C port and DC barrel input are connected simultaneously, the DC barrel power input takes priority.) |
| Power Adapter | AC IN: 100~240V; DC OUT: 12V/5A |
| Power Consumption | 28 W |
| Temperature Range | Operating: 5~40°C / Storage: -10~60°C |
| Humidity Range | Operating: 20~80% / Storage: 10~90% (non-condensing) |
| Dimensions | 648.85 (W) x 469.72 (H) x 249.86 (D) mm |
| Weight | Net Weight: 8.9 kg Gross Weight: 12.9 kg |

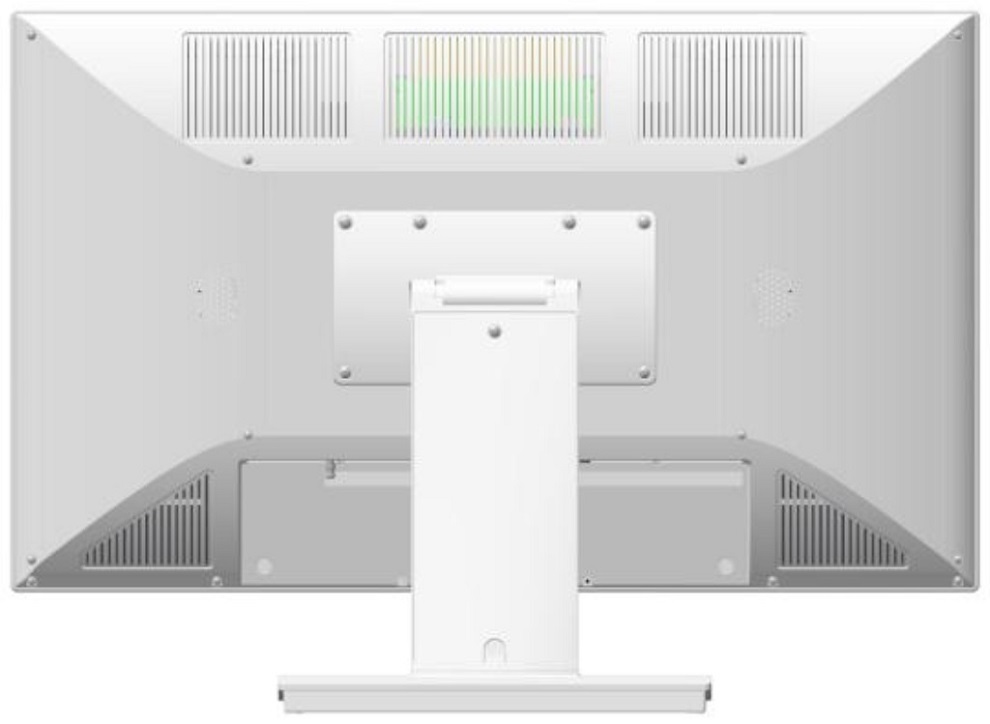

| VESA Mount | 100 x 200 mm,100 x 100 mm |
| Certification | - Safety: IEC 60601-1, EN 60601-1, ANSI/AAMI ES60601-1 - EMC: IEC 60601-1-2, EN 60601-1-2, ANSI/AAMI ES60601-1-2 - Regulatory: CE, FCC Part 18 - Environmental: RoHS, WEEE, REACH |
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| MEDS-M2701 | 27" FHD medical LCD monitor w/ PCAP Touch. DICOM. IPX1. USB-C. Stand. 350 nits. *Accessories: USB-C cable, HDMI cable, User Guide CD | add to list – MEDS-M2701 |
