- Engicam

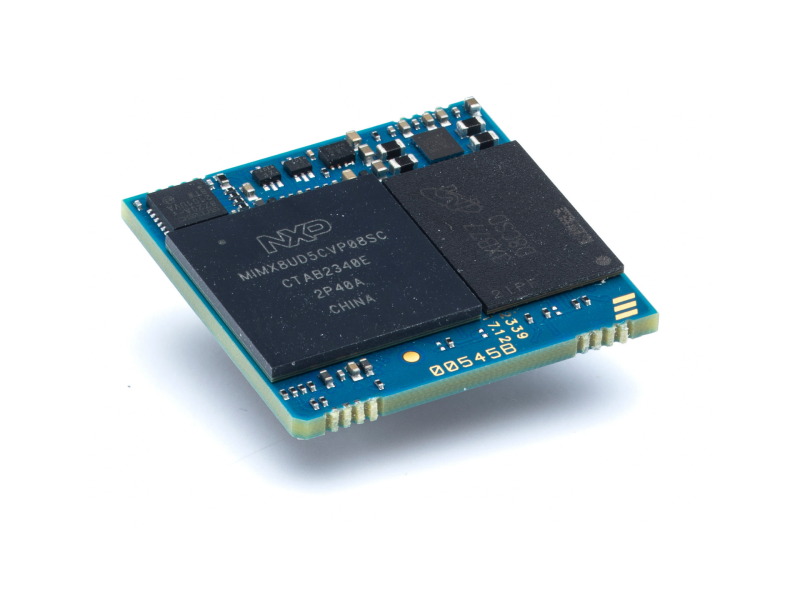

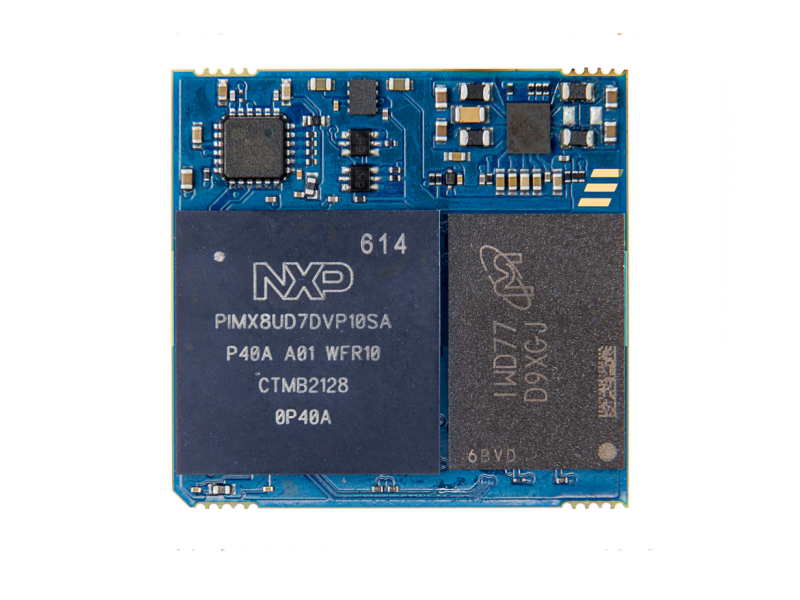

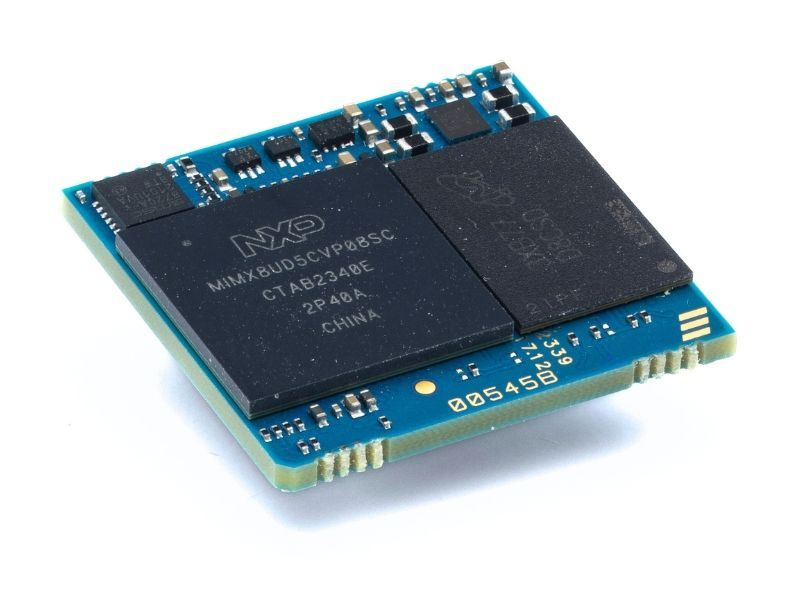

MicroGEA MX8ULP
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Manufacturer: NXP |
|---|---|
| CPU #2 | GPU: ja |
| Cores | ARM |
| Cores #2 | Up to two Arm® Cortex®-A35 @ 1.0 GHz Arm Cortex-M33 @ 216 MHz |
| Cores #3 | 2 cores |
| Memory | LPDDR4X@1056MTs |
| Memory #2 | 1GB up to 2GB |
| Graphics & AI | GPU3D support for Open GL ES 3.1, Vulkan 1.1, Open CL 2.x and Open VG1.1 |
| Video Interfaces | DSI, Parallel RGB |
| Mass Storage | Starting from 4GB eMMC drive soldered on-board |
| Mass Storage #2 | EMMC |
| Networking | 1x 10/100 Ethernet |
| USB | 1x OTG |
| USB #2 | 1x USB2 |
| PCIe | NO |
| Audio | SAI Interface |
| Peripheral Interfaces | CAN Bus, UARTs, JTAG, I2C, SPI, GPIOs |
| Power Supply | single 3.3V |
| Operating System | Linux |
| Development System | Yocto |
| Operating Temperature | -40° up to 85° |
| Dimensions | MicroGEA |
| Dimensions #2 | 25 x 26 mm |
| Product availability | 2038 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| MicroGEA_MX8ULP_Flyer.pdf | 275.84 KB | download – MicroGEA_MX8ULP_Flyer.pdf |
