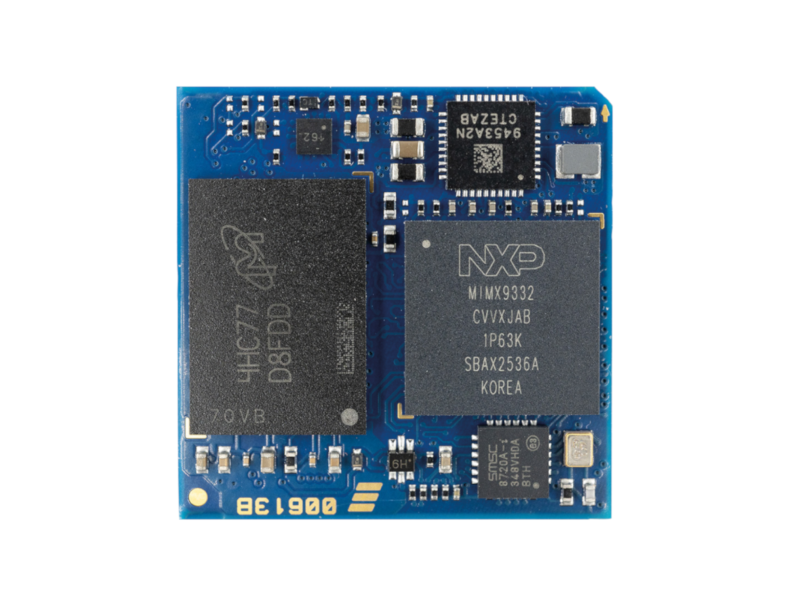

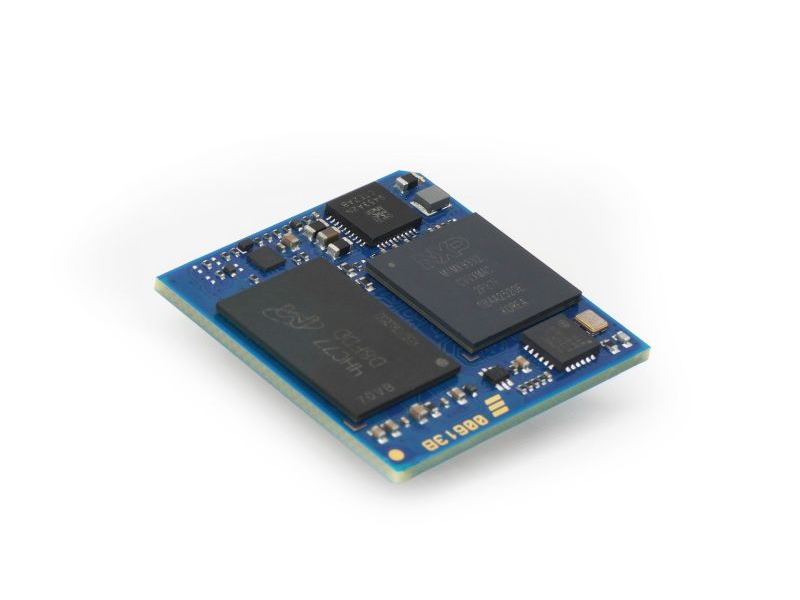

MicroGEA MX93
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | i.MX 93 |
|---|---|
| CPU #2 | Manufacturer: NXP |
| CPU #3 | NPU: ja |
| Cores | ARM |
| Cores #2 | Up to Dual Arm® Cortex®-A55 @ 1.7 GHz Arm Cortex-M33 @ 250MHz |
| Cores #3 | 2 cores |
| Memory | LPDDR4X@3700MTs |
| Memory #2 | 1GB up to 2GB |
| Graphics & AI | Arm® Ethos™ U-65 microNPU Hardware Compositor for Blending/Composition, Resize, Color Space Conversion |
| Video Interfaces | LVDS, Parallel RGB |
| Mass Storage | Starting from 4 GB soldered on-board |
| Mass Storage #2 | EMMC |
| Networking | 1x 10/100 Ethernet |
| USB | 1x OTG |
| USB #2 | 1x USB2 |
| PCIe | NO |
| Audio | I2S/SAI interface |
| Peripheral Interfaces | UART, SM Bus, I2C, SPI, GPIOs, CAN, RMII |
| Power Supply | single 5V |
| Operating System | Linux |
| Development System | Yocto |
| Operating Temperature | -40° up to 85° |
| Dimensions | MicroGEA |
| Dimensions #2 | 25 x 25 mm |
| Product availability | 2038 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| MicroGEA_MX93_Flyer.pdf | 229.19 KB | download – MicroGEA_MX93_Flyer.pdf |
