- Engicam

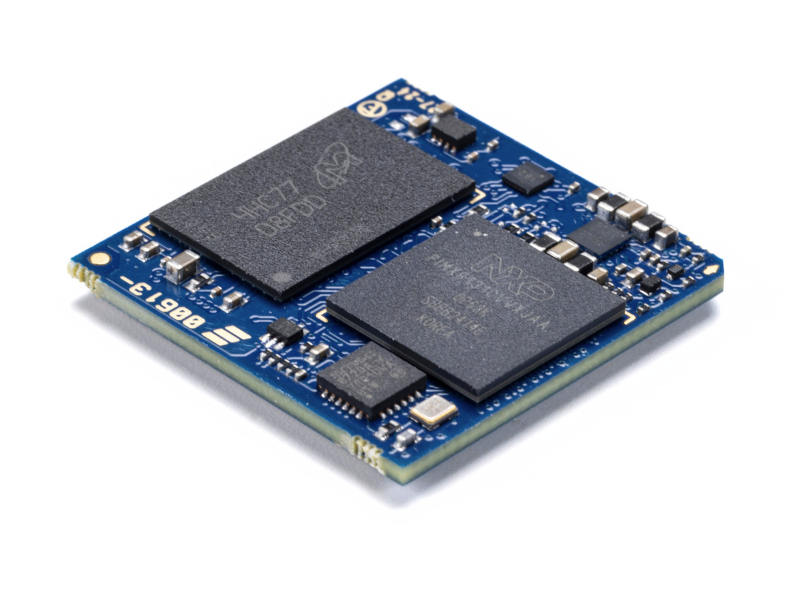

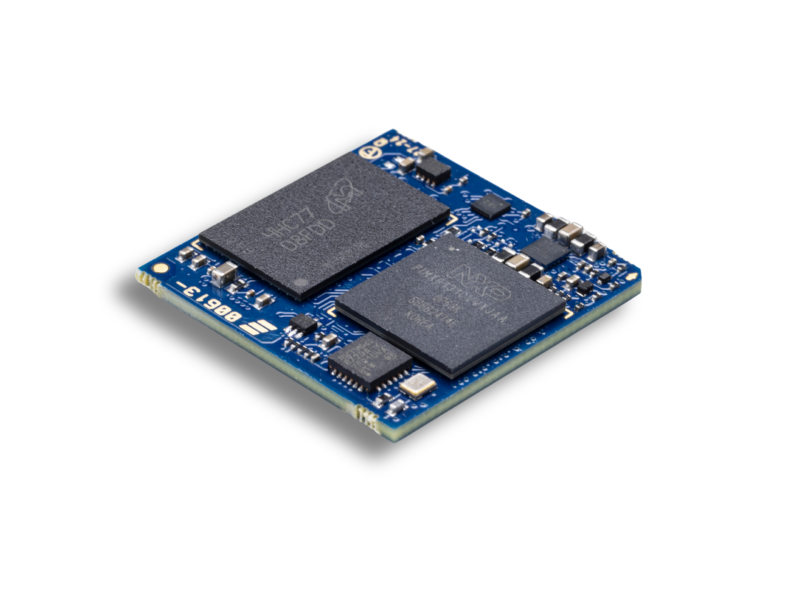

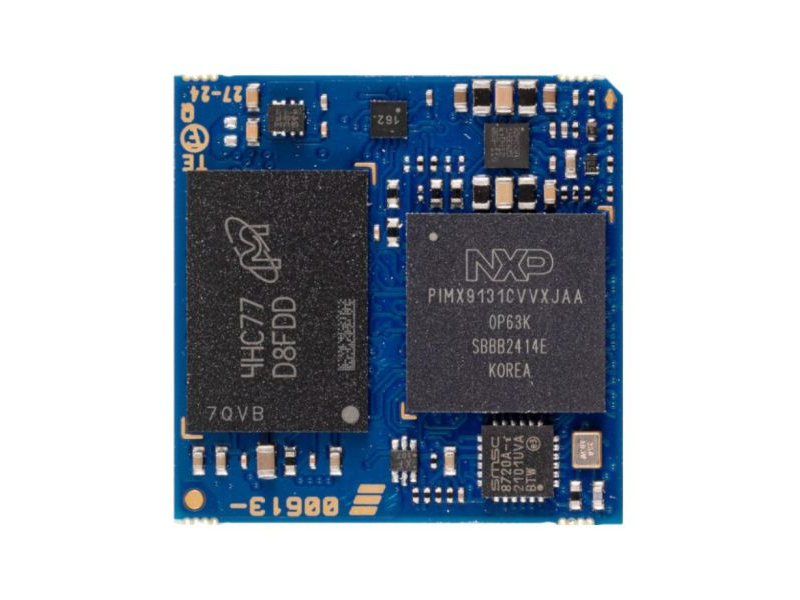

MicroGEA MX91
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | i.MX91 |
|---|---|
| CPU #2 | Manufacturer: NXP |
| Cores | ARM |
| Cores #2 | ARM® Cortex®-A55 @1.4 GHz |
| Cores #3 | 1 cores |
| Memory | LPDDR4@2400MTs |
| Memory #2 | 1GB up to 2GB |
| Video Interfaces | Parallel RGB |
| Mass Storage | Starting from 4 GB eMMC soldered on board |
| Mass Storage #2 | EMMC |
| Networking | 1x 10/100 Ethernet |
| USB | 2x USB2 |
| PCIe | NO |
| Audio | I2S/SAI interface |
| Peripheral Interfaces | UART, SM Bus, I2C, SPI, GPIOs, CAN, RMII |
| Power Supply | single 3.3V |
| Operating System | Linux |
| Development System | Yocto |
| Operating Temperature | -40° up to 85° |
| Dimensions | MicroGEA |
| Dimensions #2 | 25 x 25 mm |
| Product availability | 2040 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| MicroGEA_MX91_Flyer.pdf | 266.91 KB | download – MicroGEA_MX91_Flyer.pdf |
