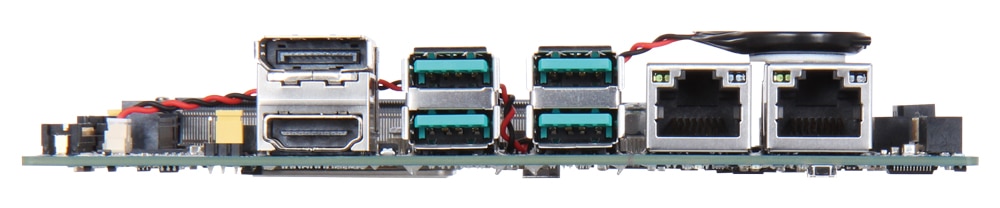

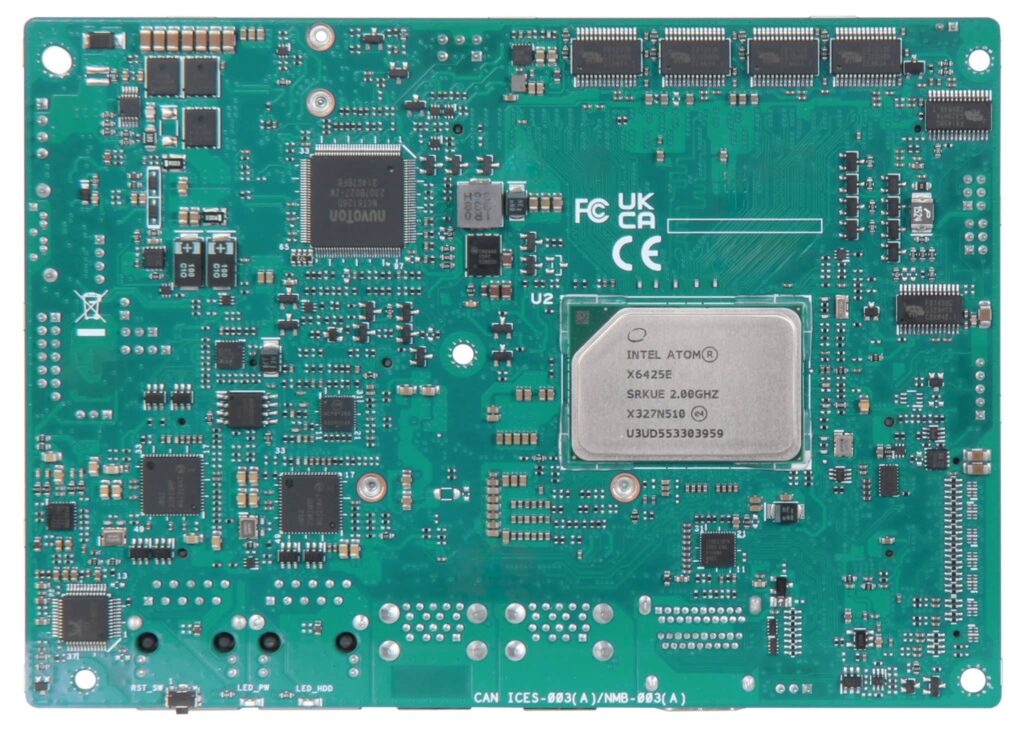

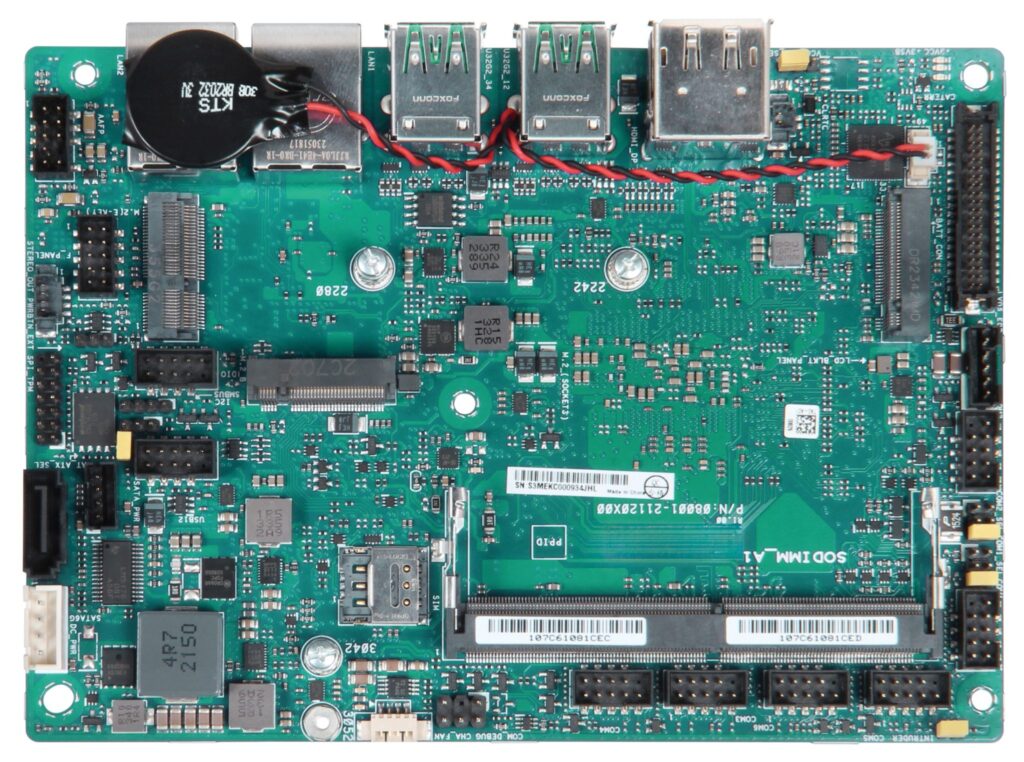

PEB-2274
Intel® Elkhart Lake Atom Processor based 3.5″ embedded Board with DDR4 SDRAM, Gigabit Ethernet, M.2(E+B+M key) sockets, 6x COM ports and 9~36V DC input
- Supports DDR4 3200 MHz non-ECC SDRAM on one SODIMM slots, up to 32GB
- Supports three displays configurations: HDMI ® +DP+LVDS
- Supports three M.2(E+B+M key)slots, one SATAIII port
- Supports wide voltage of DC power input from 9V~36V
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel Atom ® x6425E, 4 cores, 2.0GHz/3.0GHz, 12W TDP |
|---|---|
| Chipset | Integrated |
| Memory | DDR4 3200 MHz, In-Band ECC (IBECC) SO-DIMM socket, up to 32GB |
| Storage Devices | 1x SATA III |
| Watchdog Timer | YES |
| Expansion Interface | 1 x M.2 E key, type 2230 for WIFI/BT device1 x M.2 M key, type 2280 (SATA mode & PCIe x2 mode)1 x M.2 B key (USB 2.0) |
| Audio | Realtek ALC897 Line-out or Mic-in |
| Ethernet | 2 x Intel ® i210IT with2 x RJ-45 |
| Serial port | 6 (2 x RS-232/422/485,4 x RS 232) |
| USB | 4x USB 3.2 Gen2 ports on rear I/O1x USB 2.0 Header support additional2 x USB2.0 connectors |
| Keyboard & Mouse | N/A |
| GPIO | 1(8-bit) |
| Other | 1 x SPI TPM header |
| Graphic Controller | Intel ® 10th Gen UHD Graphics |
| Display Interface | HDMI ® 2.0 up to 4K x 2K @ 60 Hz DP++1.2 up to4096 x 2160 @ 60 Hz LVDS up to1920 x 1080 @ 60 Hz |
| Dimension | 146mm(L) x 105(W) mm |
| Display Interface | DC 9V ~ 36V input |
| Environment | Operating temperature: -40 °C to 85 °C Non-Operating temperature: -40 °C to 85 °C Relative humidity:10 to 95% (non condensing) |
| MTBF | TBD |
- One PEB-2274 Main board
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3S90 | PEB-2274 | Intel ® Elkhart Lake SoC on Board(x6425E,3.0G,12C,1.5M).EBC. w/ DDR4/DP/HDMI ® /GbE/COM/Audio/USB | add to list – PEB-2274 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PEB-2274 | User Manual | 4.91 MB | download – PEB-2274 | User Manual |
| PEB-2274 | Datasheet | 1.57 MB | download – PEB-2274 | Datasheet |
