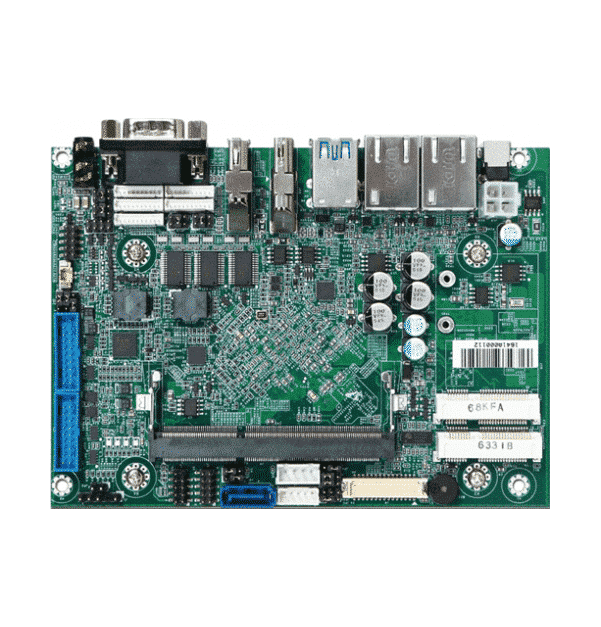

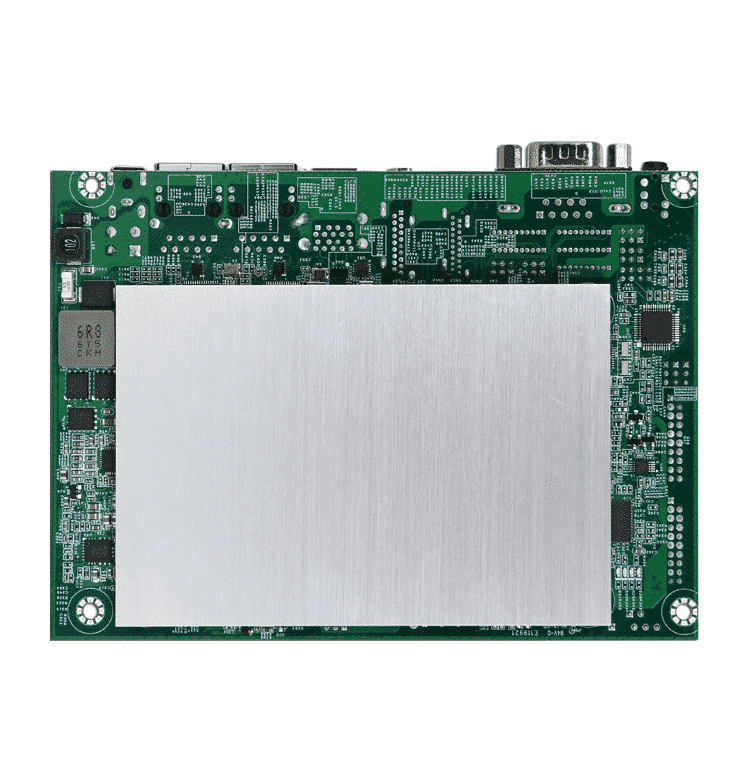

PEB-2773
Apollo Lake Atom® Processor based 3.5’’ embedded Board with DDR3L SDRAM, Gigabit Ethernet, 2x mini-PCIe sockets, 6x COM ports and 12~24V DC input
- Supports Intel ® Apollo Lake series processor
- Supports DD3L-1866/1600 MT/s non-ECC SDRAM on one SO-DIMM slot, up to 8GB
- Supports Triple displays including DP, HDMI ® , and Dual channel 24bit LVDS
- Supports mini-PCIe / mSATA (2x mini- PCIe slots)
- Supports 6x COM ports(REAR IO support RS-232/422/485)
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | 3.5" Embedded |
|---|---|
| CPU | Intel Atom ® E3900 Family |
| Chipset | N/A |
| BIOS | AMI UEFI |
| Memory | 1x DDR3L SO-DIMM up to 8GB |
| Expansion | 2x mini-PCIe sockets |
| Display | DP/HDMI ® /LVDS |
| Audio | Realtek ALC892 HDA codec |
| LAN | 2x GbE |
| Serial Port | 1x RS-232/422/4855x RS-232 |
| USB | 6x USB 3.0 |
| Storage Devices | 1x SATA |
| GPIO | 8 bit |
| Others | N/A |
| Dimension | 146 x 102mm |
- One PEB-2773 Main board
- One Installation CD
- One SATA cable
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3E83 | PEB-2773 | Intel ® Apollo Lake SoC on Board.EBC. w/DDR3L/DP/HDMI ® /GbE/COM/Audio/USB | add to list – PEB-2773 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| PEB-2773 | Datasheet | 1.43 MB | download – PEB-2773 | Datasheet |
| PEB-2773 Series | BIOS R1.00.E8 | 4.40 MB | download – PEB-2773 Series | BIOS R1.00.E8 |
| PEB-2773 Series | BIOS R1.00.E8 | 5.25 MB | download – PEB-2773 Series | BIOS R1.00.E8 |
