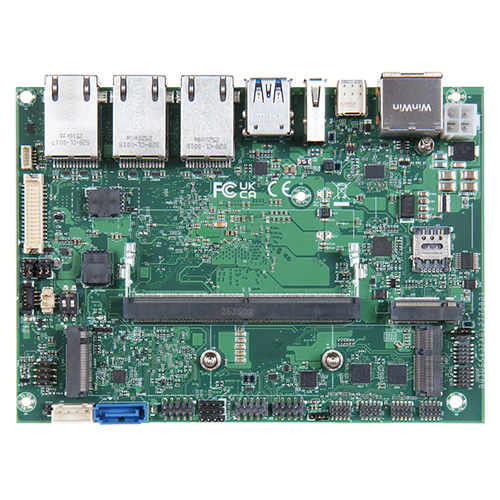

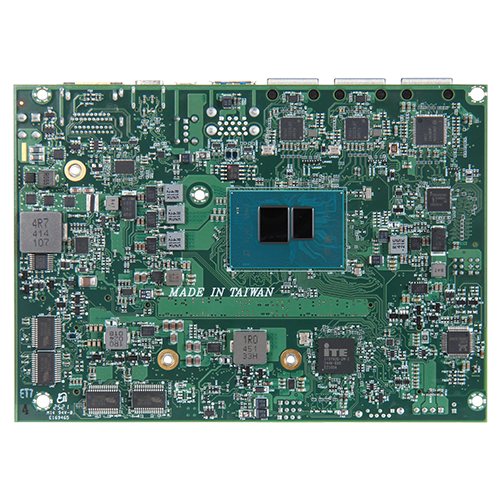

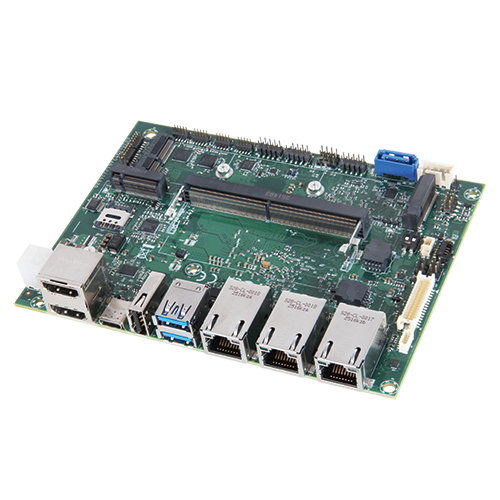

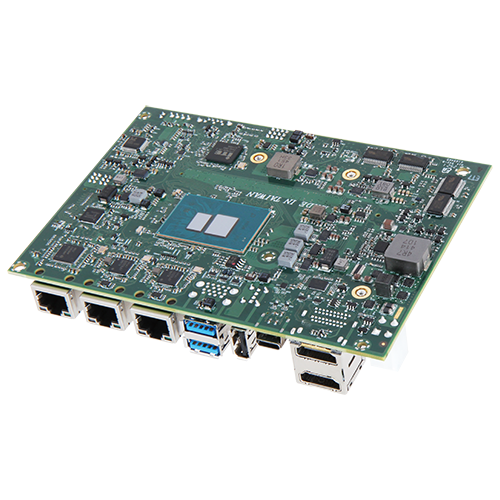

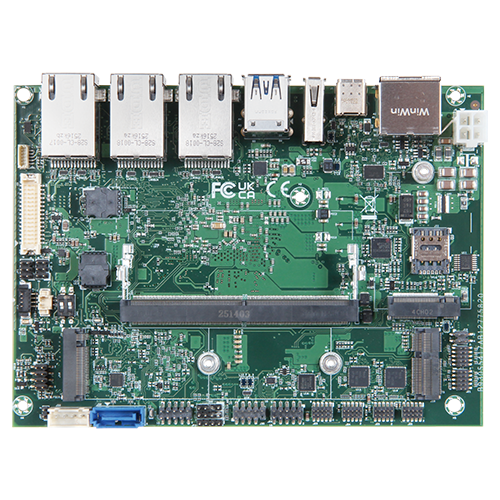

PEB-2775
Intel® TWIN/Amston Lake Atom ® Processor based 3.5’’ embedded Board with DDR5 SO-DIMM, Gigabit Ethernet, 3x M.2 sockets, 6x COM ports and 9~36V DC input
- Intel ® Processor N355/N150 (Twin Lake), x7433RE (Amston Lake)
- Support Daul HDMI ® & one Type-C & one LVDS display output
- 1x DDR5 SO-DIMM socket, 4800MT/s, up to 16GB
- Support three LAN ports(2x 2.5G & 1x GbE, OOB-remote power on/off/reset, BIOS recovery, Serial over LAN) Support M.2 (M Key, B Key & E Key)
- Support TPM function and 9~36V DC –in
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel ® Core™ 3 Processor N355 Intel ® Processor N150 Intel Atom ® x7433RE Processor |
|---|---|
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 16GB DDR5 4800 MT/s on SO-DIMM |
| Storage | 1 x SATA Ports M.2 |
| Watchdog Timer | Programmable, time out period from 1 s to 255 s |
| Ethernet | 1 x w/ Intel ® WGI210AT with 1 GbE Lan2 x w/ Intel ® WGI226LM with 2.5 Gbe LAN |

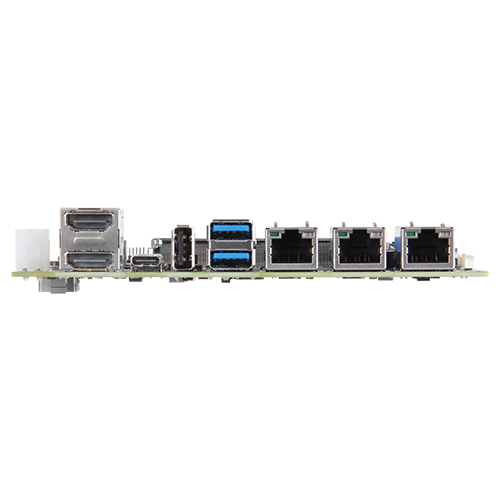

| USB | 2 x Type A on Rear1 x Type A on Rear1 x Type C with DP Alt mode on Rear |
| Display | 2 x HDMI ® 2.0 |
| Audio | 1 x Pin Header support Line-in , Line-out , Mic-in w/ Realtek ALC897 |
| Serial Port | 4 x Pin Header support RS-2322 x Pin Header support RS-232/422/485 |
| USB | 2 x USB 2.0 Pin Header |
| M.2 | 1 x M.2 E Key 2230 support USB, PCIe x1,1 x M.2 B Key 3042 3052 support USB, PCIe x1, 4G/5G1 x M.2 M Key 2280 support SATA, PCIe x1, |
| SIM | 1 x Nano SIM slot |
| Security | TPM 2.0 (BOM Option) |
| Display | 1 x LVDS (On Board Header) |
| GPIO | 1 x 8-bit Digital I/Os |
| Dimension | 146 x 102 mm (5.75" x 4.02") |
| Power Supply | DC Jack 9 ~ 36V |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) ( N355 ) 0 ~ 60 °C (32.0 ~ 140.0 °F) ( N150 ) -40 ~ 85 °C (-40.0 ~ 185.0 °F) ( x7433RE ) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC |
| OS | Ubuntu 24.04, Windows 10 IoT Enterprise 2022 LTSC |
| Portwell Special Feature | OOB API, PET |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3T85 | PEB-2775-N150 | 3.5”. Intel ® Twin Lake SoC.w/ DDR5 SO-DIMM/ dual HDMI ® / dual 2.5 GbE LAN and single 1Gbe LAN/ M.2/ SIM card/ 9-36V | add to list – PEB-2775-N150 |
| AB1-3T77 | PEB-2775-N355 | 3.5″. Intel ® Twin Lake SoC.w/ DDR5 SO-DIMM/ dual HDMI ® / dual 2.5 GbE LAN and single 1Gbe LAN/ M.2/ SIM card/ 9-36V | add to list – PEB-2775-N355 |
| AB1-3T86 | PEB-2775-x7433RE | 3.5”. Intel ® Twin Lake SoC.w/ DDR5 SO-DIMM/ dual HDMI ® / dual 2.5 GbE LAN and single 1Gbe LAN/ M.2/ SIM card/ 9-36V | add to list – PEB-2775-x7433RE |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| PEB-2775 Series | BIOS 0.0.13 | 13.43 MB | download – PEB-2775 Series | BIOS 0.0.13 |
| PEB-2775 Series | EC 0.10 | 497.43 KB | download – PEB-2775 Series | EC 0.10 |
| PEB-2775 | OOB Utility | 23.05 MB | download – PEB-2775 | OOB Utility |
| PEB-2775 | EC 0.9 | 495.33 KB | download – PEB-2775 | EC 0.9 |
| PEB-2775 | User Manual | 6.78 MB | download – PEB-2775 | User Manual |
| PEB-2775 | BIOS 0.0.12 | 13.39 MB | download – PEB-2775 | BIOS 0.0.12 |
| PEB-2775 | EC 0.8 | 126.88 KB | download – PEB-2775 | EC 0.8 |
| PEB-2775 | BIOS 0.0.10 | 13.39 MB | download – PEB-2775 | BIOS 0.0.10 |
| PEB-2775 | EC 0.6 | 126.19 KB | download – PEB-2775 | EC 0.6 |
| PEB-2775 | Datasheet | 717.13 KB | download – PEB-2775 | Datasheet |
