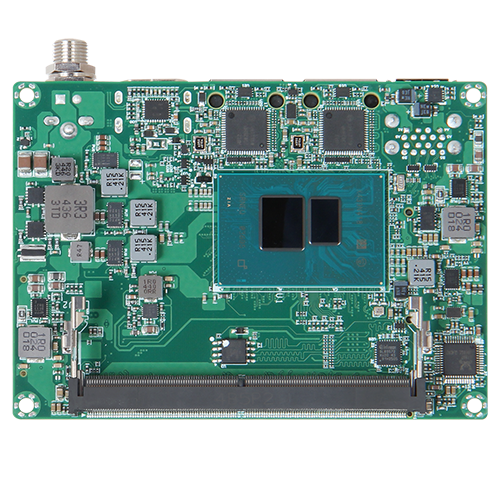

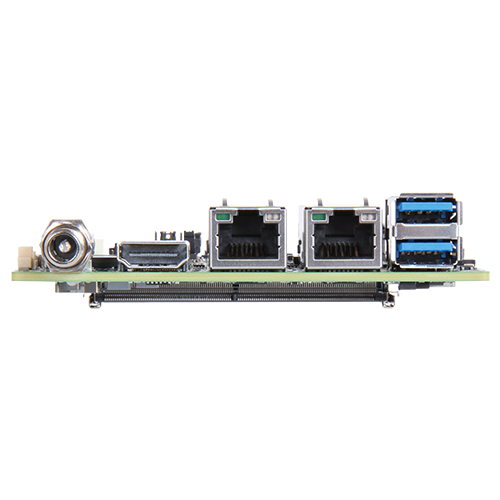

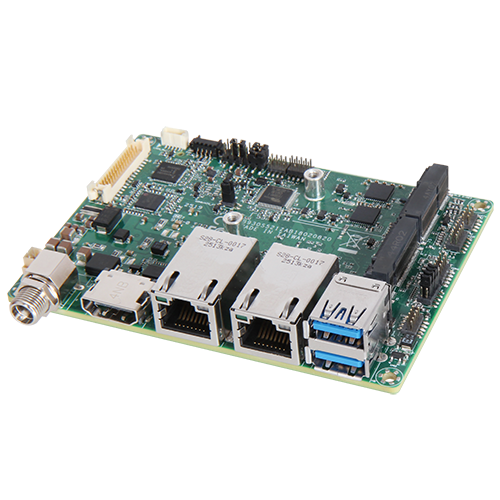

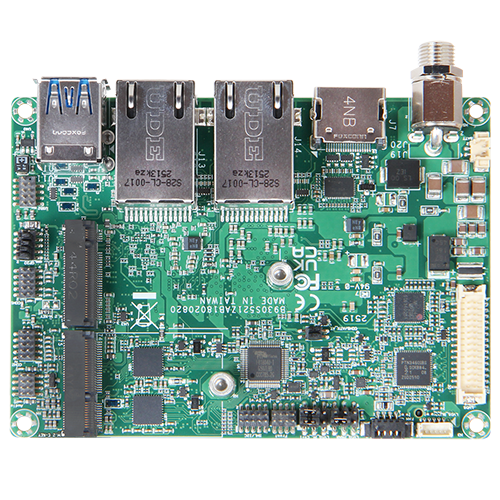

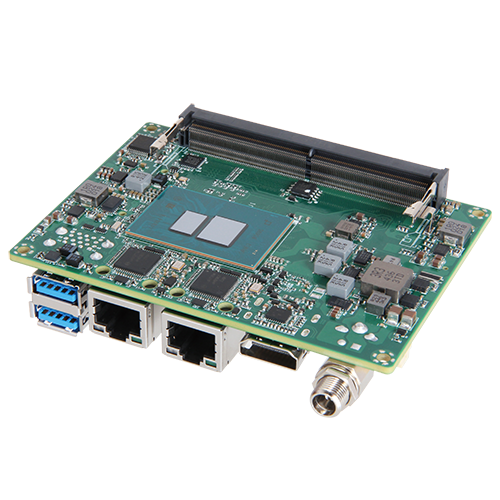

PICO-8020
DDR5 4800 SODIMM up to 16GB; 2x GbE, 2x USB 3.2; HDMI® 2.0, LVDS; 12–24V DC; TPM 2.0
- Intel ® Twin Lake N150& Amston Lake X7433RE/X7211RE
- 1x HDMI ® 2.0 , 1x LVDS, 2x GbE, 2x USB 3.2
- DDR5 4800 SODIMM up to 16GB
- 1x M.2 2242 M-Key, 1x M.2 2230 E-Key
- 2x COM, GPIO, TPM2.0, 12~24V DC Jack
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | Pico-ITX |
|---|---|
| Processor | Intel ® Processor N150 Intel Atom ® x7433RE Processor Intel Atom ® x7211RE Processor |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 16GB DDR5 4800 MT/s on 1 SO-DIMM |
| Watchdog Timer | Programmable, time out period from 1 s to 255 s |
| Graphic Controller | Intel ® Graphics |
| Ethernet | 2 x Intel ® I210AT with GbE LAN 10/100/1000 Mbps ( N150 )2 x Intel ® I210IT with GbE LAN 10/100/1000 Mbps ( x7433RE )2 x Intel ® I210IT with GbE LAN 10/100/1000 Mbps ( x7211RE ) |
| USB | 2 x USB 3.2 Gen2 Type A |
| Display | 1 x HDMI ® 2.03840 x 2160@60Hz |
| Audio | 1 x Pin Header support Line-in , Line-out , Mic-in w/ Realtek ALC897 |
| Serial Port | 2 x Pin Header support RS-232/422/485 |
| USB | 2 x USB 2.0 Pin Header |
| M.2 | 1 x M.2 M Key 2242 support SATA, PCIe x11 x M.2 E Key 2230 support USB 2.0, PCIe x1 |
| Security | TPM 2.0 ( On Board IC ) |
| Display | 1 x LVDS1920 x 1200@60Hz |
| GPIO | 1 x 8-bit Digital I/Os |
| Others | 1 x I2C1 x SMBus |
| Dimension | 100 x 72 mm (3.9" x 2.8") |
| Power Supply | DC Jack(colay 2-pin Terminal Block) 12 ~ 24V |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) ( N150 ) -40 ~ 85 °C (-40.0 ~ 185.0 °F) ( x7433RE ) -40 ~ 85 °C (-40.0 ~ 185.0 °F) ( x7211RE ) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC UKCA |
| OS | Windows 11 IoT Enterprise 2024 LTSC, Ubuntu 24.04 |
| Portwell Special Feature | PET |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3U28 | PICO-8020-N150 | Twin Lake N150. w/DDR5/HDMI ® /GbE/TPM/COM/USB/Audio | add to list – PICO-8020-N150 |
| AB1-3T73 | PICO-8020-X7433RE | Amston Lake X7433RE. w/DDR5/HDMI ® /GbE/TPM/COM/USB/Audio | add to list – PICO-8020-X7433RE |
| AB1-3U31 | PICO-8020-X7211RE | Amston Lake R7211RE. w/DDR5/HDMI ® /GbE/TPM/COM/USB/Audio | add to list – PICO-8020-X7211RE |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PICO-8020 | BIOS | 13.35 MB | download – PICO-8020 | BIOS |
| PICO-8020 | BIOS 0.0.14 | 13.33 MB | download – PICO-8020 | BIOS 0.0.14 |
| PICO-8020 | Datasheet | 733.72 KB | download – PICO-8020 | Datasheet |
| PICO-8020 | BIOS 0.0.13 | 13.29 MB | download – PICO-8020 | BIOS 0.0.13 |
| PICO-8020 | BIOS 0.0.11 | 13.30 MB | download – PICO-8020 | BIOS 0.0.11 |
| PICO-8020 | User Manual | 3.39 MB | download – PICO-8020 | User Manual |
