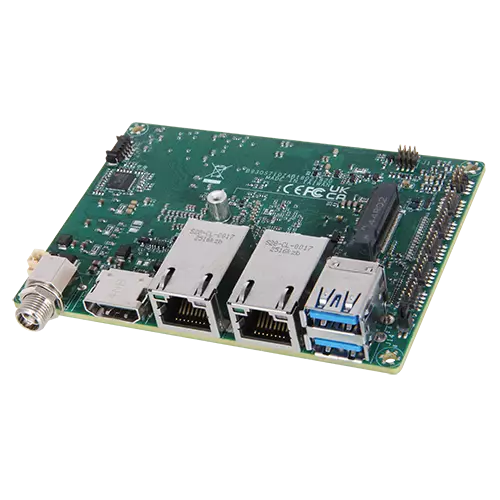

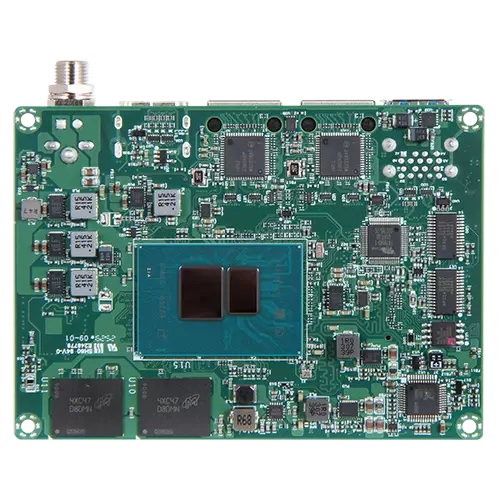

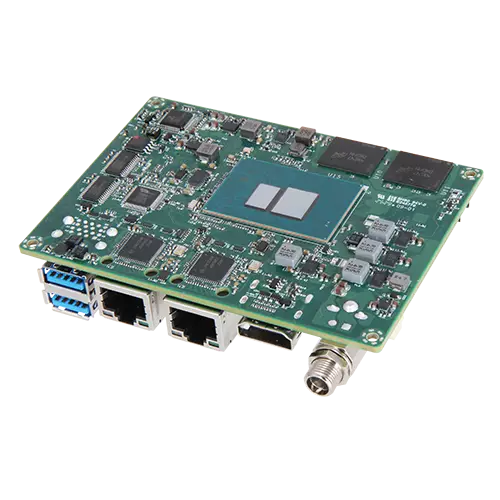

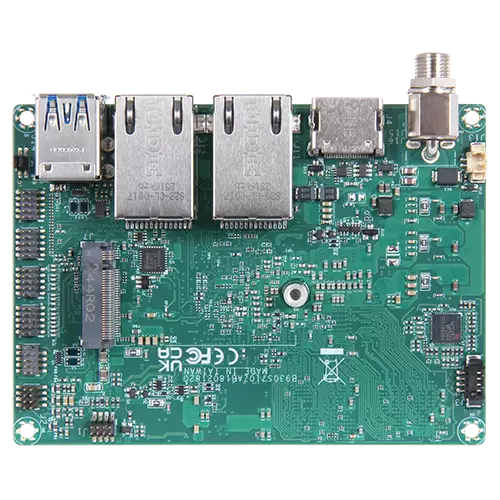

PICO-8021
Intel® Twin Lake N150 & Asmton Lake x7433RE/x7211RE; LPDDR5 up to 16GB; 1x M.2 2242 M-Key; 2x GbE, 2x USB 3.2; 1x HDMI® 1.4; GPIO, TPM 2.0; 12V DC
- Intel ® Twin Lake N150& Amston Lake x7433RE/x7211RE

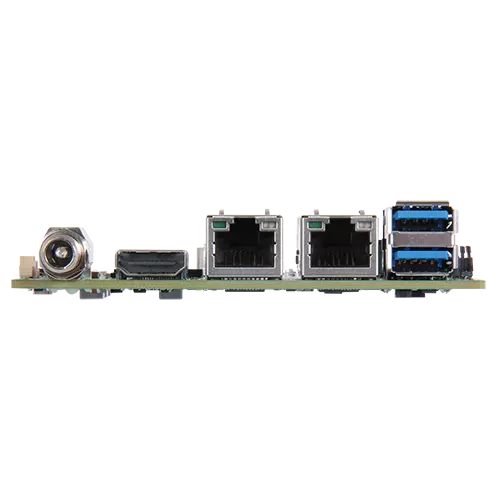

- 1x HDMI ® 1.4 , 2x GbE, 2x USB 3.2
- LPDDR5 up to 16GB
- 1x M.2 2242 M-Key
- 2x COM, GPIO, TPM2.0, 12V DC Jack
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | Pico-ITX |
|---|---|
| Processor | Intel ® Processor N150 Intel Atom ® x7433RE Processor Intel Atom ® x7211RE Processor |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 16GB LPDDR5 4800 MT/s on board (default 8GB) |
| Watchdog Timer | Programmable, time out period from 1 s to 255 s |
| Graphic Controller | Intel ® Graphics |
| Ethernet | 2 x Intel ® I210AT with GbE LAN 10/100/1000 Mbps ( N150 )2 x Intel ® I210IT with GbE LAN 10/100/1000 Mbps ( x7433RE )2 x Intel ® I210IT with GbE LAN 10/100/1000 Mbps ( x7211RE ) |
| USB | 2 x USB 3.2 Gen2 Type A |
| Display | 1 x HDMI ® 1.43840 x 2160@30Hz |
| Audio | 1 x Pin Header support Line-in , Line-out , Mic-in w/ Realtek ALC897 |
| Serial Port | 2 x Pin Header support RS-232 |
| USB | 2 x USB 2.0 Pin Header |
| M.2 | 1 x M.2 M Key 2242 support SATA, PCIe x1 |
| Security | TPM 2.0 ( On Board IC ) |
| GPIO | 1 x 8-bit Digital I/Os |
| Dimension | 100 x 72 mm (3.9" x 2.8") |
| Power Supply | DC Jack 12V |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) ( N150 ) -40 ~ 85 °C (-40.0 ~ 185.0 °F) ( x7433RE ) -40 ~ 85 °C (-40.0 ~ 185.0 °F) ( x7211RE ) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC UKCA |
| OS | Windows 11 IoT Enterprise 2024 LTSC, Ubuntu 24.04 |
| Portwell Special Feature | PET |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3U51 | PICO-8021-N150 | Intel ® Twin Lake SoC. w/LPDDR5/HDMI ® /GbE/TPM/COM/USB/Audio | add to list – PICO-8021-N150 |
| AB1-3T99 | PICO-8021-X7433RE | Intel ® Asmton Lake SoC. w/LPDDR5/HDMI ® /GbE/TPM/COM/USB/Audio | add to list – PICO-8021-X7433RE |
| AB1-3U67 | PICO-8021-X7211RE | Intel ® Asmton Lake SoC. w/LPDDR5/HDMI ® /GbE/TPM/COM/USB/Audio | add to list – PICO-8021-X7211RE |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PICO-8021 | Datasheet | 536.46 KB | download – PICO-8021 | Datasheet |
| PICO-8021 | User Manual | 3.07 MB | download – PICO-8021 | User Manual |
