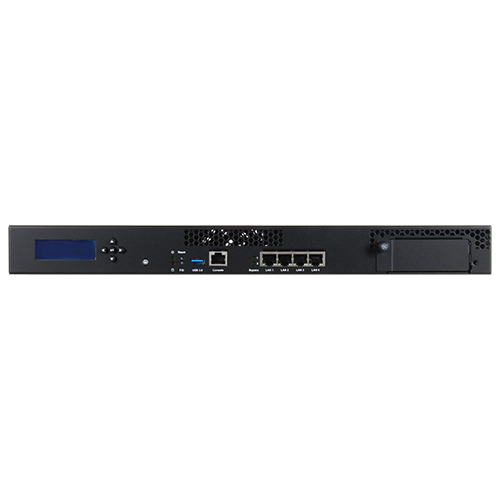

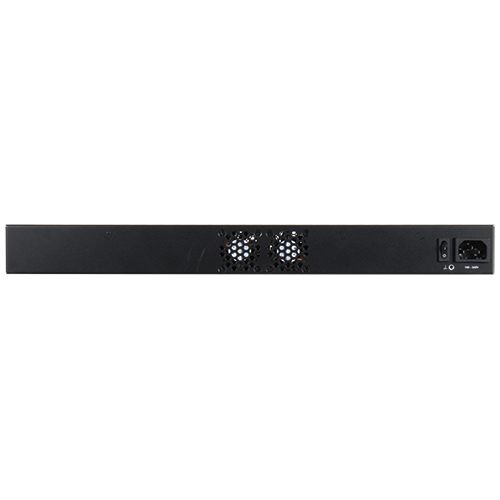

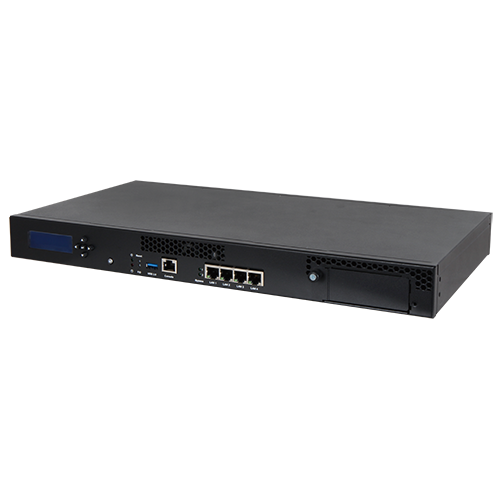

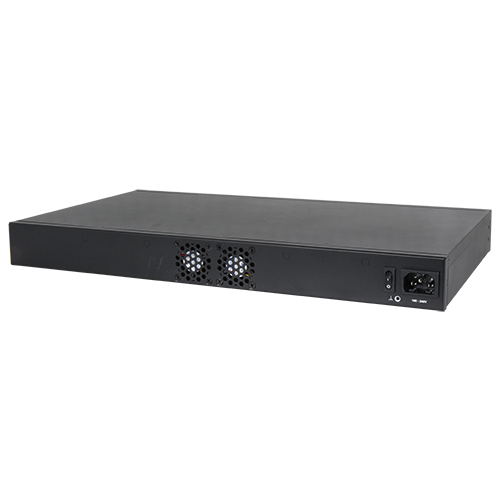

PNAC-32300
1 U Rackmount System with Intel® Amston Lake x7809C(8C) Processor for SD-WAN solution
- Builds on Intel ® Amston Lake x7809C
- Up to 8 Efficient Cores (E-cores) and support Intel ® DL Boost (INT8), AVX2
- 1x DDR5 4800 MT/s ECC and non-ECC SO-DIMM up to 16GB
- 2x SIM slots 1x M.2 Key-M 2242 slot (SATA) 1x M.2 Key-B 3042/3052 slot 1x Portwell properitary TSFF OCP slot (Compatible with standard OCP SFF form factor)
- 1x TPM2.0 (On-Board) Design ready for 5G and WiFi
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Sys Form Factor | Proprietary |
|---|---|
| Processor | Intel ® 9th Gen Atom Amston Lake x7809C(8C) |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 16GB on 1 non-ECC/ECC SODIMM |
| Storage | 1 x M.2 Key-M 2242 Slot (SATA)1 x eMMC 32G on board |
| Watchdog Timer | Programmable, time out period from 1 s to 255 s |
| Ethernet | 4 x 2.5 GbE w/ Intel ® WGI226IT Bypass |
| USB | 1 x USB 3.2 Gen1 Type A on Rear |
| Other | Power Button, Reset Button |
| Console Port | 1 x RJ45 |
| LED | Bypass, HDD, Power |
| Antenna | SMA Antenna holes for 5G / LTE / Wi-Fi |
| SIM Slots | 2 x Micro-SIM |
| EZIO(LCD Panel) | 2 x 16 Characters,5 x Keypads |
| M.2 | 1 x E Key w/ 3030/3042 PCIe Gen3 x2 |
| Security | TPM 2.0 |
| Expansion slot | 1 x OCP 3.0 TSFF |
| Dimension (WxDxH) | 438 x250 x 44 mm (17.24" x 9.84" x 1.73" ) |
| Weight | 3.13 kg |
| Mounting | Rack Mount |
| Cooling | System2 x Fan |
| Power Supply | AT mode/ ATX mode 80 ~ 264V Single |
| Operating Temperature | 0 ~ 40 °C (32.0 ~ 104.0 °F) |
| Storage Temperature | -40 ~ 70 °C (-40.0 ~ 158.0 °F) |
| Relative Humidity | 5% to 90%, non-condensing |
| Certification | CE, FCC Class B Part18, CE LVD Safety (EN32638-1) |
| Portwell Special Feature | PET, NODE.X |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS1-3414 | PNAC-32300 ATO | ASL x7809C SKU, Rackmount 1U Fan System. With PNAB-1211-x7809C-32. 80~264VAC Input. 2.5GbE RJ45*4. OCP 3.0 Slot*1. DDR5 SO-DIMM*1 | add to list – PNAC-32300 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PNAC-32300 | Datasheet | 268.82 KB | download – PNAC-32300 | Datasheet |
