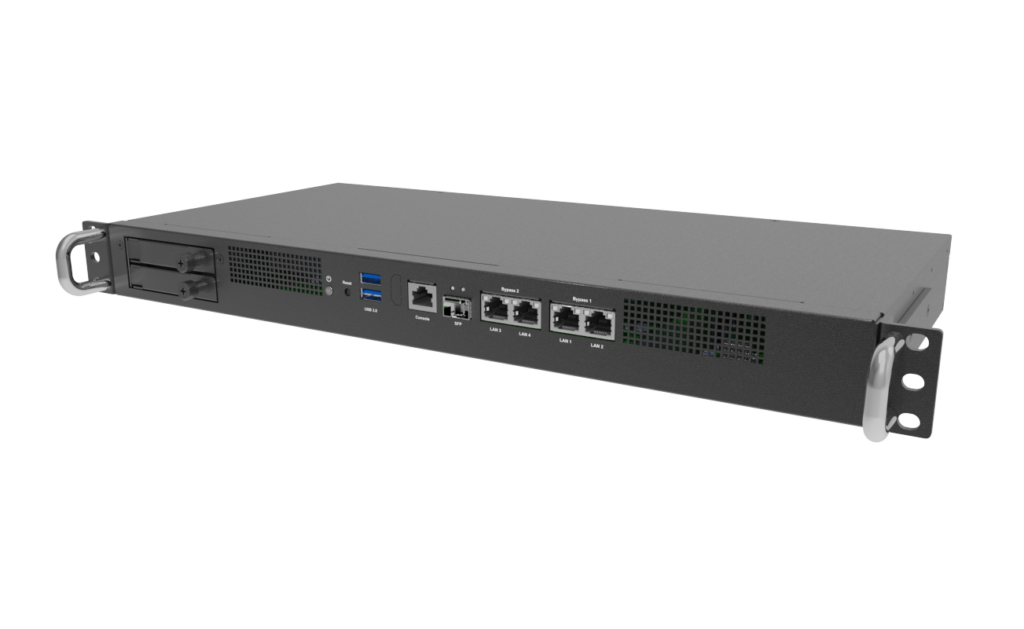

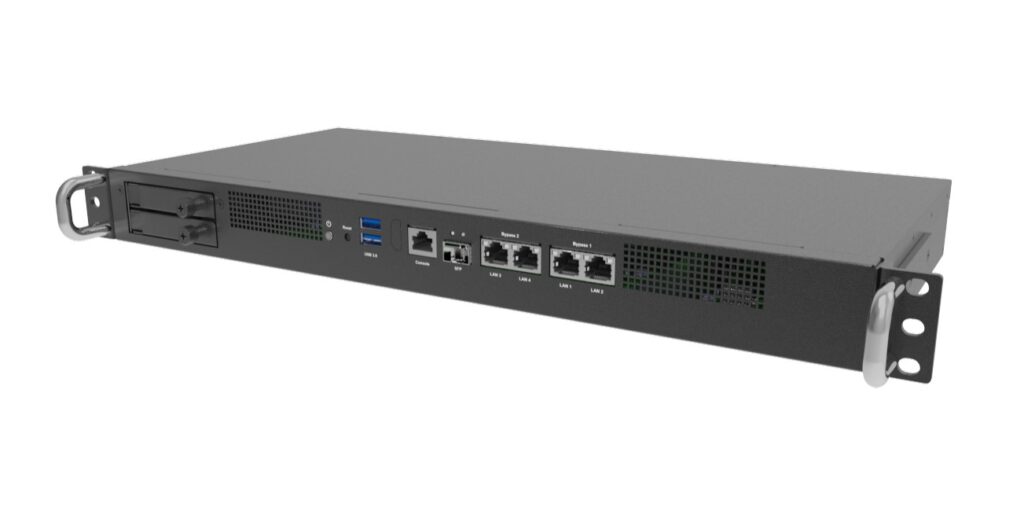

PNSR-1000
1U Compact Network Server based on Intel Atom® x7000RE/x7000C Series and Intel® Core™ i3 N-Series Processors Featuring Onboard 4x 2.5GbE RJ45 with Bypass and 1x GbE SFP
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | 1U 8.25" Rackmount |
|---|---|
| CPU | Intel Atom® x7000RE Series Processors Intel Atom® x7000C Series Processors Intel® Core™ i3 N-Series Processors Up to 8 Cores, 25W TDP |
| BIOS | AMI Aptio® V UEFI BIOS |
| IPMI | N/A |
| System Memory | Total 1 DIMM (1DPC)1x DDR5 4800MHz SODIMM, up to 16GB Supports In-Band ECC (IBECC) |
| Expansion | 1x M.2 Key B 3052 socket with1x nano SIM card slot (USB)1x M.2 Key E 2230 socket (PCIe) (Optional) |
| Ethernet Ports | 4x 2.5GbE RJ45 via Intel® Ethernet controller I226, supporting 2 pairs bypass1x GbE SFP Via Intel® Ethernet controller I210 |
| Storage | 2x 2.5” SATIII HDD/SSD (Optional)2x M.2 Key M 2280 sockets (SATAIII or Optional NVMe) |
| Power Supply | Optional 60W or 100W Build-in Open Frame AC Power Supply, AC 100V-240V input, DC 12V output |
| Cooling | CPU: Passive heatsink System:2x fans |
| Security | Onboard TPM 2.0 |
| OS Support | Linux |
| Dimension | 438mm(W) x 209.6mm(D) x 44mm(H) 17.24"(W) x 8.25"(D) x 1.73"(H) |
| Serial Port | 1x RJ45 Console port |
| USB | 2x USB 3.2 Gen 1, Type A2x USB 2.0 headers onboard |
| LCD Panel | N/A |
| Display | 1x HDMI connector (by SKU) |
| LED | Power/HDD LEDs2x RJ45 bypass status LEDs8x RJ45 LEDs2x SFP LEDs |

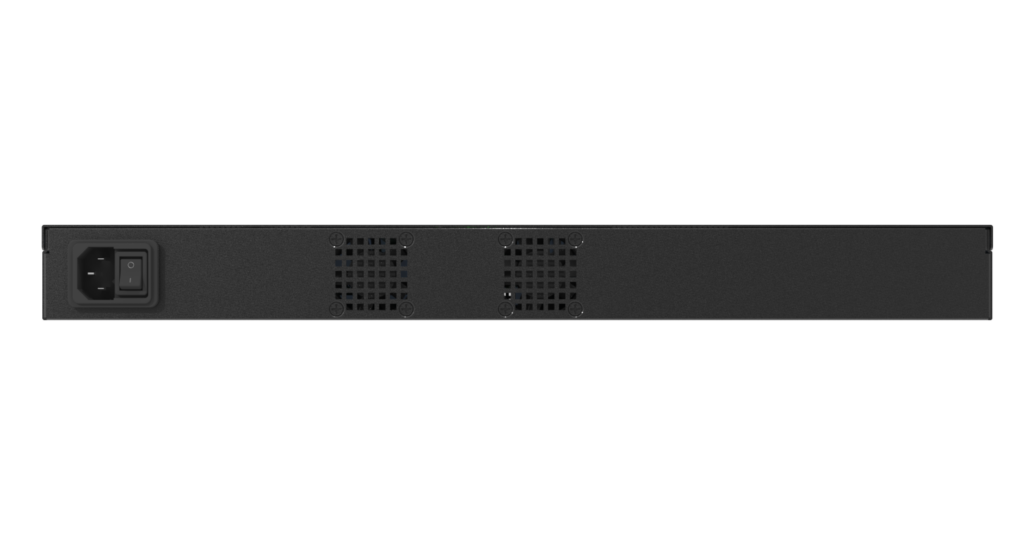

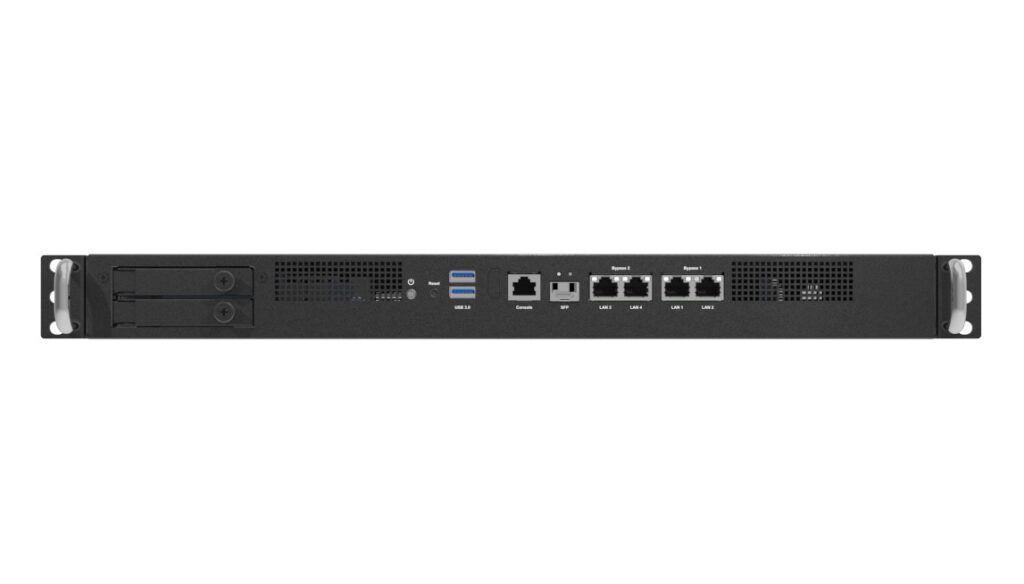

| Power | Front:1x Reset button1x Power button Rear:1x AC power inlet1x Power switch |
| Operating Environment | 0°C to 40°C (32°F to 104°F ) |
| Storage Environment | -20°C to 70° C (-4°F to 167° F) |
| Humidity | 5% to 95% RH, non-condensing |
| Certification | CE/FCC Compliance |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| 510-25-0013 | PNSR-1000 | 1U Network Appliance Based on Intel Atom®x7000RE/x7000C Series and Intel® Core™ i3 N-Series Processors | add to list – PNSR-1000 |
