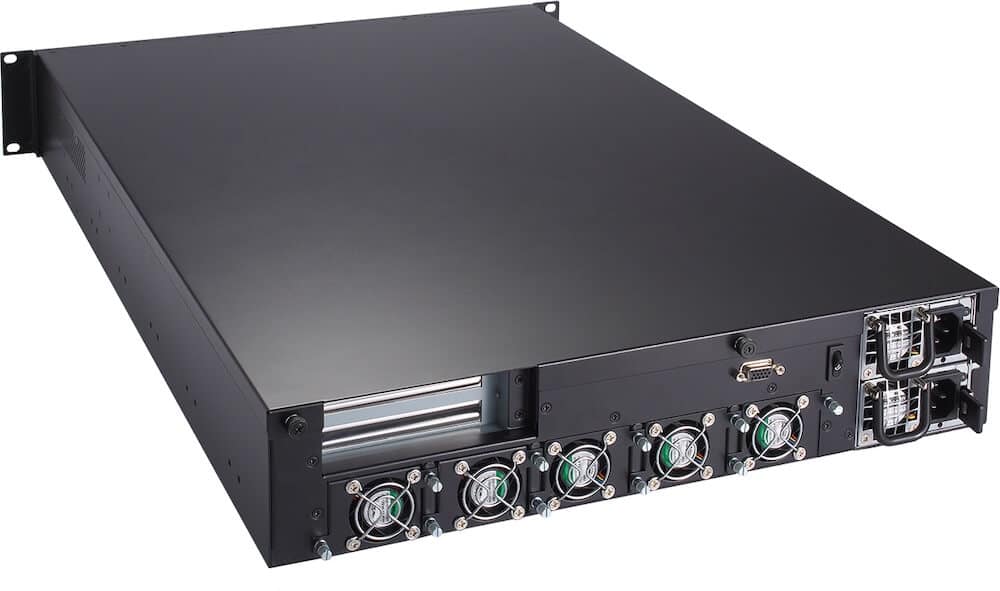

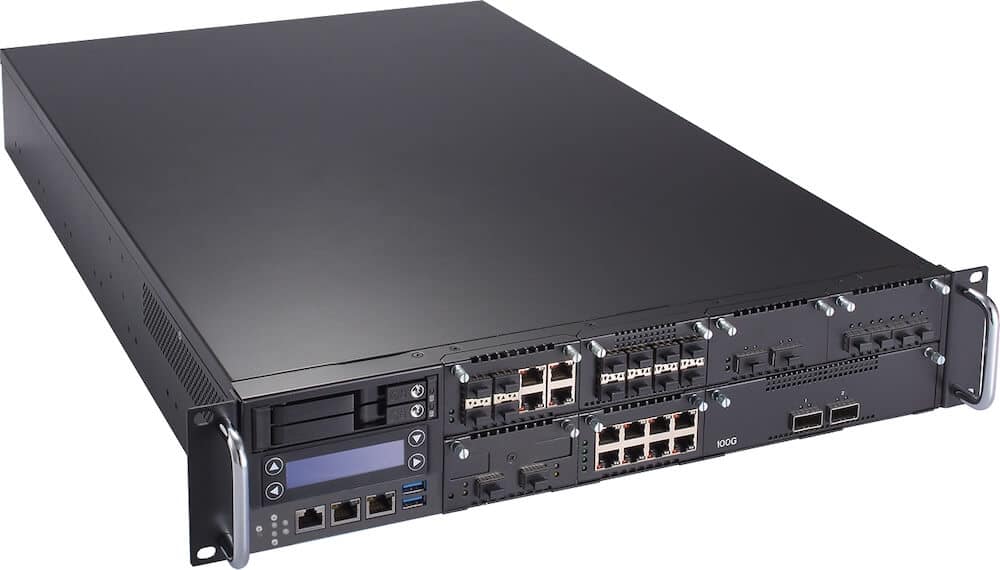

PNAC-72720
2U High Performance Platform with Intel® Dual 3rd Gen Xeon® Scalable CPUs and up to Eight Network Modules
- Dual Intel ® 3rd Gen Xeon ® Scalable CPU (formerly Ice Lake-SP)
- 20x DDR4-3200 RDIMM ECC Memory (Up to 1280GB)
- Up to 8x Proprietary Network Modules for Various Ethernet Configurations
- 2x PCIe x16 Expansion Slots for RAID/FPGA/GPU/DPU Cards
- 2x M.2 SSD (1x SATA & 1x PCIe) and 2x 2.5” SATA HDD Swappable
- Redundant Power Supply Unit (2U 1300W)
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Model | Cores/Threads | Frequency(Max) | Cache | TDP |
|---|---|---|---|---|
| CPU | 2x Intel ® 3rd Gen Xeon ® Scalable Processors (formerly Ice Lake-SP) | |||
| PCH/Chipset | Intel ® C621A PCH (formerly Lewisburg-R) | |||
| System Memory | 20x DDR4 ECC 3200MHz RDIMMs (Up to 1280GB), 10 by each processor | |||
| Ethernet Port | Up to66x Ethernet Ports from2x on-board GbE ports and8x Network Modules | |||
| Bypass | Depends on the Proprietary Networking Modules chosen | |||
| Expansion | Up to8x PCIe Gen4 x8 Networking Modules (Proprietary)2x PCIe x16 slots for Standard PCIe cards, one from each CPU respectively | |||
| Storage Device | 2x 2.5" SATA hot-swappble HDD1x M.2 Key M 2242/2280 (PCIe)1x M.2 Key M 2242/2280 (SATA) | |||
| Operating Environment | Temperature: 0 ~ 40 °C (32 ~ 104 °F) Humidity: 20 ~ 90% RH | |||
| Storage Environment | Temperature: -10 ~ 70 °C (14 ~ 158 °F) Humidity: 5 ~ 95% RH | |||
| OS Support | Linux Kernel Front Panel | |||
| Management Port | 1x RJ45 System Console Port | |||
| Ethernet Port #2 | 2x RJ45 GbE Ports | |||
| LCD Panel | 128 x 32/64 Graphic,2 x 16 Characters | |||
| LED | Power / Storage | |||
| USB | Dual USB 3.0 Ports | |||
| Display | 1x VGA Port | |||
| LOM | IPMI 2.0 with GbE Speed (optional) Optional CPUs | |||
| Intel ® Xeon ® Platinum 8351N | 36C/72T | 2.40GHz (3.50GHz) | 54MB | 225W |
| Intel ® Xeon ® Gold 6338T | 24C/48T | 2.10GHz (3.40GHz) | 36MB | 165W |
| Intel ® Xeon ® Gold 6336Y | 24C/48T | 2.40GHz (3.60GHz) | 36MB | 185W |
| Intel ® Xeon ® Gold 6330 | 28C/56T | 2.00GHz (3.10GHz) | 42MB | 205W |
| Intel ® Xeon ® Gold 6326 | 16C/32T | 2.90GHz (3.50GHz) | 24MB | 185W |
| Intel ® Xeon ® Gold 5320T | 20C/40T | 2.30GHz (3.50GHz) | 30MB | 150W |
| Intel ® Xeon ® Gold 5318Y | 24C/48T | 2.10GHz (3.40GHz) | 36MB | 165W |
| Intel ® Xeon ® Gold 5317 | 12C/24T | 3.00GHz (3.60GHz) | 18MB | 150W |
| Intel ® Xeon ® Gold 5315 | 8C/16T | 3.20GHz (3.60GHz) | 12MB | 140W |
| Intel ® Xeon ® Silver 4316 | 20C/40T | 2.30GHz (3.40GHz) | 30MB | 150W |
| Intel ® Xeon ® Silver 4314 | 16C/32T | 2.40GHz (3.40GHz) | 24MB | 135W |
| Intel ® Xeon ® Silver 4310 | 12C/24T | 2.10GHz (3.30GHz) | 18MB | 120W |
| Intel ® Xeon ® Silver 4310T | 10C/20T | 2.30GHz (3.40GHz) | 15MB | 105W |
| Power Supply | 2U 1300W redundant power supply | |||
| Dimension | 430 (W) x 663 (D) x 88 (H) mm 16.92" (W) x 26.10" (D) x 3.46" (H) Operation | |||
| Certification | CE/FCC | |||
