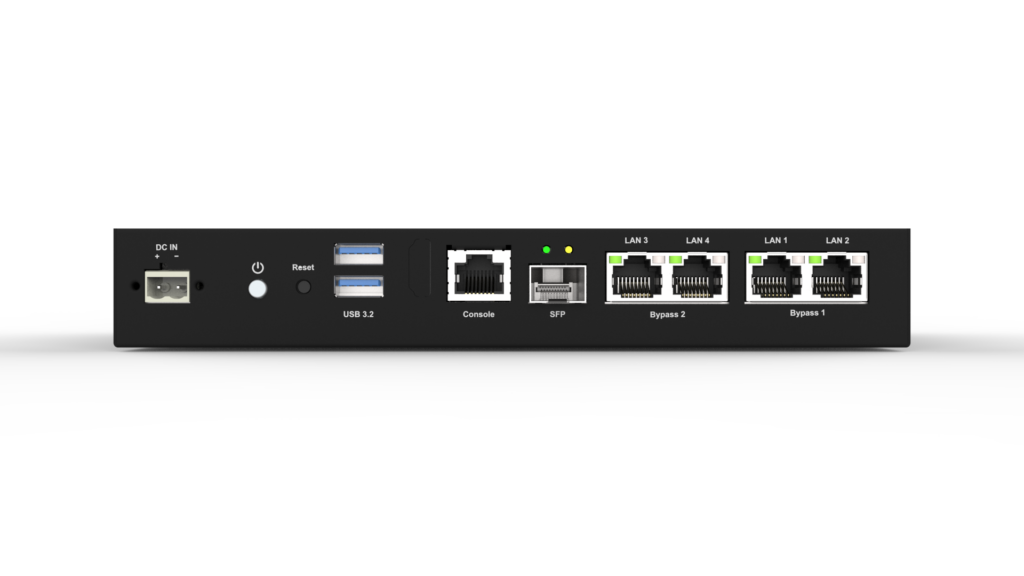

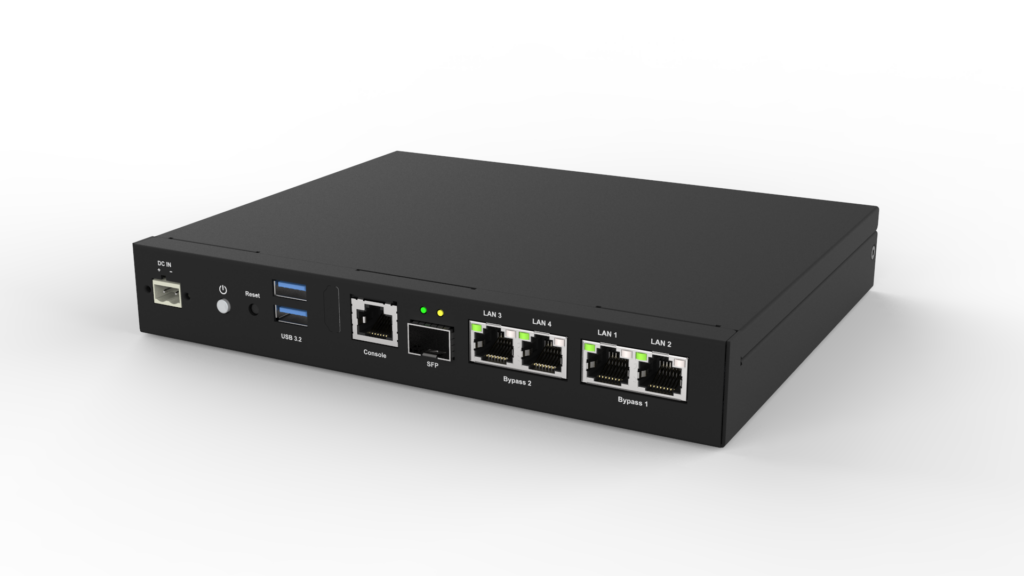

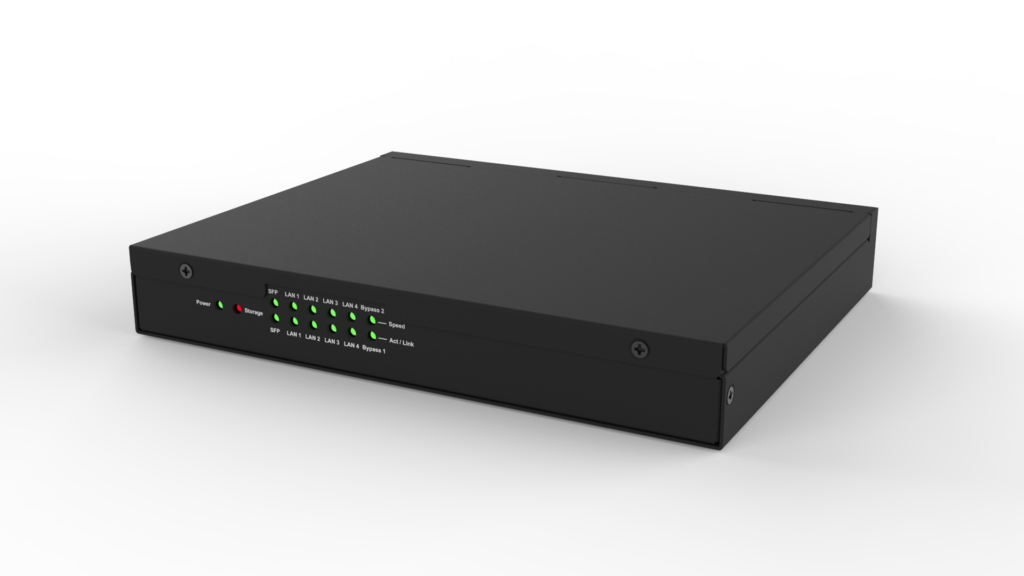

PNSD-1000
Desktop Network Appliance based on Intel Atom® x7000RE/x7000C Series Featuring Onboard 4x 2.5GbE RJ45 with Bypass and 1x GbE SFP
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | Desktop |
|---|---|
| CPU | Intel Atom® x7000RE Series Processors Intel Atom® x7000C Series Processors Intel® Core™ i3 N-Series Processors Up to 8 Cores, 12W TDP |
| BIOS | AMI Aptio® V UEFI BIOS |
| IPMI | N/A |
| System Memory | Total 1 DIMM (1DPC)1x DDR5 4800MHz SODIMM, up to 16GB |
| Expansion | 1x M.2 Key B 3052 socket with single SIM card slot (USB)1x M.2 Key E 2230 socket (PCIe) (Optional) |
| Ethernet Ports | 4x 2.5GbE RJ45 with 2 pairs bypass1x GbE SFP |
| Storage | 2x M.2 Key M 2280 sockets (NVMe or SATA) |
| Power Supply | 60W Power Adapter |
| Cooling | CPU: Passive heatsink System: Fanless |
| Security | Onboard TPM 2.0 |
| Dimension* | 8.26” (W)x 6.59” (D)x1.23(H) 210mm(W) x167.4mm (D) x31.4mm (H) |
| Serial Port | 1x RJ45 Console port |
| USB | 2x USB 3.2 Gen 1, Type A2x USB 2.0 headers onboard |
| LCD Panel | N/A |
| Display | 1x HDMI connector (by SKU) |

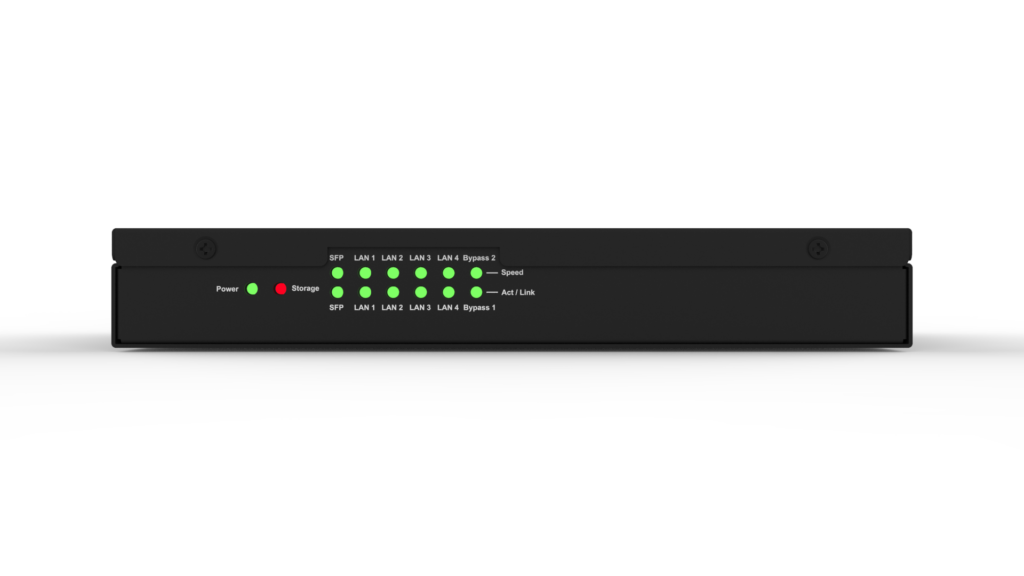

| LED | Power/HDD LEDs2x RJ45 bypass status LEDs2x SFP LEDs8x RJ45 LEDs |
| Power | 1x Reset button1x Power button1x 2-pin terminal block |
| Operating Environment | 0°C to 40° C (32°F to 104° F) |
| Storage Environment | -20°C to 70° C (-4°F to 167° F) |
| Humidity | 5% to 95% non-condensing |
| Certification | CE/FCC Compliance |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| 510-24-0027 | PNSD-1000-X7405C | Intel Atom® X7405c, 4C, 4x 2.5G RJ45, 1G SFP, bypass, 60W Power Adapter, Desktop system | add to list – PNSD-1000-X7405C |
| 510-24-0029 | PNSD-1000-X7433RE | Intel Atom® X7433RE,4C, 4x 2.5G RJ45, 1G SFP, bypass, HDMI, 60W Power Adapter, Desktop system Note: Multiple CPU SKU configurations are available. Please contact us for details. | add to list – PNSD-1000-X7433RE |
