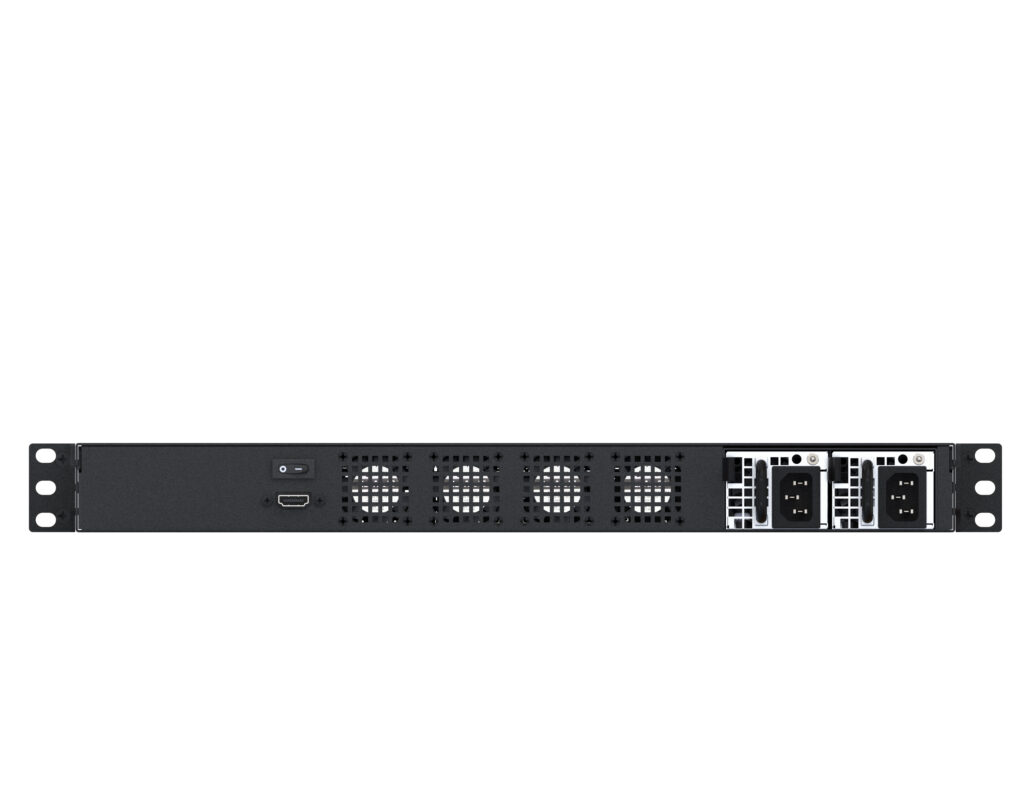

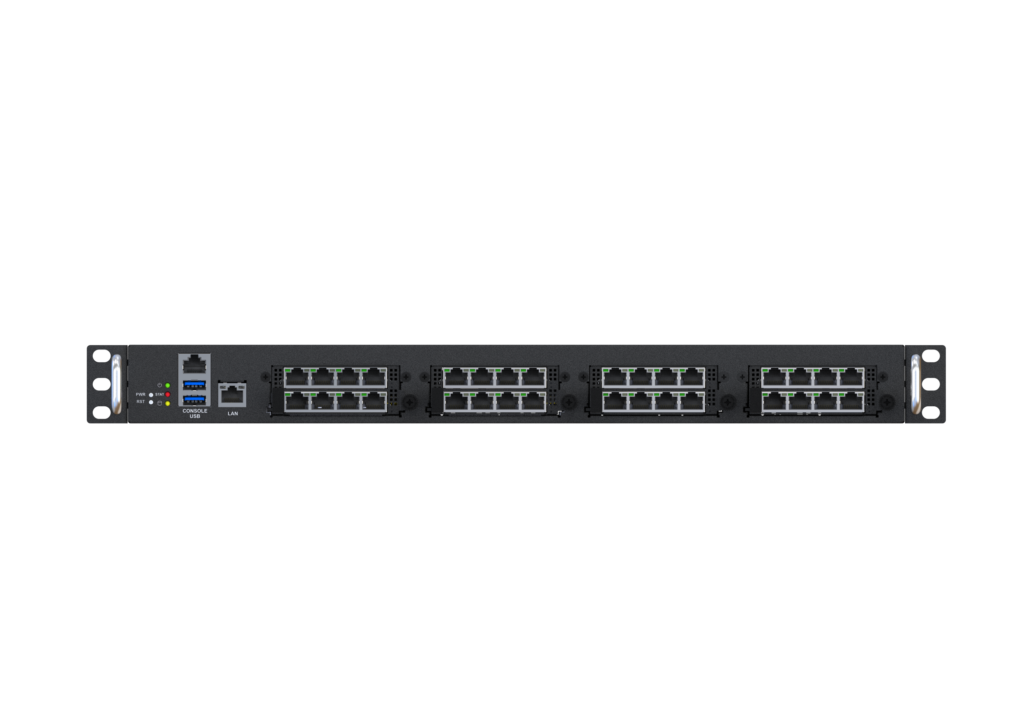

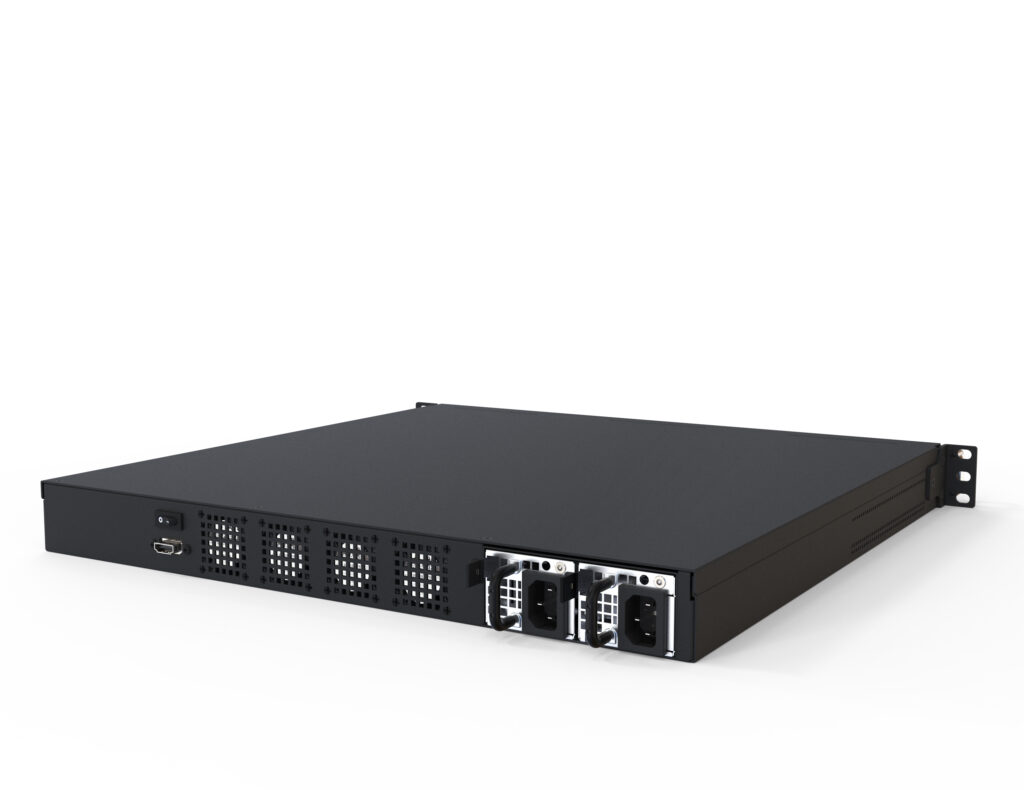

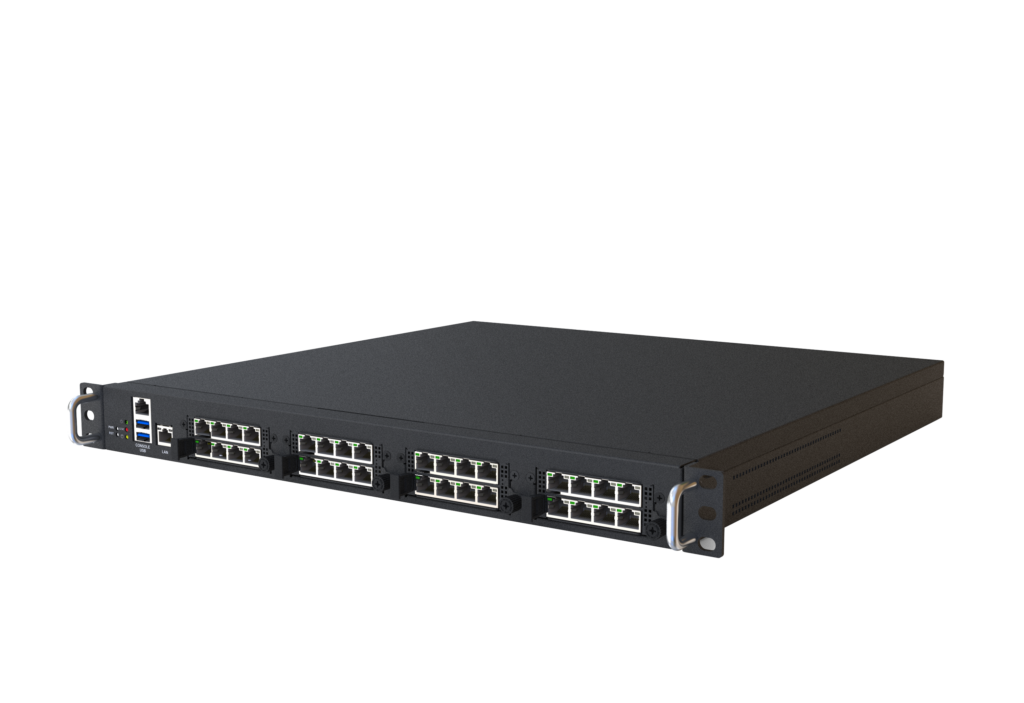

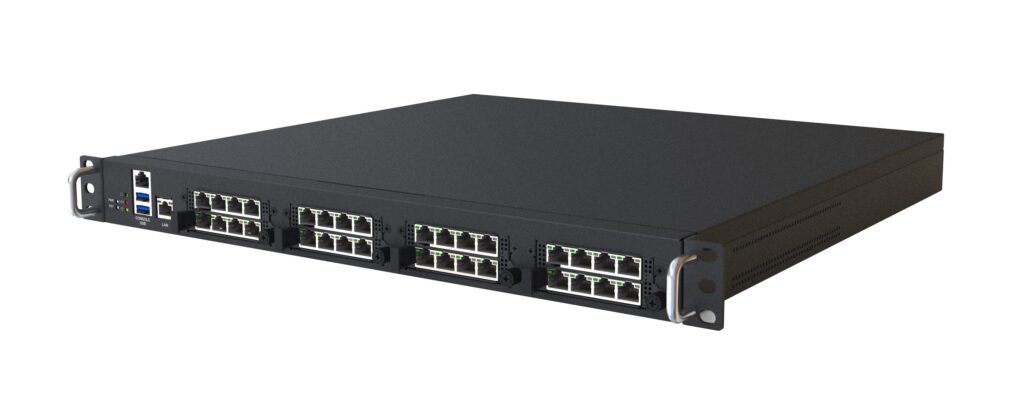

PNSR-4000
1U Network Appliance based on Intel® Core™ Ultra Processors (Series 2) (codenamed Arrow Lake-S) Featuring 4x OCP NIC 3.0 slots
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | 1U 19" Rackmount |
|---|---|
| CPU | Intel® Core™ Ultra Processors (Series 2) (codenamed Arrow Lake-S) Up to 24 cores Chipset: W880 and Q870 |
| BIOS | AMI Aptio® V UEFI BIOS |
| IPMI | N/A |
| System Memory | Total 4 DIMMs (2DPC) (1DPC)2x DDR5 6400MHz UDIMM, up to 96GB (2DPC)4x DDR5 5600MHz UDIMM, up to 192GB W880 supports ECC memory |
| Expansion | OCP NIC 3.0 slots (extended depth):2x PCIe Gen5 x8 from CPU2x PCIe Gen4 x4+x4 from PCH PCIe slot:1x PCIe Gen4 x4 (with W880 PCH) M.2:1x M.2 Key B 3052 socket with dual SIM card slots (USB)1x M.2 Key E 2230 socket (PCIe) |
| Ethernet Ports | 1x GbE RJ45 MGMT via Intel® Ethernet Controller I226 |
| Storage | 2x M.2 Key M 2280/2242 sockets (NVMe) |
| Power Supply | 500W Single AC Power Supply or 300W Redundant AC Power Supply AC 100V-240V @47Hz-63Hz |
| Cooling | CPU: Passive heatsink System:5x smart fans (*Subject to change) |
| Security | Optional TPM 2.0 |
| OS Support | Linux |
| Dimension | 438mm (W) x 442.75mm (D) x 44mm (H) 17.24" (W) x 17.43" (D) x 1.73" (H) |
| Serial Port | 1x RJ45 Console port |
| USB | 2x USB 3.2 Gen 2x1 ports, Type A2x USB 3.2 Gen2 x1 headers onboard |
| LCD Panel | N/A |
| Display | 1x HDMI 2.1 connector at rear I/O |
| LED | Power/Status/HDD LEDs |
| Power | Front:1x Power button1x Reset button Rear:1x 500W single AC Power Supply or1x 300W Redundant AC Power Supply |
| Operating Environment | 0°C to 40°C (32°F to 104°F) |
| Storage Environment | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Certification | CE/FCC Compliance |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| PNC Series NICs | Portwell-designed PNC series of OCP NIC 3.0 network adapters (Bypass function available via select SKUs) *Please refer to product datasheet for additional ordering information. | ||
| 510-25-0007 | PNSR-4000 | 1U Network Appliance Based on Intel Core Ultra Series 2_W880 PCH, 500W PSU | add to list – PNSR-4000 |
| 510-25-0017 | PNSR-4000 | 1U Network Appliance Based on Intel Core Ultra Series 2_W880 PCH, 300W 1+1 PSU | add to list – PNSR-4000 |
