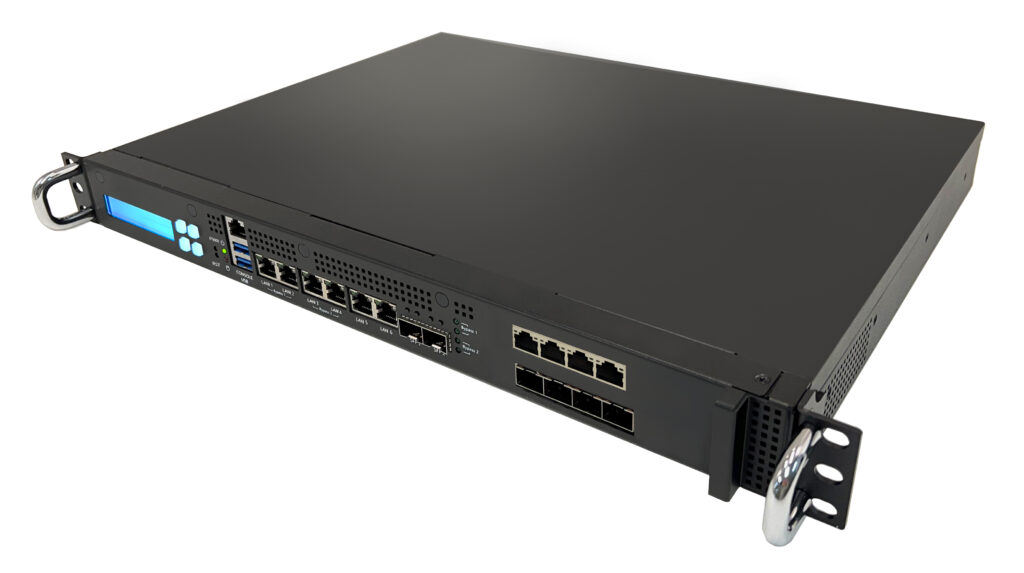

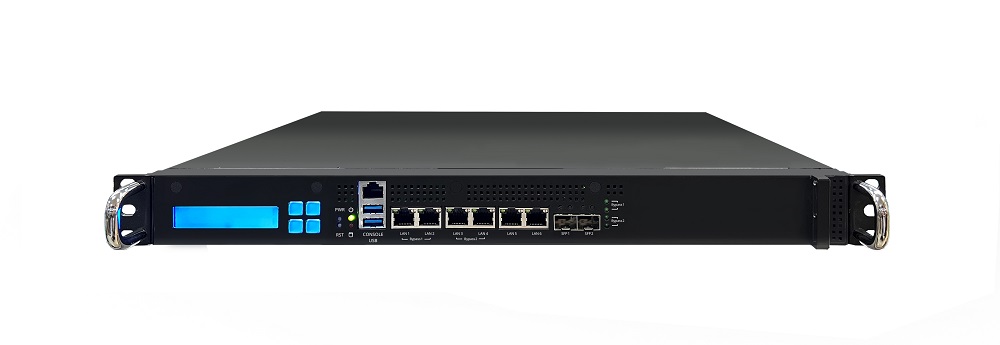

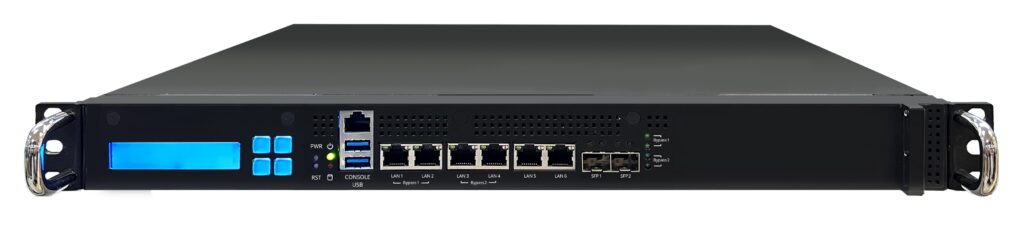

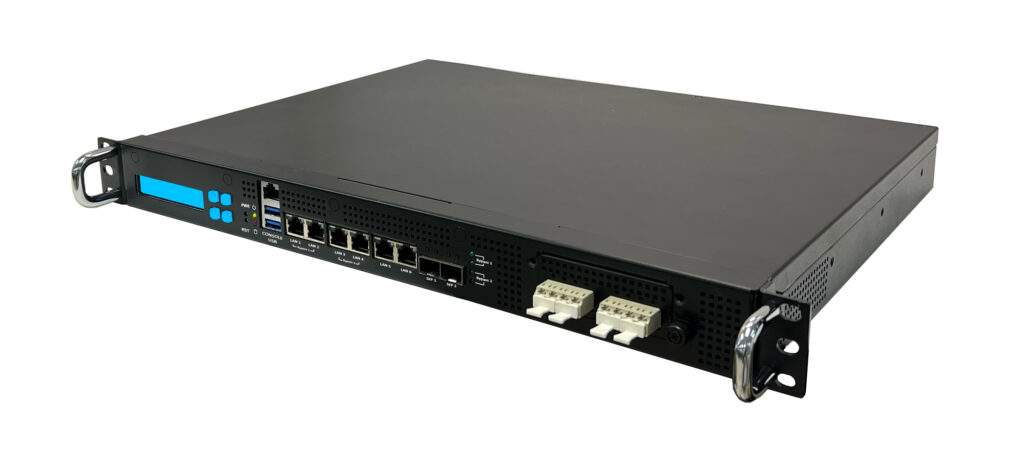

PNSR-5000
1U Rackmount Network Appliance based on Intel® Xeon® D-1800/D-1700 Series Processor, supports 16 PCIe Gen 4 lanes
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | 1U 19" Rackmount |
|---|---|
| CPU | Intel® Xeon® D-1800/D-1700 Series SoC Up to 10 cores, 90W TDP |
| BIOS | AMI Aptio® V UEFI BIOS |
| IPMI | N/A |
| System Memory | Total 4 DIMMs (2DPC) (1DPC)2x DDR4 2933MHz ECC LRDIMM, up to 128GB (2DPC)4x DDR4 2933MHz ECC RDIMM, up to 256GB |
| Expansion | OCP NIC 3.0 slot (extended depth) or PCIe slots: - Optional1x OCP NIC 3.0 (PCIe Gen4 x16) - Optional1x PCIe Gen4 x16 (or 2 x8 via riser card), FH HL M.2: -1x M.2 Key E 2230 socket (USB) -1x M.2 Key B 3052 socket with dual SIM card slots (USB, SATA) (Optional) Intel® Virtual RAID on CPU (Intel VROC) support for NVMe SSDs via adapter card |
| Ethernet Ports | -2x 10/25GbE SFP+/SFP28, Max 50Gbps throughput -6x 2.5GbE RJ45 via Intel® Ethernet Controller I226, supporting 2 pairs bypass |
| Storage | 2x 2.5” SATA 3.0 HDD/SSD1x M.2 Key M 2280 socket (NVMe or SATA) (Optional) Intel® VROC support via M.2 adapter card |
| Power Supply | 300W Redundant AC Power Supply AC 100V-240V @47Hz-63Hz |
| Cooling | CPU: Passive heatsink System:3x fans |
| Security | Onboard TPM 2.0 |
| OS Support | Linux |
| Dimension | 438mm (W) x 362.7mm (D) x 44mm (H) 17.24" (W) x 14.28" (D) x 1.73" (H) |
| Serial Port | 1x RJ45 Console port |
| USB | 2x USB 3.2 Gen 1 ports, Type A2x USB 2.0 headers onboard |
| LCD Panel | (Optional) 2x16 characters,4x keypads |
| Display | 1x HDMI connector at rear I/O |
| LED | Power/HDD LEDs4x RJ45 bypass status LEDs4x SFP28 port LEDs |

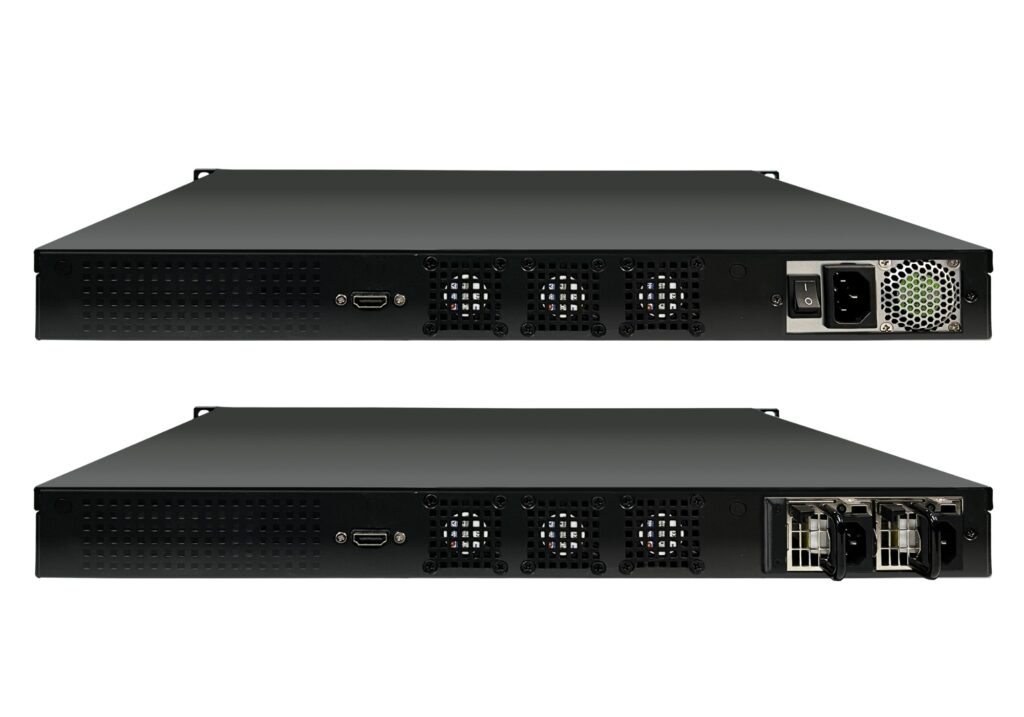

| Power | Front:1x Power button1x Reset button Rear:2x AC/DC power inlets (select models) |
| Operating Environment | 0°C to 40°C (32°F to 104°F ) |
| Storage Environment | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Certification | CE/FCC Compliance |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| PNC Series NICs | Portwell-designed PNC series of OCP NIC 3.0 network adapters (Bypass function available via select SKUs) *Please refer to product datasheet for additional ordering information. | ||
| 500-24-0009R2 | PNSR-5000 | PCle Chassis with LCM | add to list – PNSR-5000 |
| 500-24-0010R2 | PNSR-5000 | Dual OCP Chassis with LCM | add to list – PNSR-5000 |
