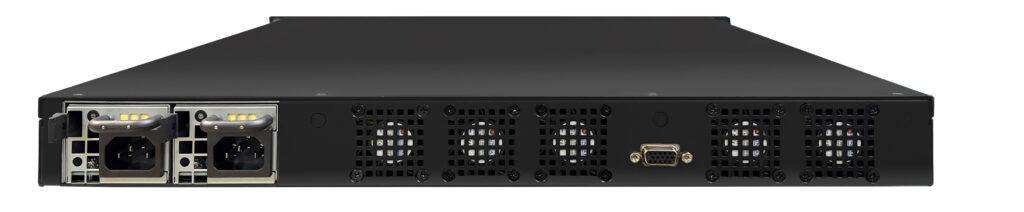

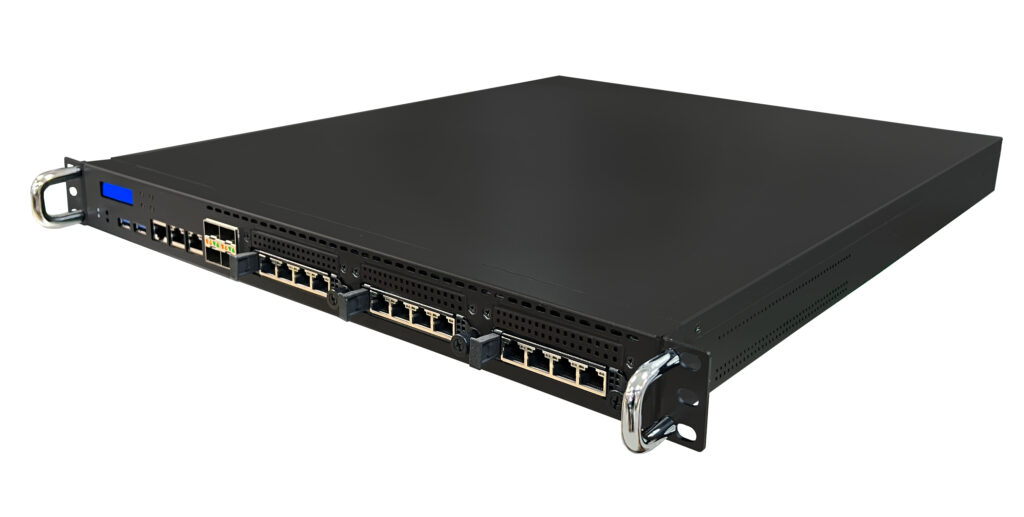

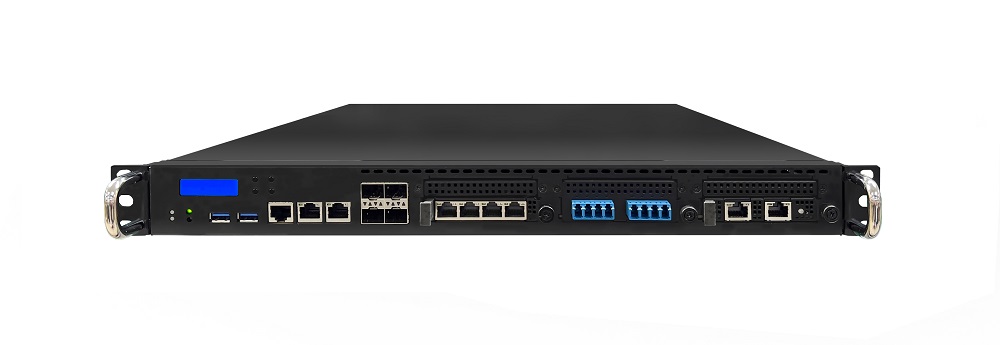

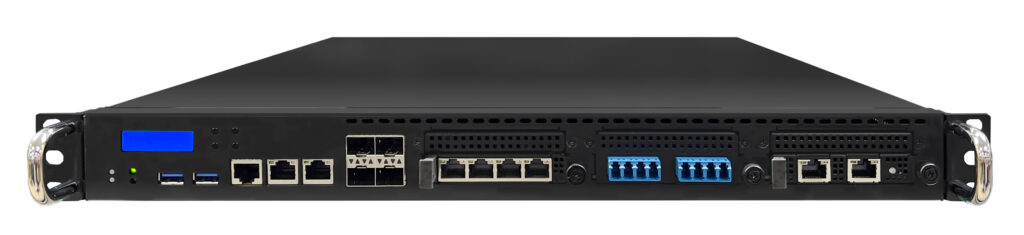

PNSR-5001
1U Network Appliance based on Intel® Xeon® D-2800/D-2700 Series SoC, Featuring 4x 25GbE SFP28, 3x OCP NIC 3.0 slots and BMC
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | 1U 19" Rackmount |
|---|---|
| CPU | Intel® Xeon® D-2800/D-2700 Series Processors Up to 22 cores, 135W TDP |
| BIOS | AMI Aptio® V UEFI BIOS |
| IPMI | AST2500 BMC Firmware: AMI |
| System Memory | Total 8 DIMMs (2DPC) (1DPC)4x DDR4 3200MHz ECC/Non-ECC RDIMM/LRDIMM/UDIMM, up to 512GB (2DPC)8x DDR4 2933MHz ECC/Non-ECC RDIMM/LRDIMM/UDIMM, up to 1024GB |
| Expansion | OCP NIC 3.0 slots (extended depth): -2x PCIe Gen4 x16 from CPU -1x PCIe Gen3 x8 from HSIO M.2: -1x M.2 Key B 3052 socket with dual SIM card slots (PCIe, SATA, USB) -1x M.2 Key E 2230 socket (PCIe) |
| Ethernet Ports | 4x 10/25GbE SFP+/SFP28, Max 100Gbps throughput1x GbE RJ45 MGMT via Intel® Ethernet Controller I2101x GbE RJ45 IPMI |
| Storage | 2x 2.5” SATA 3.0 HDD/SSD1x M.2 Key M 2280 socket (NVMe) Supports Intel® VROC |
| Power Supply | 600W Redundant AC Power Supply AC 100V-240V @47Hz-63Hz |
| Cooling | CPU: Passive heatsink System:5x fans |
| Security | Onboard TPM 2.0 |
| OS Support | Linux |
| Dimension | 438mm (W) x 524mm (D) x 44mm (H) 17.24" (W) x 20.63" (D) x 1.73" (H) |
| Serial Port | 1x RJ45 Console port |
| USB | 2x USB 3.2 Gen 1 ports, Type A3x USB 2.0 headers onboard |
| LCD Panel | (Optional) 2x16 characters,4x keypads |
| Display | 1x VGA header at rear I/O |
| LED | Power/HDD LEDs |
| Power | Front:1x Power button1x Reset button Rear:2x AC/DC power inlets (select models) |
| Operating Environment | 0°C to 40°C (32°F to 104°F ) |
| Storage Environment | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Certification | CE/FCC Compliance |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| PNC Series NICs | Portwell-designed PNC series of OCP NIC 3.0 network adapters (Bypass function available via select SKUs) *Please refer to product datasheet for additional ordering information. | ||
| 510-24-0020 | PNSR-5001 | Chassis with LCM, 600W RPSU, Heatsink | add to list – PNSR-5001 |
