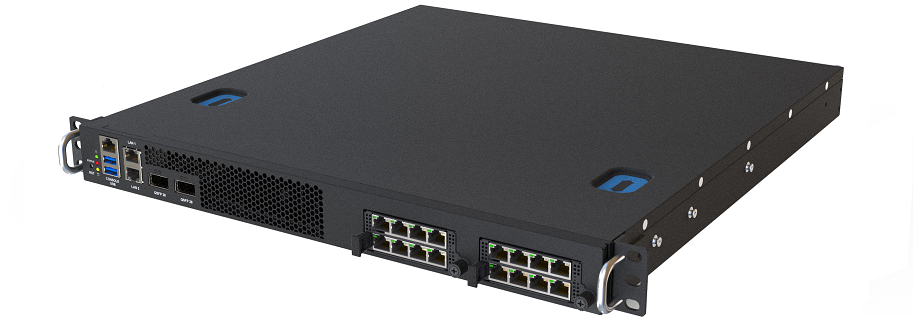

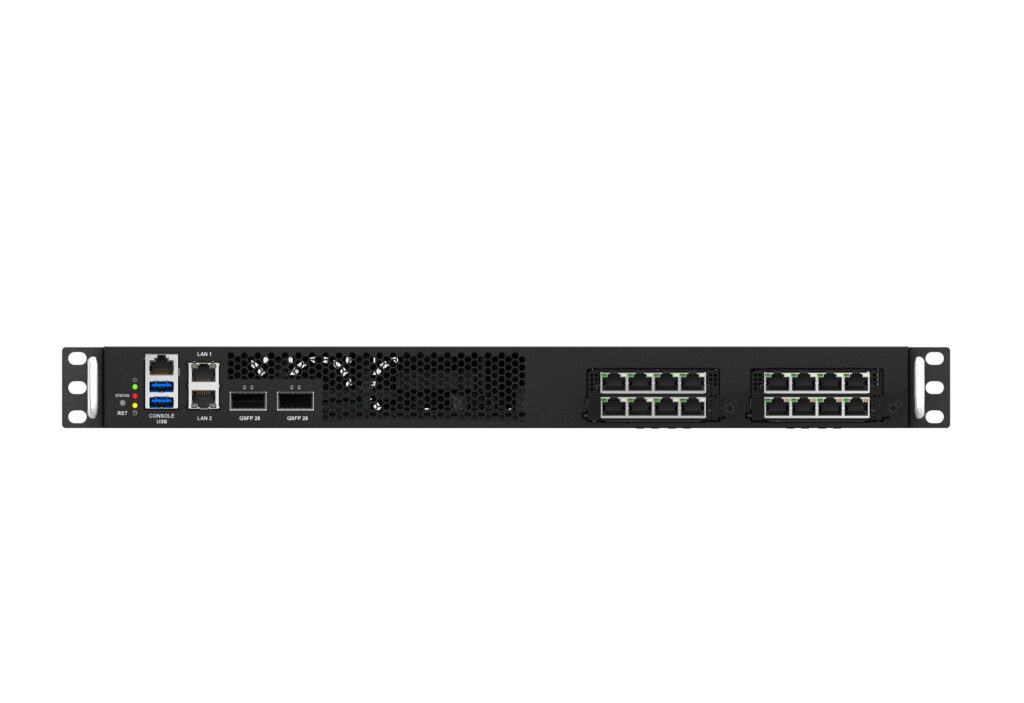

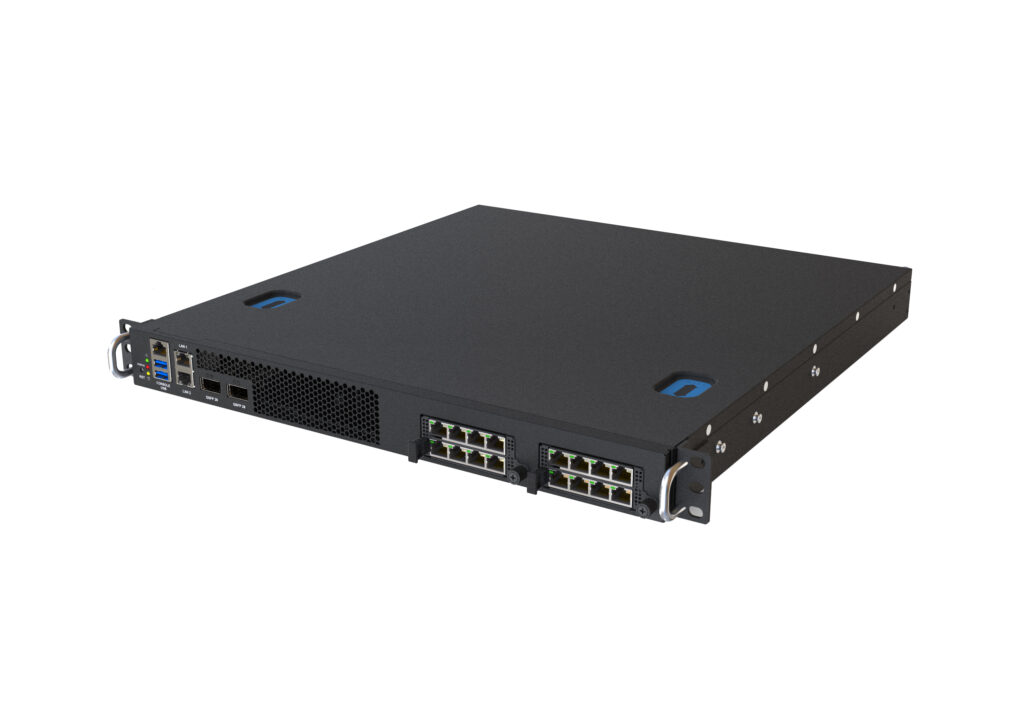

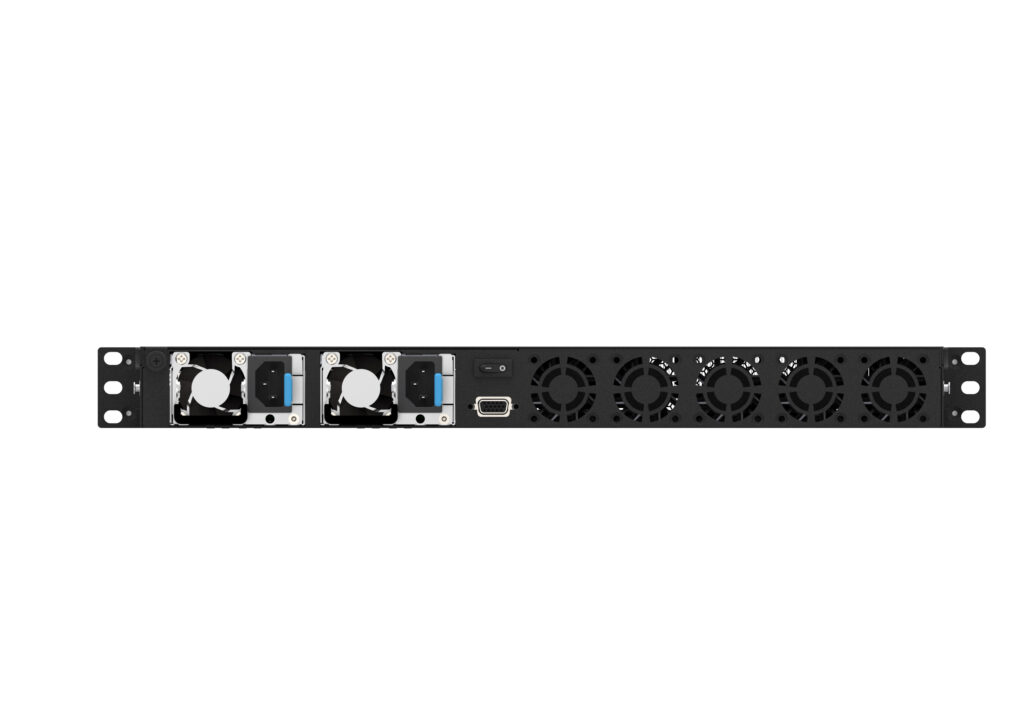

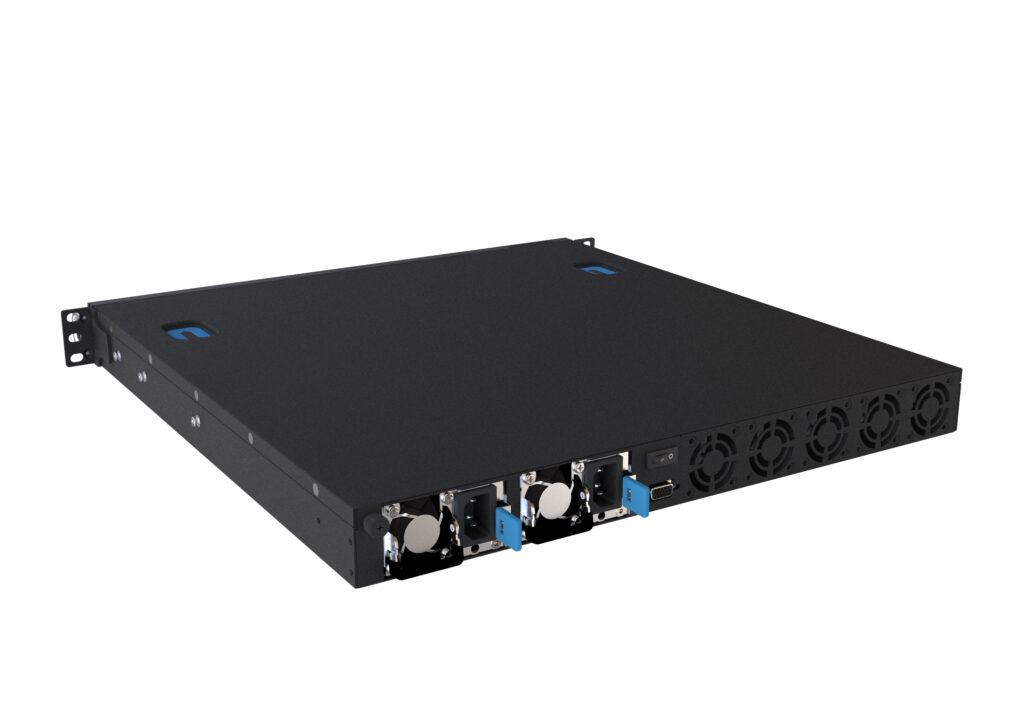

PNSR-5002
1U Network Appliance based on Intel® Xeon® 6 SoC (codenamed Granite Rapids-D) Featuring Onboard 2x100GbE QSFP28, 2x OCP NIC 3.0 slots and BMC
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | 1U 19" Rackmount |
|---|---|
| CPU | Intel® Xeon® 6 SoC (codenamed Granite Rapids-D) HCC: up to 42 cores, 235W TDP |
| BIOS | AMI Aptio® V UEFI BIOS |
| IPMI | AST2600 BMC Firmware: OpenBMC |
| System Memory | Total 8 DIMMs (2DPC) HCC: (1DPC)4x DDR5 6400MHz ECC RDIMM, up to 512GB (2DPC)8x DDR5 5200MHz ECC RDIMM, up to 1024GB |
| Expansion | OCP NIC 3.0 slots (extended depth):2x PCIe Gen5 x16 M.2:1x M.2 Key B 3052 socket with dual SIM card slots (PCIe, USB)2x M.2 Key M |
| Ethernet Ports | - 2x100GbE QSFP28, Max 200Gbps throughput -1x GbE RJ45 MGMT via Intel® Ethernet Controller I210 -1x GbE RJ45 IPMI |
| Storage | 2x M.2 Key M 2280 socket (NVMe) Supports Intel® VROC |
| Power Supply | 800W 1+1 CRPS Redundant Power Supply AC 100V-240V @47Hz-63Hz |
| Cooling | CPU: Passive heatsink System:4x fans (*Subject to change) |
| Security | Optional TPM 2.0 |
| OS Support | Linux |
| Dimension | 438mm (W) x 464mm(D) x 44mm (H) 17.24" (W) x 18.27" (D) x 1.73" (H) |
| Serial Port | 1x RJ45 Console port |
| USB | 1x USB 3.2 Gen 2x1 port, Type A1x USB 2.0 header onboard |
| LCD Panel | N/A |
| Display | 1x VGA header at rear I/O |
| LED | Power/Status/HDD LEDs System ID LED |
| Power | Front:1x Reset button Rear:1x Power switch2x AC/DC power inlets (select models) |
| Operating Environment | 0°C to 40°C (32°F to 104°F) |
| Storage Environment | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Certification | CE/FCC Compliance |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| PNC Series NICs | Portwell-designed PNC series of OCP NIC 3.0 network adapters (Bypass function available via select SKUs) *Please refer to product datasheet for additional ordering information. | ||
| 510-25-0017 | PNSR-5002 | 1U Network Appliance based on Intel® Xeon® 6 SoC | add to list – PNSR-5002 |
Explore Our products
More in this category
Rackmount Network Appliance
PNAC-32300
1 U Rackmount System with Intel® Amston Lake x7809C(8C) Processor for SD-WAN solution
Rackmount Network Appliance

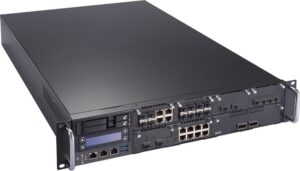

PNAC-72720
