PNSR-6000

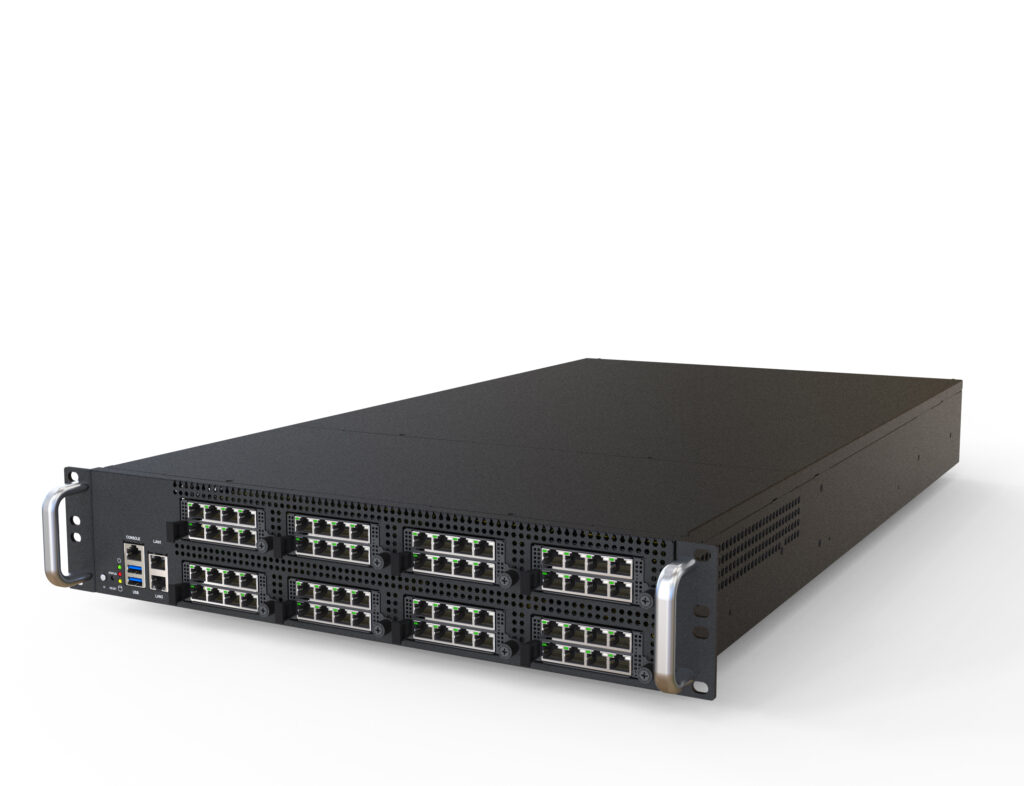

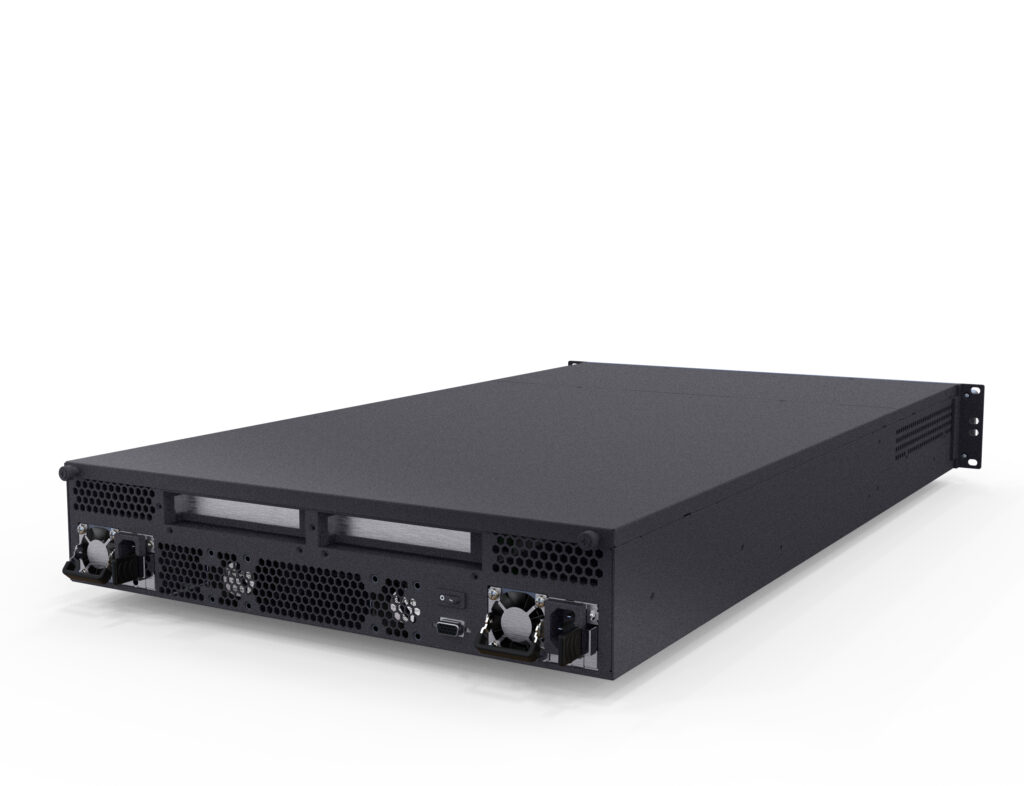

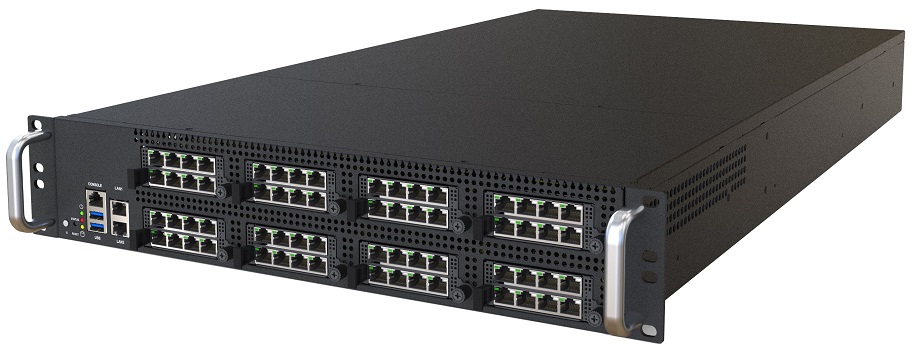

2U Network Appliance based on Dual Intel® Xeon® 6 Processors (codenamed Birch Stream Platform) Featuring 8x OCP NIC 3.0 slots and BMC
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | 2U 19" Rackmount |
|---|---|
| CPU | Dual processors Intel® Xeon® 6700 Series Processors with E-Cores Up to 144 Cores, 330W TDP per CPU Future Intel® Xeon® 6 Processors with P-Cores |
| BIOS | AMI Aptio® V UEFI BIOS |
| IPMI | AST2600 BMC Firmware: AMI |
| System Memory | Total 32 DIMMs (2DPC) (1DPC)16x DDR5 6400MHz ECC RDIMM, up to 4TB (2DPC)32x DDR5 5200MHz ECC RDIMM, up to 4TB |
| Expansion | OCP NIC 3.0 slots (extended depth): -4x PCIe Gen5 x16 from CPU#0 -4x PCIe Gen5 x16 from CPU#1 PCIe slots: -1x PCIe Gen5 x16 from CPU#0, FH 3/4L -1x PCIe Gen5 x16 from CPU#1, FH 3/4L |
| Ethernet Ports | 1x GbE RJ45 MGMT via Intel® Ethernet Controller I2101x GbE RJ45 IPMI |
| Storage | 1x M.2 Key M 2280 socket (NVMe) Supports Intel® VROC |
| Power Supply | 2000W 1+1 CRPS Redundant Power Supply AC 100V-240V @47Hz-63Hz |
| Cooling | CPU: Passive 2U/2U EVAC heatsink System:7x fans |
| Security | Optional TPM 2.0 Intel® Platform Firmware Resilience (PFR) |
| OS Support | Linux |
| Dimension | 438mm (W) x 800*mm (D) x 88 mm (H) 17.24" (W) x 31.50"* (D) x 3.46" (H) *Subject to change |
| Serial Port | 1x RJ45 Console port |
| USB | 2x USB 3.2 Gen 1 ports, Type A1x USB 2.0 header onboard |
| LCD Panel | (Optional) 2x16 characters,4x keypads |
| Display | 1x VGA header at rear I/O |
| LED | Power/Status/Storage LEDs System ID LED |

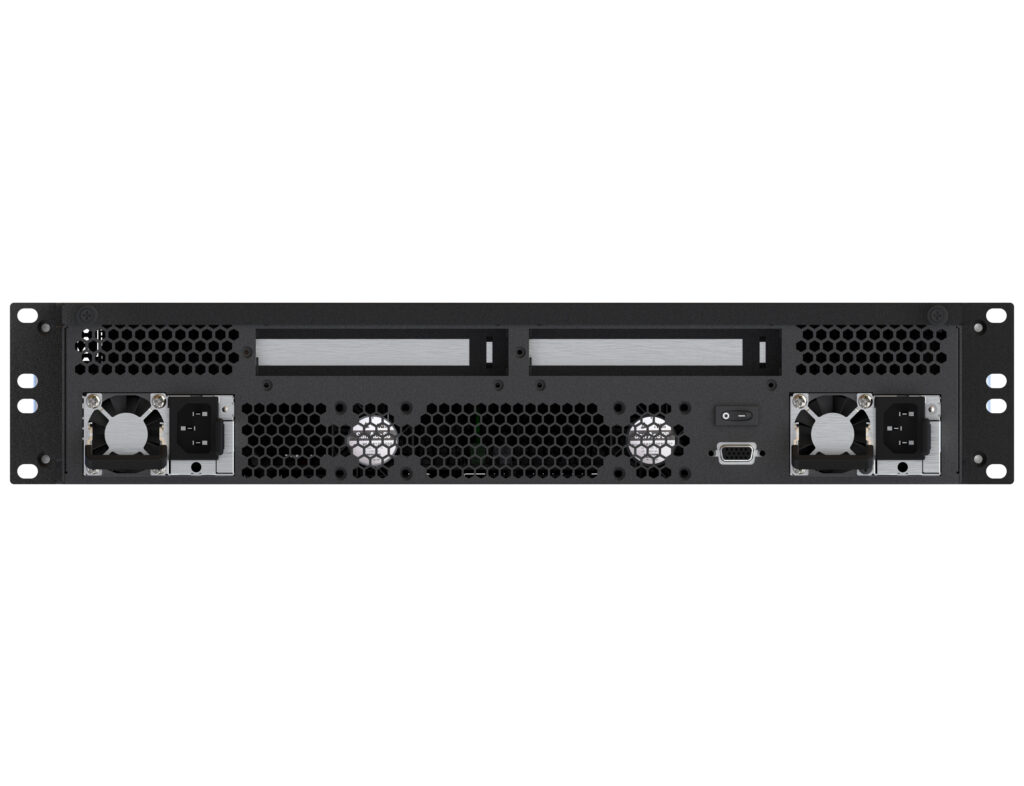

| Power | Front:1x Reset button Rear:1x Power switch2x AC power inlets for CRPS |
| Operating Temperature | 0°C to 40°C (32°F to 104°F ) |
| Storage Temperature | -20°C to 70° C (-4°F to 158°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Certification | CE/FCC Compliance |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| In-process | PNSR-6000 | 2U Network Appliance based on Dual Intel® Xeon® 6 Processors | add to list – PNSR-6000 |
| PNC Series NICs | Portwell-designed PNC series of OCP NIC 3.0 network adapters (Bypass function available via select SKUs) *Please refer to product datasheet for additional ordering information. |
