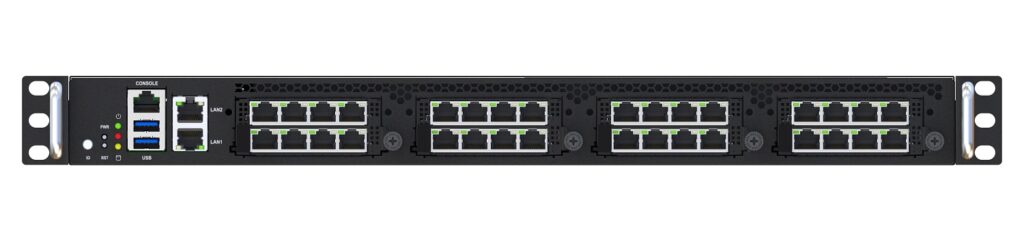

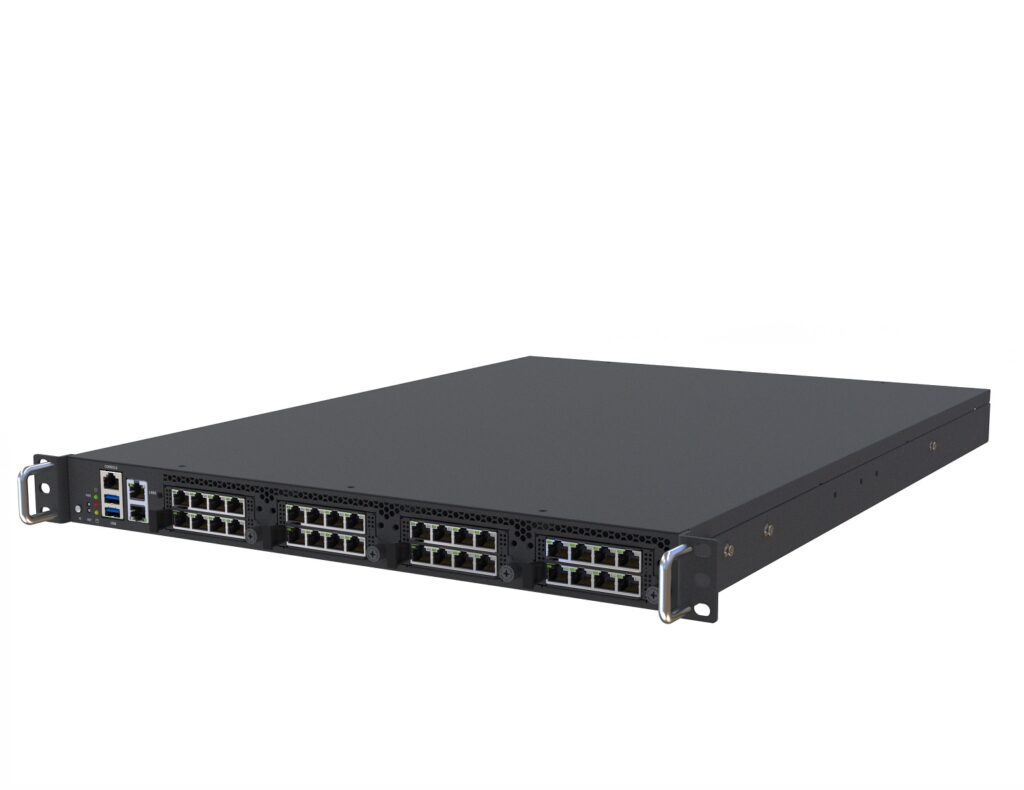

PNSR-6001
1U Network Appliance based on Single Intel® Xeon® 6 Processor (codenamed Birch Stream Platform) Featuring 4x OCP NIC 3.0 slots and OpenBMC & PFR
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | 1U 19" Rackmount |
|---|---|
| CPU | Single processor Intel® Xeon® 6700 Series Processors with E-Cores up to 144 Cores, 330W TDP per CPU Intel® Xeon® 6700/6500 Series Processors with P-Cores up to 86 Cores, 350W TDP per CPU |
| BIOS | AMI Aptio® V UEFI BIOS |
| IPMI | AST2600 BMC Firmware: OpenBMC |
| System Memory | Total 8 DIMMs (1SPC) (1DPC)8x DDR5 6400MHz ECC RDIMM, up to 1024GB |
| Expansion | OCP NIC 3.0 slots (extended depth): -4x PCIe Gen5 x16 from CPU#0 |
| Ethernet Ports | 2x 10GbE RJ45 MGMT via Intel® Ethernet Controller E610-XAT2 (with NCSI) |
| Storage | 2x M.2 Key M 2280 socket (NVMe) Supports Intel® VROC |
| Power Supply | 1300W 1+1 CRPS Redundant Power Supply AC 100V-240V @47Hz-63Hz |
| Cooling | CPU: Passive 1U heatsink System:6x fans |
| Security | Optional TPM 2.0 Intel® Platform Firmware Resilience (PFR) |
| OS Support | Linux |
| Dimension | 438mm (W) x 600mm (D) x 44 mm (H) 17.24" (W) x 23.62" (D) x 1.73" (H) |
| Serial Port | 1x RJ45 Console port |
| USB | 2x USB 3.0, Type A2x USB 3.0 header onboard |
| LCD Panel | N/A |
| Display | 1x Mini DP connector at rear I/O |
| LED | Power/Status/Storage LEDs System ID LED |

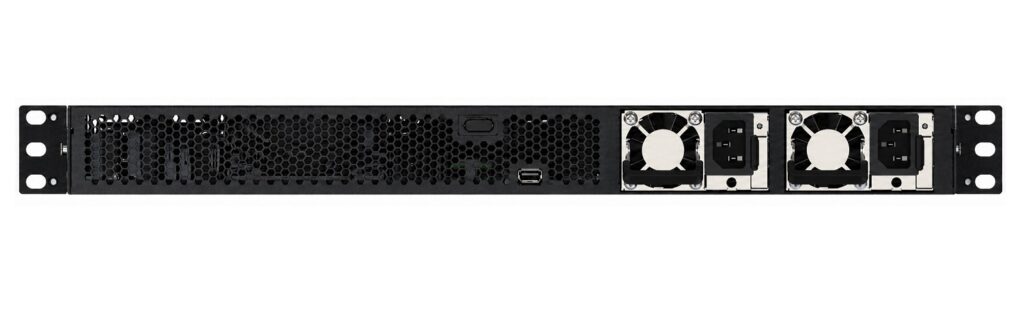

| Power | Front:1x Power button1x Reset button Rear:1x Power switch2x AC power inlets for CRPS |
| Operating Temperature | 0°C to 40°C (32°F to 95°F ) |
| Storage Temperature | -20°C to 70° C (-4°F to 158°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Certification | CE/FCC Compliance |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| PNC Series NICs | Portwell-designed PNC series of OCP NIC 3.0 network adapters (Bypass function available via select SKUs) *Please refer to product datasheet for additional ordering information. | ||
| 510-26-0007 | PNSR-6001 | 1U Network Appliance based on Single Intel Xeon 6 Processor | add to list – PNSR-6001 |
