PQ7-M107

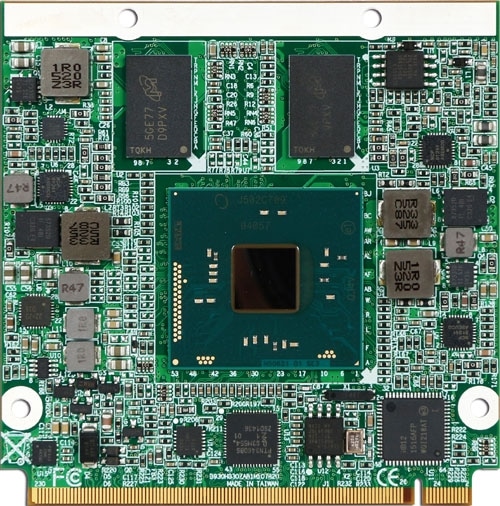

Intel Celeron and Pentium Processor N3000 based Qseven Module Braswell SoC
- Intel ® Celeron ® and Pentium ® processor N3000 product families (4W~10W), formerly codenamed Braswell
- On-board DDR3L DRAM and up to 4GB
- On-board eMMC up to 64GB
- Support LVDS and DisplayPort (DP) interfaces
- Three Gen 2.0 PCI Express x1 (optional to four x1), USB 2.0/3.0, 2x SATA III, I2C/Smart Battery function
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Intel ® Pentium ® Processor N3700 (4 x 1.60 GHz, 2 MB L2, 6 W) Intel ® Celeron ® Processor N3150 (4 x 1.60 GHz, 2 MB L2, 6 W) Intel ® Celeron ® Processor N3050 (2 x 1.60 GHz, 2 MB L2, 6 W) Intel ® Celeron ® Processor N3000 (2 x 1.04 GHz, 2 MB L2, 4 W) |
|---|---|
| Format | Qseven |
| Chipset | SoC (System-On-Chip) |
| DRAM | Up to 4 GB DDR3L-1600 soldered on board |
| Graphic Controller | Intel ® HD Graphics Gen8 |
| Display Interface | 2x (support DP or HDMI ® ), mapped via DDI, VGA, dual channel 24bit LVDS (eDP to LVDS) |
| Storage | 1x SDIO,2x SATA II (3.0 Gbit/s) |
| Network | 1x Gigabit Ethernet Intel ® I210IT |
| Bus Interface | 3x PCIe x 1 (Option to 4) |
| Serial Interface | 1x Tx/Rx/CTS#/RTS# signals (Qseven R2.0) |
| USB | 4x USB 2.0, Up to1x USB 3.0 |
| Audio | 1x Intel ® High Definition Audio, 51 Audio codec |
| Miscellaneous | Watchdog Timer, HW monitoring CPU, system temperature, fan |
| Firmware | Phoenix UEFI BIOS |
| Power Requirement | +5V DC ±5% |
| Power from W | depends on used CPU |
| Extended Temperature | -40 °C to +85 °C |
| Dimensions | 70×70 mm |
| Operating Temperature | -40 °C to +85 °C |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB7-3050Z | PQ7-M107-N3710-4G-8G | (4C. 2M. 1.6GHz. 6watts) QSeven Module Board. Atom Braswell CPU. DDR3L | add to list – PQ7-M107-N3710-4G-8G |
| Contact us | PQ7-M107-N3xxx-xG-xG | With chosen memory and eMMC capacity | add to list – PQ7-M107-N3xxx-xG-xG |
