PQ7-M108

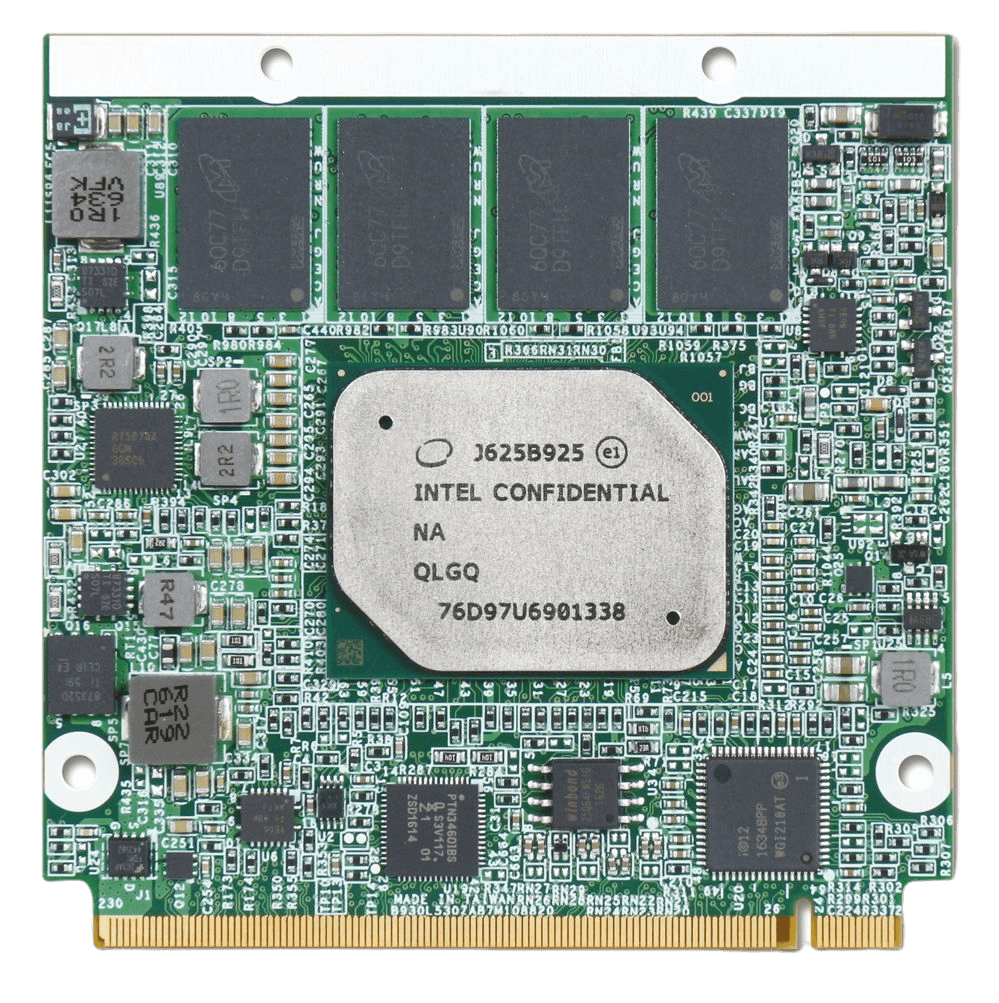

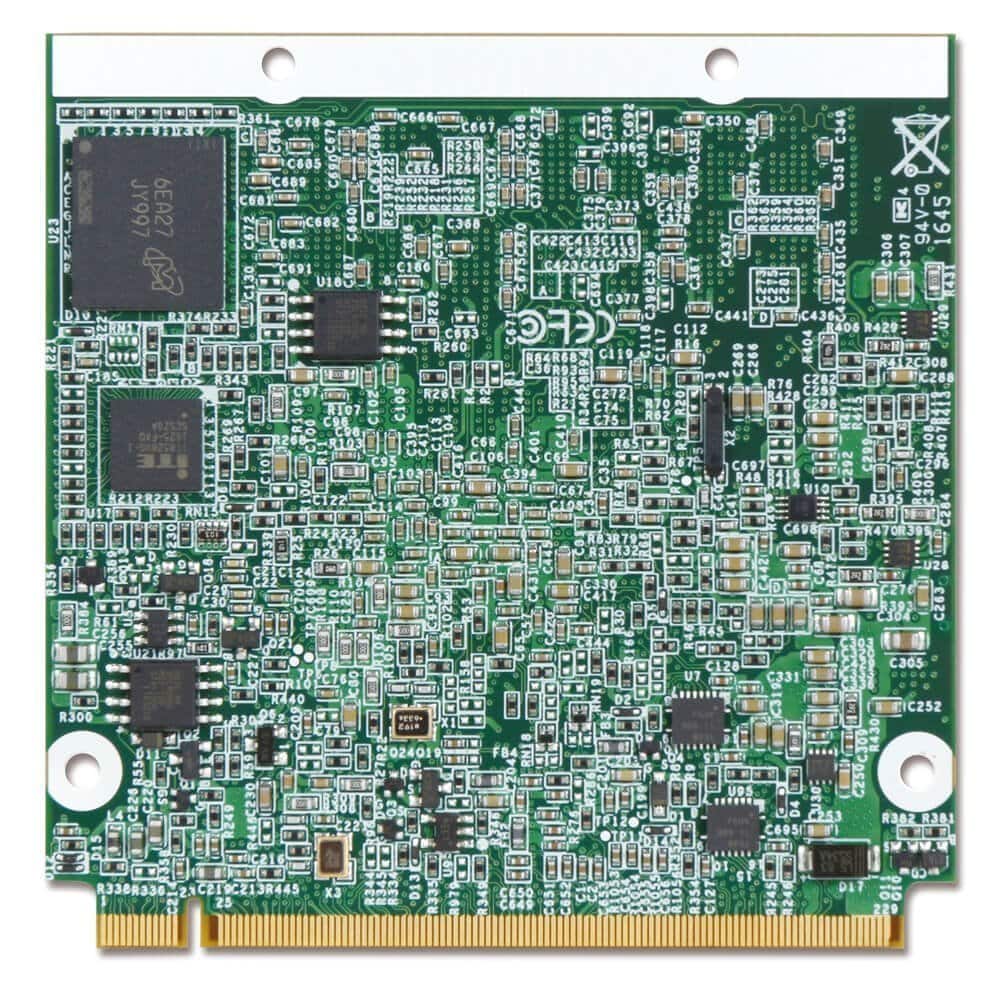

Qseven module by Qseven 2.1 based on Intel® Atom® / Pentium® / Celeron processors (Apollo Lake) with LPDDR4 SDRAM up to 8GB, 24bit LVDS, DP/HDMI®
- On Board LPDDR4 DRAM and up to 8GB
- 24-bit LVDS, HDMI ® /DP output
- Four PCI Express lanes
- Support three USB 3.0 or four USB 2.0
- On Board eMMC 5.0 (Optional)
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Intel Atom ® x5-E3930 Processor (2 x 1.30 GHz, 2 MB L2, 6.5 W) Intel Atom ® x5-E3940 Processor (4 x 1.60 GHz, 2 MB L2, 9.5 W) Intel Atom ® x7-E3950 Processor (4 x 1.60 GHz, 2 MB L2, 12 W) Intel ® Celeron ® Processor N3350 (2 x 1.10 GHz, 2 MB L2, 6 W) Intel ® Pentium ® Processor N4200 (4 x 1.10 GHz, 2 MB L2, 6 W) |
|---|---|
| Format | Qseven ® 2.1,70 x 70 mm |
| Chipset | SoC (System-On-Chip) |
| DRAM | Up to 8GB LPDDR4 ~ 2133/2400, Dual Memory Channel |
| Display Interface | LVDS/eDP, DP/HDMI ® |
| Storage | Up to 64 GB onboard eMMC 5.0 flash |
| Network | 1x 10/100/1000 GbE (Intel ® i210) |
| Bus Interface | 1x SDIO,2x SPI,1x I²C,1x HDA,1x SMBus,1x LPC,1x UART,1x WDT,1x JTAG |
| Serial Interface | 2x SATA 3.0 (6 Gb/s);4x PCIe x1 Gen2 |
| USB | 3x USB 3.04x USB 2.0 |
| Dimensions | 70×70 mm |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Details |
|---|---|---|
| AB7-3019Z | PQ7-M108-N3350-4G-8G | add to list – PQ7-M108-N3350-4G-8G |
| AB7-3054Z | PQ7-M108-N4200-4G-8G | add to list – PQ7-M108-N4200-4G-8G |
| Contact us | PQ7-M108-E39xx-xG-xG | add to list – PQ7-M108-E39xx-xG-xG |
| B8308940 (for N3350/N4200 ) B8309030 (for E3930/E3940/E3950) | Heat Spreader | add to list – Heat Spreader |
| B8308970 (for N3350/N4200) B8308980 (for E3930/E3940/E3950) | Heat Sink Set | add to list – Heat Sink Set |
| AB1-3B45 | PQ7-C201 | add to list – PQ7-C201 |
