PQ7-M640F
Freescale iMX6 Family based Qseven Module Board for Mini-ITX
- Freescale i.MX 6 Family, single, dual and quad-core processors (ARM Cortex A9), up to 1.2GHz
- up to 4GB DDR3 onboard memory
- 1 x micro SD socket
- 1 x on Board 4G eMMC
- 1 x LVDS Dual Channel or 2 x LVDS Single Channel 18/24 bit interface (resolution up to 1920 x 1200)
Platform Overview
About this series
Qseven module based on Freescale™ i.MX6 family, ARM™ Cortex-A9, Solo / Dual / Quad core processor with onboard 1GB DDR3 (up to 2GB), PCIe 1-lane interface, VGA, HDMI®, single LVDS 1-ch or dual LVDS (18/24-bit) 2-ch and CAN Bus.

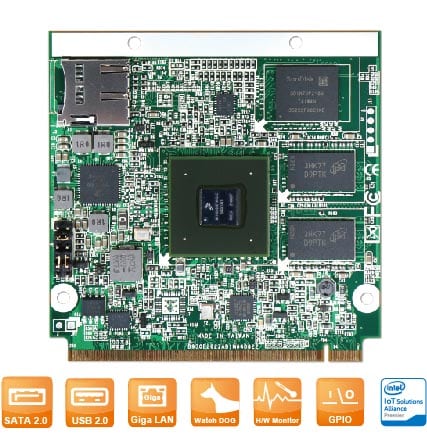

Portwell PQ7-M640F (6Q, 6D, 6S) is design as CPU module with series of Qseven® form factor. It is based on embedded Freescale™ i.MX6 processor, an ARM® Cortex®-A9 processor, Single-, Dual- and Quad-Core. In connection with external standard IO device, a 80-pin Carrier board PQ7-C100ARM is suggested for the following expansion purpose: 3x UART, 2x I2C, 1x Keypad, 1x CAN bus, interfaces of 1x RGB parallel LCD, 1x MIPI-DSI, 2x MIPI-CSI for camara, 1x SPDIF, 1x ESAI audio and 4x PWM.
| AB1-3A50Z | PQ7-M640F, CPU Module board (Quad core) |
| AB9-3243Z | PQ7-C100ARM, I/O Carrier board |
| By project | PQ7-M620F, CPU Module board (Dual core) |
| By project | PQ7-M610F, CPU Module board (Single core) |
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Technology | ARM |
|---|---|
| Format | Qseven |
| Type | module |
| Chipset | SoC (System-On-Chip) |
| DRAM | on board DDR3 Up to 2GB |
| Graphic Controller | integrated |
| Storage | onboard eMMC 5.0 flash up to 64 GB, onboard mSD socket |
| Network | 1x 10/100/1000 GbE |
| Bus Interface | 1x SDIO,2x SPI,2x I²C,1x I²S,1x HDA (share w/I²S),2x CANBus,4x UART,2x GPIO |
| Serial Interface | 1x SATA 2.0 (3 Gb/s);1x PCIe x1 Gen2 |
| USB | 5x USB2.0 HOST,1x USB2.0 OTG |
| Firmware | Kernel 3.14.28_Uboot 2014.04 |
| OS Support | Linux, Yocto 1.7 |
| Power Requirement | 5V DC ±5% |
| Extended Temperature | -40 °C to +85 °C |
| Dimensions | 70×70 mm |
| Operating Temperature | 0 °C to +60 °C |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3A50Z | PQ7-M640F | CPU Module board (Quad core) | add to list – PQ7-M640F |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PQ7-M640F | Datasheet | 920.52 KB | download – PQ7-M640F | Datasheet |
