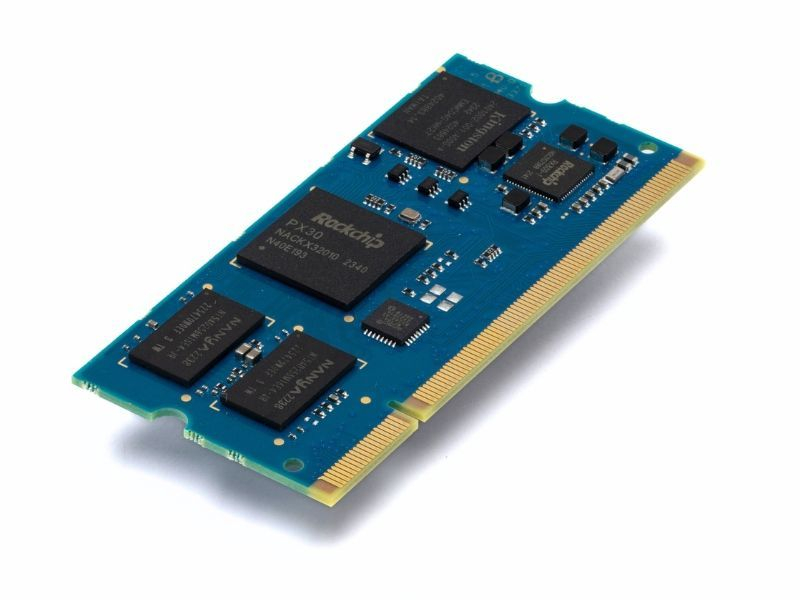

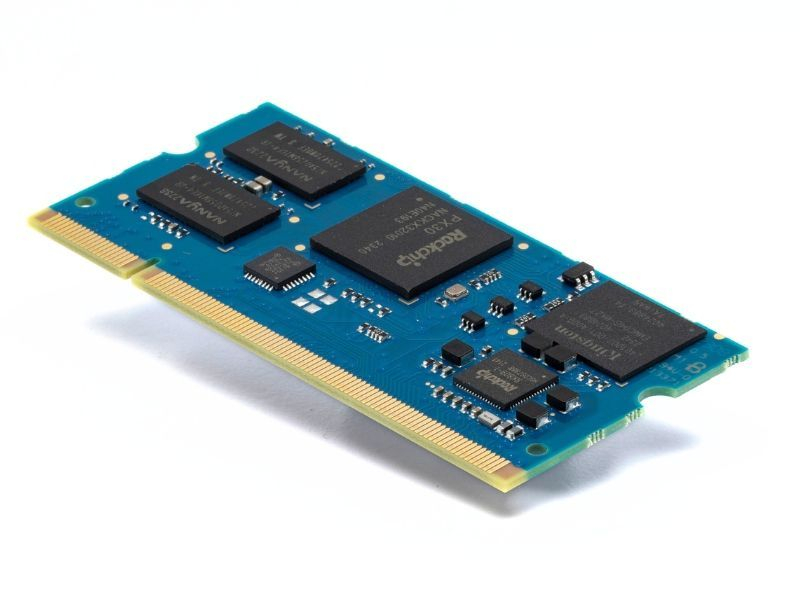

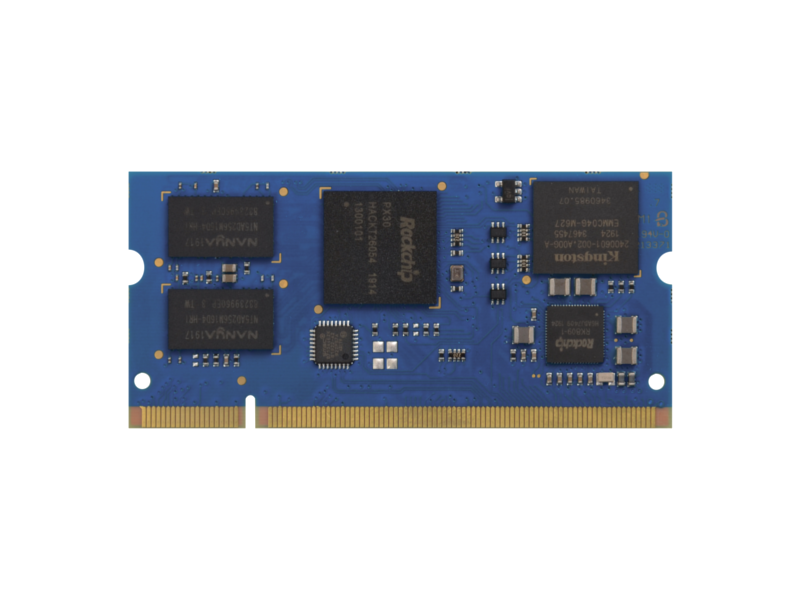

PX30.Core
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | PX30 |
|---|---|
| CPU #2 | Manufacturer: Rockchip |
| CPU #3 | GPU: ja |
| Cores | ARM |
| Cores #2 | Quad-Core ARM Cortex-A35@1.2GHz |
| Cores #3 | 4 cores |
| Memory | DDR4@1800MTs |
| Memory #2 | 1GB up to 2GB |
| Graphics & AI | Mali G31 OpenGL ES 1.1, 2.0, and 3.2 OpenCL 2.0 Vulkan® VX 1.0 |
| Video Interfaces | DSI, LVDS, Parallel RGB |
| Video Processing Unit Capabilities | 1080p@60 HEVEC MAIN10 (h.265, VP8) dec; 1080p@60 h.264 enc |
| Mass Storage | eMMC 4 GB expandible |
| Mass Storage #2 | EMMC |
| Networking | 1x 10/100 Ethernet |
| USB | 1x OTG |
| USB #2 | 1x USB2 |
| PCIe | NO |
| Audio | I2S i/f |
| Peripheral Interfaces | 3x UART2x I2C (Up to2x SPI)2x SDIO Audio Codec on SOM MIPI-CSI 4 lanes with 8Mp ISP |
| Power Supply | single 5V |
| Operating System | Linux |
| Operating System #2 | Android |
| Development System | BuildRoot |
| Development System #2 | Debian |
| Development System #3 | Yocto |
| Dimensions | EDIMM 2.0 |
| Dimensions #2 | 67.6 x 32 mm |
| Product availability | 2028 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PX30_Flyer.pdf | 309.19 KB | download – PX30_Flyer.pdf |
