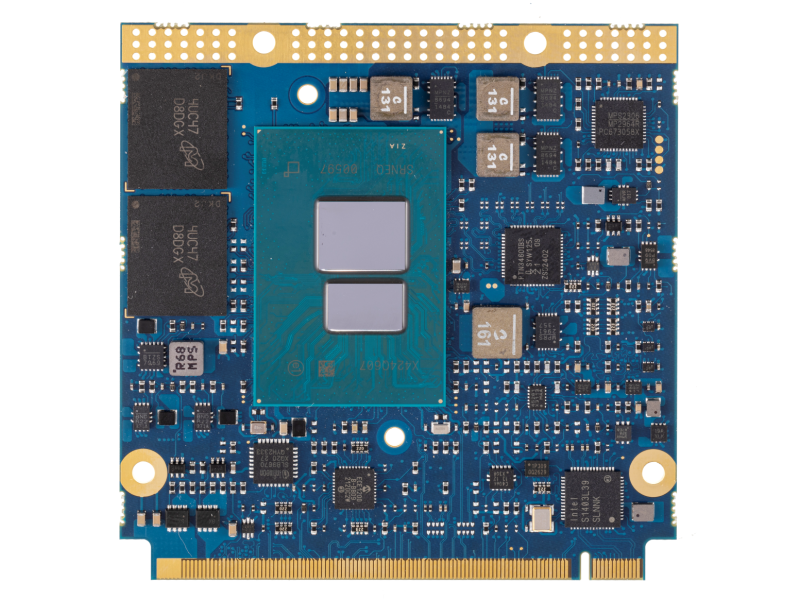

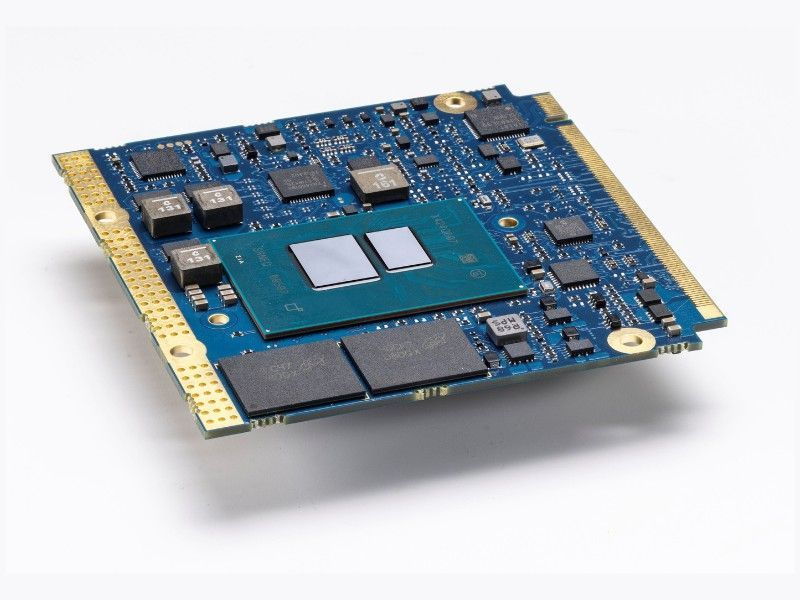

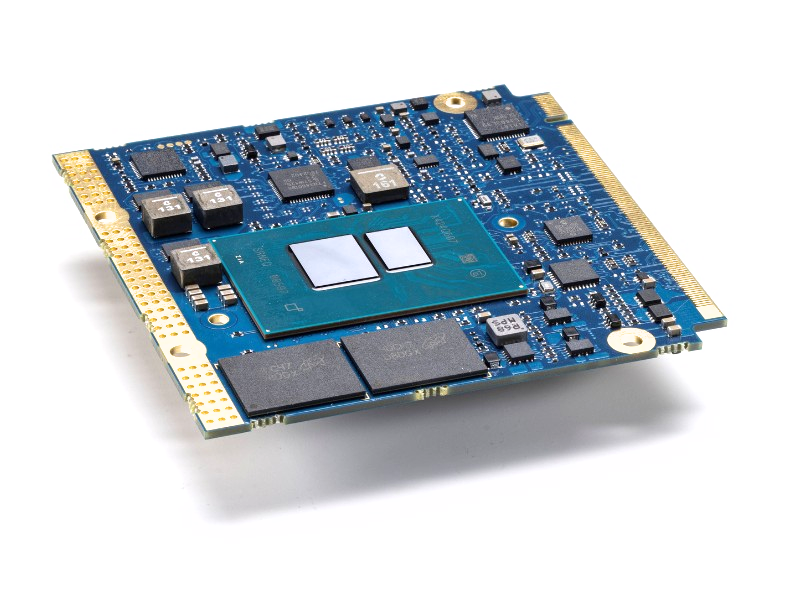

Qseven ASL
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Amston Lake |
|---|---|
| CPU #2 | Manufacturer: Intel |
| CPU #3 | GPU: ja |
| Cores | x86 |
| Cores #2 | Intel® Atom® x7000RE Series Intel® Atom® x7000C Series |
| Memory | LPDDR5@4800MTs |
| Memory #2 | up to 16GB |
| Graphics & AI | UHD Intel OpenGL 4.6 OpenCL 3.0 Direct X 12.1 IPU 6 |
| Video Processing Unit Capabilities | HEVC/ H265, VP9, AV1 dec HEVC/H265 enc |
| Mass Storage | Starting from 4 GB soldered onboard |
| Networking | 1x 2.5 Gb Ethernet |
| USB | 4x USB2 |
| USB #2 | 2x USB3 |
| PCIe | 4 |
| Audio | I2S i/f HDA |
| Peripheral Interfaces | UART I2C SPI CAN Bus SDIO2x SATA Watchdog Trigger LPC Thermal Control Fan Control |
| Power Supply | single 5V |
| Operating Temperature | -40° up to 85° |
| Dimensions | 70 x 70 mm |
| Product availability | 2034 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Qseven_ASL_flyer.pdf | 285.71 KB | download – Qseven_ASL_flyer.pdf |
