PICMG 1.3 Full-size SBCs
ROBO-8113VG2AR
Intel® Xeon® E3/ Core™ i3/i5/i7 Pentium®/ Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI®, DVI-I, Dual Gigabit Ethernet, Audio and USB
- Portwell
- EOL (End of Life)
ROBO-8113VG2AR-Q170
Intel® Core™ i3/i5/i7 Pentium®/Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI®, DVI-I, Dual Gigabit Ethernet, Audio and USB
- Supports Intel ® 7 th and 6 th Gen Skylake-S Kaby Lake-S Core™ i3/i5/i7/Pentium ® / Celeron ® processors in LGA 1151 package
- Delivers up tp 32GB maximum DDR4 2133 MT/s non-ECC DIMM on two sockets
- Supports mutiple display by DVI-I(DVI-D+VGA)and HDMI ®
- High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
- On-board 6x SATA III ports
- Rich I/O connections such as four serials ports, USB 3.0/2.0, SATA III ports
- Support on board TPM 2.0
Platform Overview
About this series

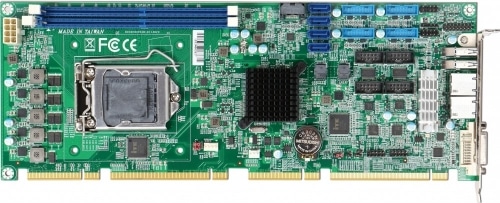

ROBO-8113VG2AR-Q170 is based on Intel® Q170 chipset and 7th and 6th desktop processors. Built with flexible PCI express expansions, ROBO-8113VG2AR is suitable for Medical, Industrial automation, and Digital Signage application.
| AB1-3D41 | (R).ROBO-8113VG2AR-Q170. PICMG 1.3(PCI-E+PCI).LGA1151. Intel® Xeon ®/CoreTM i3 processors.SHB.w/VGA/ Dual GbE/Audio/four COM ports |
| Standard |
|
| Optional |
|
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | PICMG1.3 |
|---|---|
| CPU | Intel ® Core™ i3/i5/i7/ Pentium ® /Celeron ® |
| Chipset | Intel ® Q170 |
| BIOS | AMI UEFI |
| Memory | 2 x DDR4 non-ECC DIMM up to 32GB |
| Expansion | 4x PCI slots1x PCIe x16 slot or2x PCIe x8 slot or1x PCIe x8 +2x PCIe x4 slots1x PCIe x4 slot |
| Display | VGA/DVI-D/HDMI ® |
| Audio | Realtek ALC886 HDA codec |
| LAN | 2x GbE |
| Serial Port | 2x RS-2322x RS-232/422/485 |
| USB | 10x USB 3.02x USB 2.0 |
| Storage Devices | 6x SATA III |
| GPIO | 8 bit |
| Others | PS/2 KB & MS |
| Dimension | 338.5×126.39mm |
| Standard | B6902932 SATA III cable B8981980 PICMG SBC Handling and Installation Notice B6903351 DVI-D + VGA cable B6902352 dual head COM port cable with bracket B8983660 Installation CD |
| Optional | B6902980 PS/2 Keyboard / Mouse Cable with bracket B6902230 USB port cable with bracket B6903090 USB 3.0 cable with bracket |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3D41 | ROBO-8113VG2AR-Q170 | PICMG 1.3(PCI-E+PCI).LGA1151. Intel ® Xeon ® /Core™ i3 processors.SHB.w/VGA/Dual GbE/Audio/four COM ports | add to list – ROBO-8113VG2AR-Q170 |
| AB1-3G67 | ROBO-8113VG2AR-Q170-KBL | PICMG 1.3(PCI-E+PCI).LGA1151. Intel ® Xeon ® /Core™ i3 processors.SHB.w/VGA/Dual GbE/Audio/four COM ports | add to list – ROBO-8113VG2AR-Q170-KBL |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| ROBO-8113VG2AR-Q170-KBL_PCIE1_R1_00_E10.zip | 14.59 MB | download – ROBO-8113VG2AR-Q170-KBL_PCIE1_R1_00_E10.zip |
| ROBO-8113VG2AR-Q170-PCIE1_R1_00_E16.zip | 13.03 MB | download – ROBO-8113VG2AR-Q170-PCIE1_R1_00_E16.zip |
| ROBO-8113VG2AR-Q170 | Datasheet | 1.50 MB | download – ROBO-8113VG2AR-Q170 | Datasheet |
| ROBO-8113VG2AR-Q170 | PCIE4 | BIOS R1.00.E16 | 6.19 MB | download – ROBO-8113VG2AR-Q170 | PCIE4 | BIOS R1.00.E16 |
| ROBO-8113VG2AR-Q170 | PCIE4 | BIOS R1.00.E16 | 6.84 MB | download – ROBO-8113VG2AR-Q170 | PCIE4 | BIOS R1.00.E16 |
