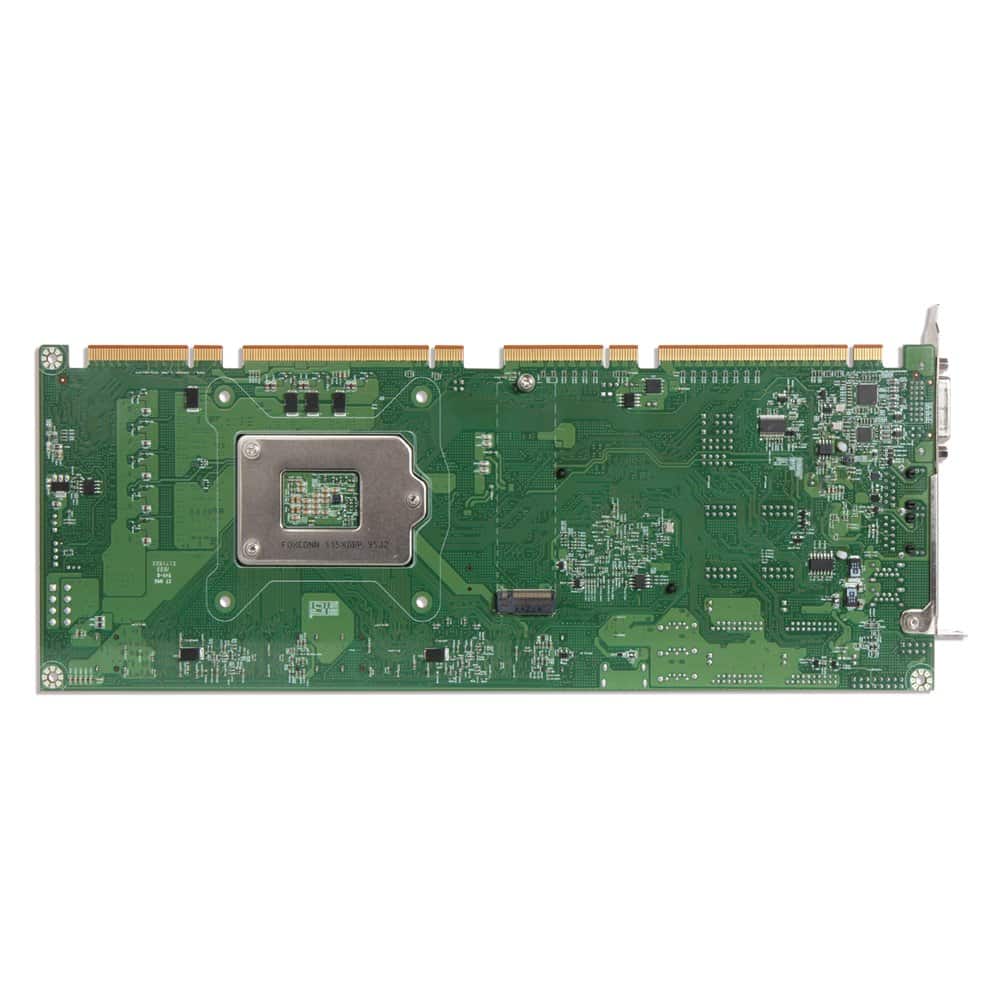

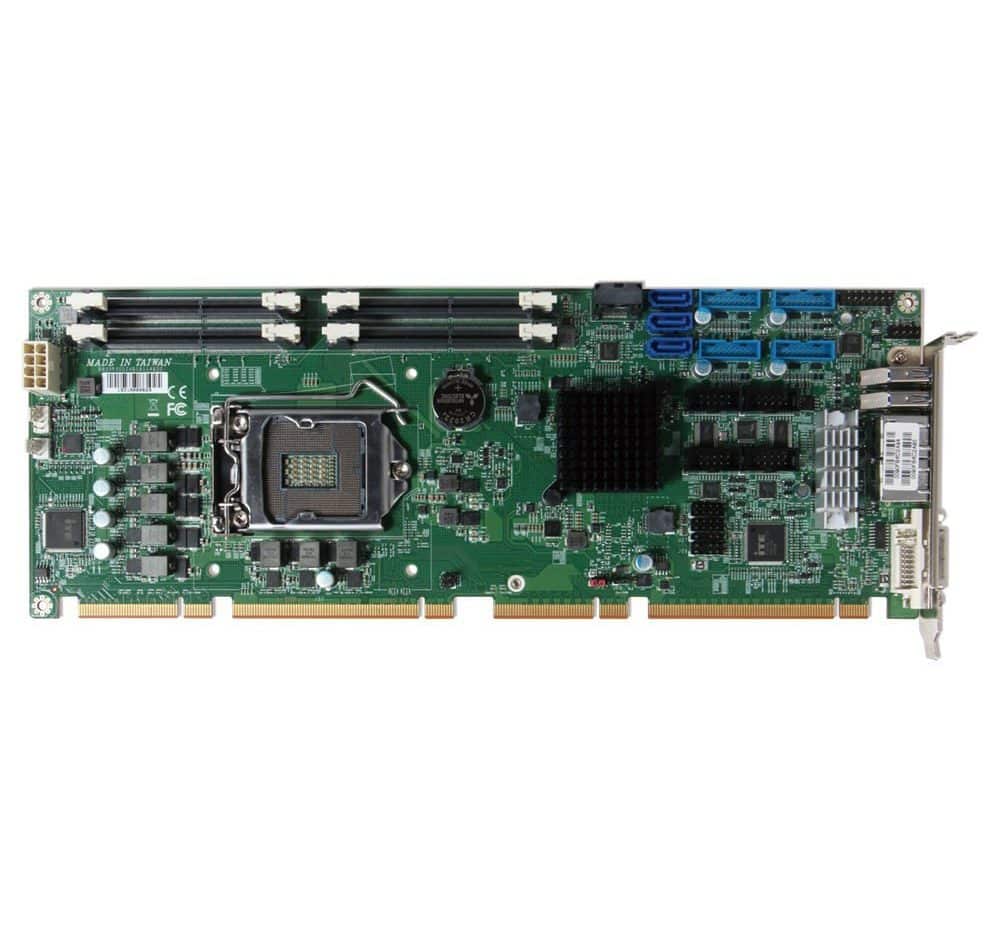

ROBO-8114VG2AR
Intel®Xeon® E/ Core™ i3/i5/i7 Pentium®/ Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI®, DVI-I, Dual Gigabit Ethernet, Audio and USB
- Supports Intel ® Xeon ® /Core™ i3/i5/i7/ Pentium ® / Celeron ® processors in LGA 1151 package
- Delivers up to 64GB maximum DDR4 2133 ECC SO-DIMM on four sockets

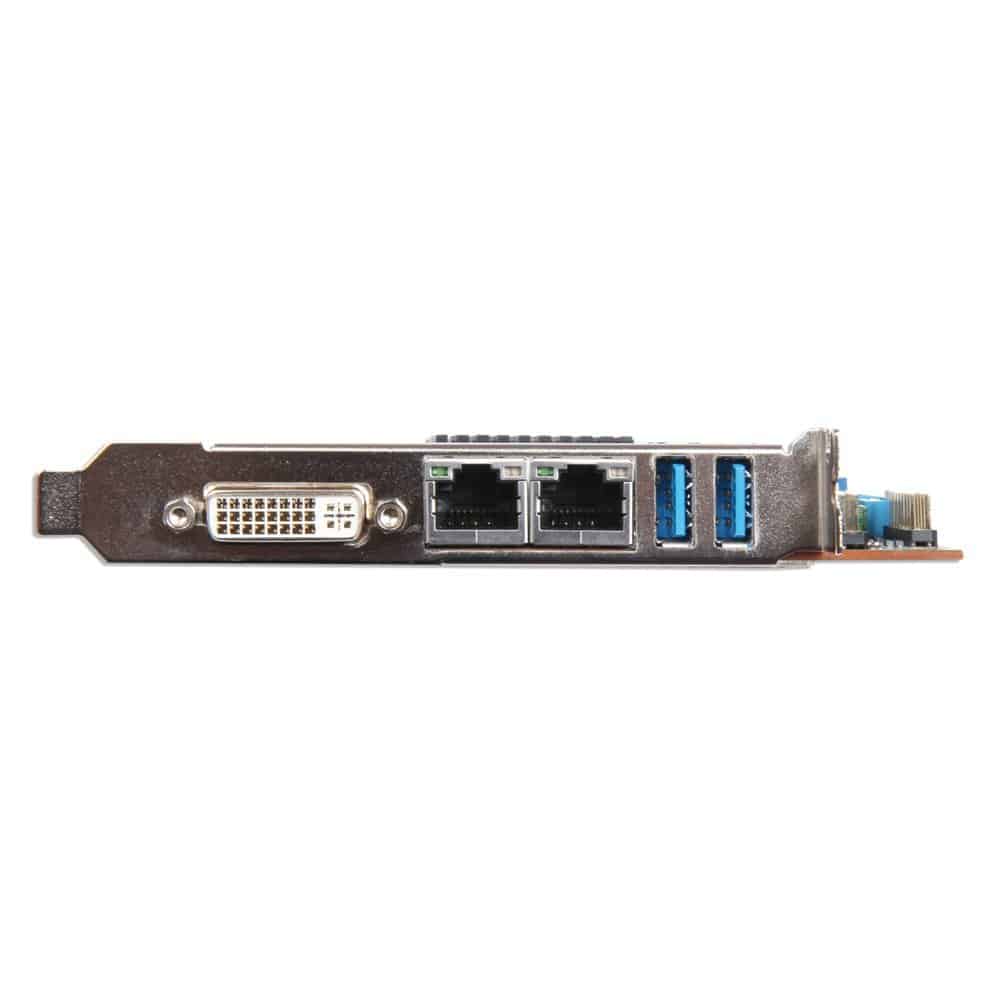

- Supports mutiple display by DVI-I(DVI-D+VGA)and HDMI ®
- High speed dual Gigabit Ethernet based on PCIe x press x 1, high bandwidth I/O interface
- Rich I/O connections such as four serials ports,USB 3.0/3.1, SATA III ports
- Support on board TPM2.0
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel ® Xeon ® E Family/Core™ i3/i5/i7/Pentium ® /Celeron ® processors up to 3.6 GHz (35 ~ 95 W) in LGA-1151 package DMI x4 Link: 5.0 GT/s Supports Intel ® Turbo Boost, Hyper-Threading, Virtualization, Thermal Monitoring, Trusted Execution, and SpeedStep Technology (depends on CPU SKU) |
|---|---|
| Chipset | Intel ® C246 PCH |
| BIOS | AMI UEFI BIOS (SPI ROM) |
| Memory | Supports up to 128 GB DDR4 2133 SDRAM on four 260-pin SO-DIMM sockets Supports ECC |
| Storage Devices | 5 × SATA III drives (Dual ports via Backplane) Supports RAID 0, 1, 5, 10 1 × M.2 Type M 2280 (on bottom side) |
| Watchdog Timer | Programmable via software from 0.5 sec to 255 sec |
| Hardware Monitoring | System monitor (Voltage, Fan Speed, and Temperature) |
| Graphic Controller | Intel ® Xeon ® and Core™ i3 processors integrated graphics engine Provides enhanced 3D multimedia capabilities including Microsoft DirectX 12, OCL 2.x, and OpenGL 4.3 / 4.4 |
| Display Interface | Supports independent triple display: VGA on bracket - up to 1920 × 1200 @ 60 Hz DVI-D on bracket - up to 1920 × 1200 @ 60 Hz (VGA + DVI-D on bracket via DVI-I port) HDMI ® on board - up to 3200 × 2000 @ 60 Hz |
| Dimension | 338.5 mm (L) × 126.39 mm (W) (13.33" × 4.98") PCB: 8 layers |
| Power Supply | Typical: +12 V, +5 V Supports ATX mode |
| Environment | Operating Temperature: 0 °C ~ 60 °C Storage Temperature: -20 °C ~ 80 °C Relative Humidity: 5 ~ 95 %, non-condensing |
| Standard | TBD Installation CD B6902352 dual head COM port cable with bracket B6903351 DVI-D + VGA cable B8981980 PICMG SBC Handling and Installation Notice B6902932 SATA III cable |
| Optional | B6903090 USB 3.0 cable with bracket B6902980 PS/2 Keyboard / Mouse Cable with bracket B6902230 USB port cable with bracket |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3J28 | ROBO-8114VG2AR | PICMG 1.3 (PCI-E + PCI). LGA1151. C246 PCH. Intel ® Xeon / Core i3 processors. SHB with VGA / Dual GbE / Audio / four COM ports | add to list – ROBO-8114VG2AR |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| ROBO-8114VG2AR | Datasheet | 1.19 MB | download – ROBO-8114VG2AR | Datasheet |
| ROBO-8114VG2AR | User Manual | 2.42 MB | download – ROBO-8114VG2AR | User Manual |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| ROBO-8114VG2AR BIOS | BIOS 0.4.15 | 8.97 MB | download – ROBO-8114VG2AR BIOS | BIOS 0.4.15 |
| ROBO-8114VG2AR BIOS | BIOS 0.4.15 | 8.53 MB | download – ROBO-8114VG2AR BIOS | BIOS 0.4.15 |
