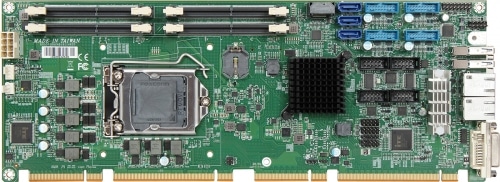

ROBO-8114VG2AR-Q370
Intel® Core™ i3/i5/i7 Pentium /Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI®, DVI-I, Dual Gigabit Ethernet,Audio and USB
- Supports Intel ® Core™ i3/i5/i7/Pentium ® / Celeron ® processors in LGA 1151 package
- Delivers up to 128GB maximum DDR4 2133 Non-ECC SO-DIMM on four sockets
- Supports mutiple display by DVI-I(DVI-D+VGA)and HDMI ®
- High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
- Rich I/O connections such as four serials ports,USB 3.0/3.1, SATA III ports
- Support on board TPM2.0
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | PICMG 1.3 |
|---|---|
| CPU | Intel ® Core™ i3/i5/i7/i9 / Pentium ® / Celeron ® |
| Chipset | Intel ® Q370 |
| BIOS | AMI UEFI BIOS |
| Memory | 4x DDR4 non-ECC SO-DIMM, up to 128GB |
| Expansion | 4x PCI slots,1x PCIe x16 slot or2x PCIe x8 slots, or1x PCIe x8 slot and2x PCIe x4 slots, plus1x PCIe x4 slot |
| Display | DVI-I / HDMI ® |
| Audio | Realtek ALC886 HDA codec |
| LAN | 2x GbE |
| Serial Port | 2x RS-232 ports,2x RS-232/422/485 ports |
| USB | 8x USB 3.2 Gen1,2x USB 3.2 Gen2,4x USB 2.0 |
| Storage Devices | 5x SATA III,1x M.2 Type M 2280 |
| GPIO | 8-bit programmable digital I/O |
| Others | PS/2 Keyboard & Mouse |
| Dimension | 338.5mm (L) x 126.39mm (W) |
| Standard | TBD Installation CD B6902352 Dual-head COM port cable with bracket B6903351 DVI-D + VGA cable B8981980 PICMG SBC Handling and Installation Notice B6902932 SATA III cable |
| Optional | B6903090 USB 3.0 cable with bracket B6902980 PS/2 Keyboard / Mouse cable with bracket B6902230 USB port cable with bracket |
