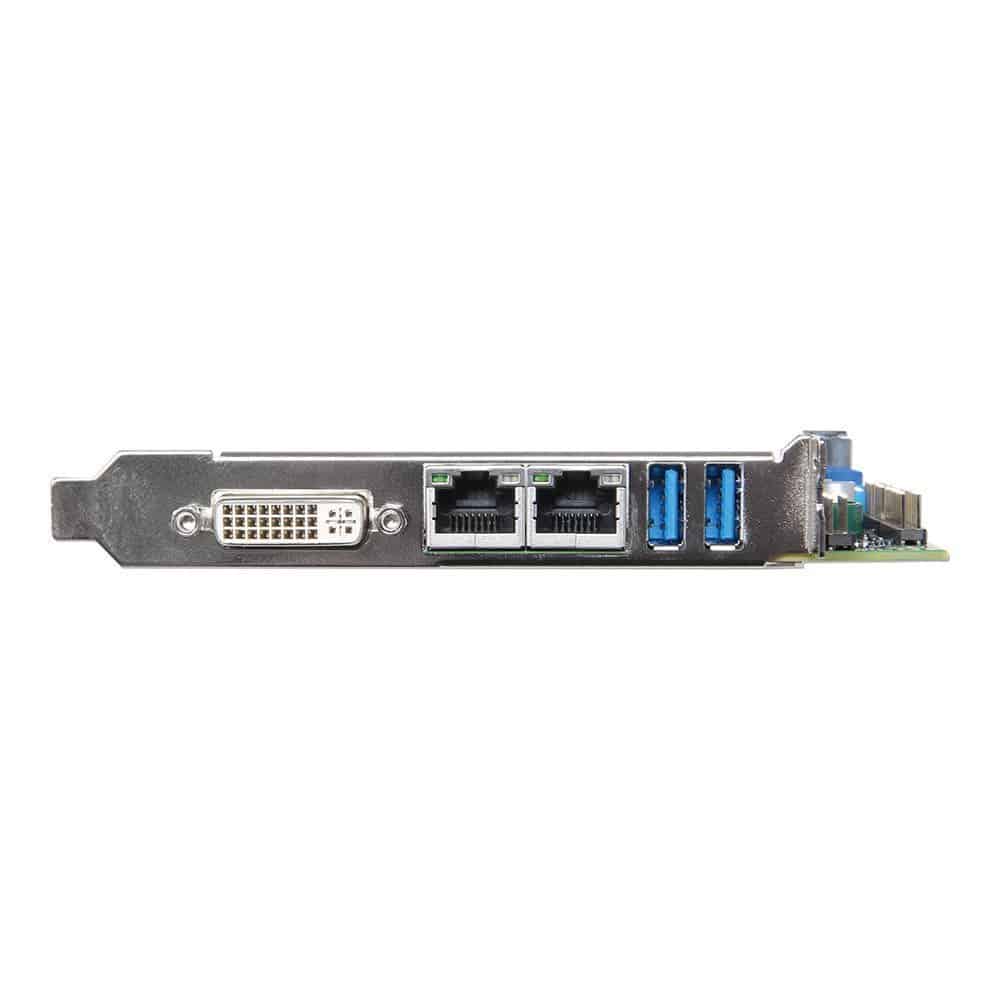

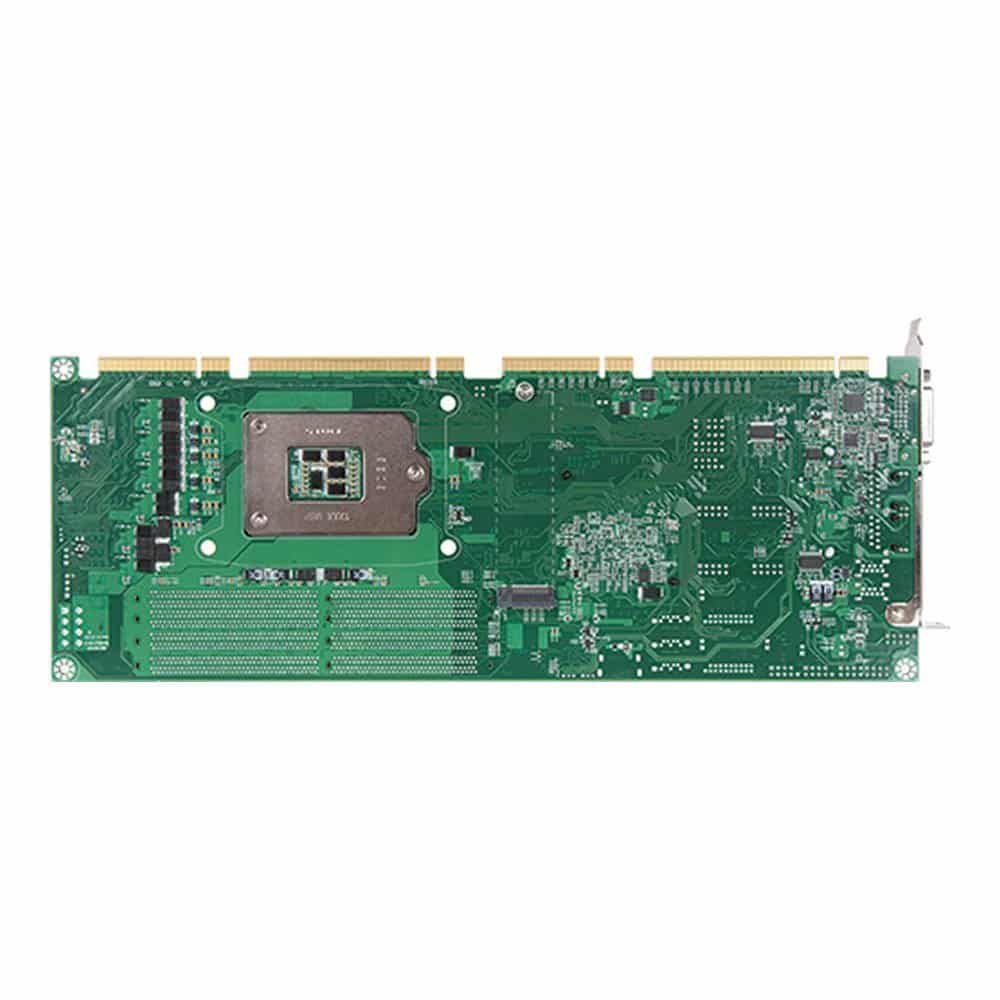

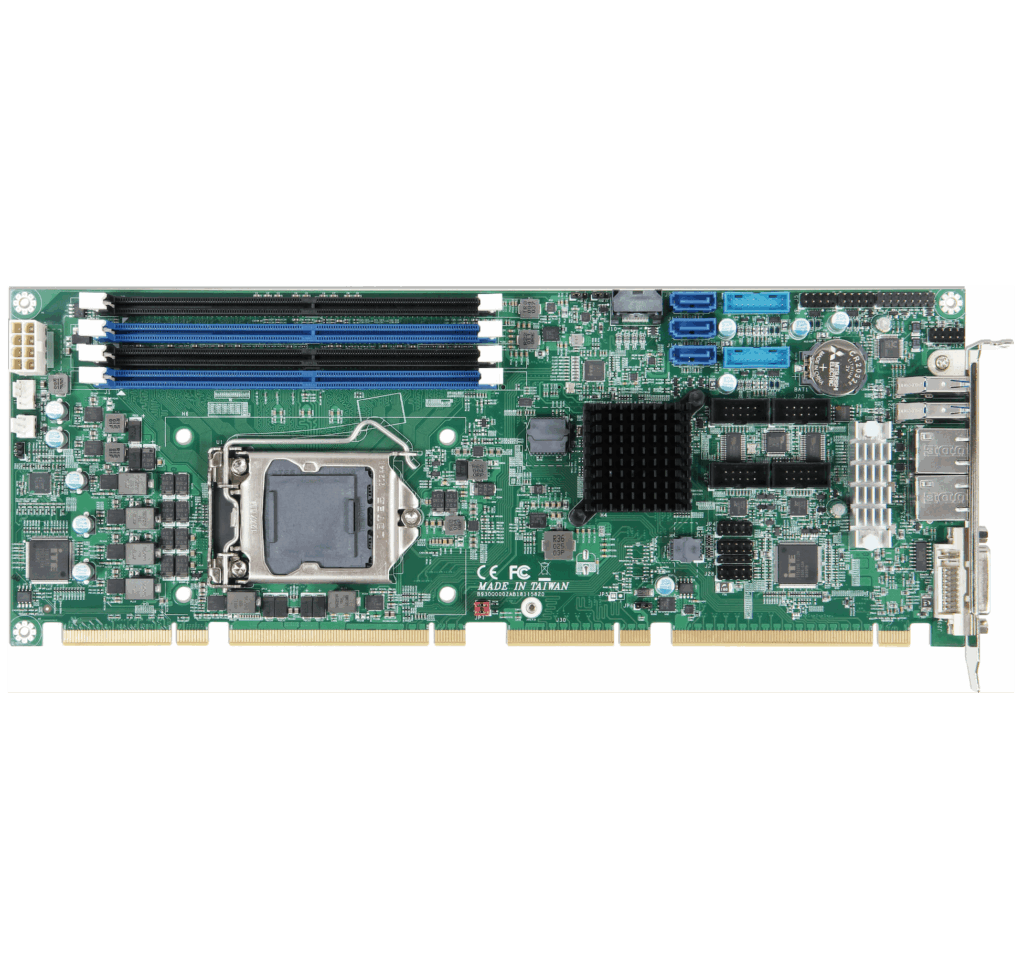

ROBO-8115VG2AR
Intel® Xeon® W/ CoreTM i3/i5/i7/i9 Pentium®/Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI®, DVI-I, Dual Gigabit Ethernet, Audio and USB
- Supports Intel ® Xeon ® W/Core™ i3/i5/i7/ i9 /Pentium ® /Celeron ® processors in LGA 1200 package
- Delivers up to 128GB maximum DDR4 2666 ECC Long-DIMM on four sockets
- Supports mutiple display by DVI-I(DVI-D+VGA)and HDMI ®
- High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
- Rich I/O connections such as four serials ports, USB3.2(Gen2), SATA III ports
- Support on board TPM2.0
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | PICMG 1.3 |
|---|---|
| CPU | Intel ® Xeon ® W / Core™ i3/i5/i7/i9 / Pentium ® / Celeron ® |
| Chipset | Intel ® W480E |
| BIOS | AMI UEFI BIOS |
| Memory | 4x DDR4 ECC DIMM, up to 128GB |
| Expansion | 4x PCI slots,1x PCIe x16 slot or2x PCIe x8 slots, or1x PCIe x8 slot and2x PCIe x4 slots, plus1x PCIe x4 slot |
| Display | DVI-I / HDMI ® |
| Audio | Realtek ALC888S HDA codec |
| LAN | 2x GbE |
| Serial Port | 2x RS-232 ports,2x RS-232/422/485 ports |
| USB | 6x USB 3.2 Gen2,8x USB 2.0 |
| Storage Devices | 5x SATA III,1x M.2 Type M 2280 |
| GPIO | 8-bit programmable digital I/O |
| Others | PS/2 Keyboard & Mouse |
| Dimension | 338.5mm (L) x 126.39mm (W) |
| Standard | B6902932 SATA III cable B8981980 PICMG SBC Handling and Installation Notice B6903351 (GP). Cable Video DVI-I to DVID+VGA Y cable L=150mm. 0130-069-00-0263. E-CALL B6902352 *(GP). Cable DB9x2 to HSG(5×2)x2 L=300mm W/Bracket for Ruby-9717/Ruby-9718. CY-8A08006R. CHUAN YANG TBD Installation CD |
| Optional | B6903090 USB 3.0 cable with bracket B6902980 PS/2 Keyboard / Mouse cable with bracket B6902230 USB port cable with bracket |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3K28 | ROBO-8115VG2AR | PICMG 1.3 (PCI-E+PCI). LGA1200. W480E PCH. Intel ® Xeon/Core i3 processors. SHB. w/VGA/Dual GbE/Audio/four COM ports | add to list – ROBO-8115VG2AR |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| ROBO-8115VG2AR Series | User Manual | 2.86 MB | download – ROBO-8115VG2AR Series | User Manual |
| ROBO-8115VG2AR | PCIE1 | BIOS 0.0.14 | 18.09 MB | download – ROBO-8115VG2AR | PCIE1 | BIOS 0.0.14 |
| ROBO-8115VG2AR | Datasheet | 812.14 KB | download – ROBO-8115VG2AR | Datasheet |
| ROBO-8115VG2AR | BIOS 0.0.21 | 18.45 MB | download – ROBO-8115VG2AR | BIOS 0.0.21 |
| ROBO-8115VG2AR | EC 0.8 | 90.67 KB | download – ROBO-8115VG2AR | EC 0.8 |
