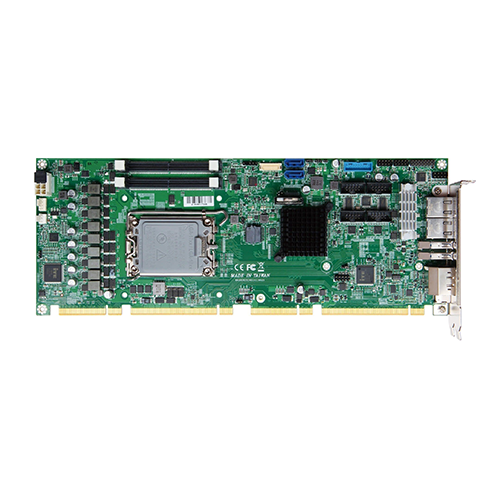

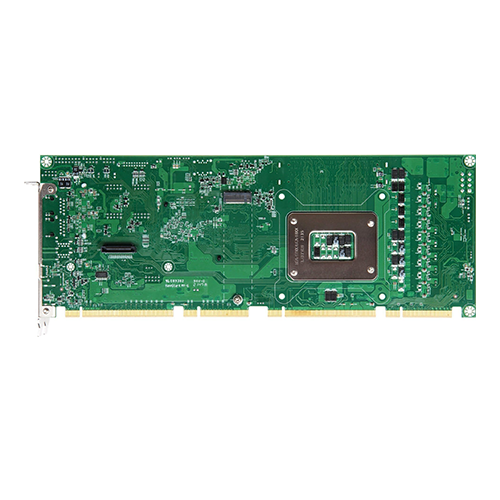

ROBO-8116G2AR-Q670E-R
Intel® Core™ Processor Series 2 and 12th/13th/14th Generation chipset 600 series with processor based on PICMG 1.3 SHB with DDR5 SDRAM, HDMI®, DVI-D, DP, Dual 2.5Gigabit Ethernet, Audio and USB
- Supports Intel ® Core™ Processors (Series 2), Intel ® Core™ Processors (Series 2) with P-cores and 12th/13th/14th Generation Core processors family in LGA 1700 package
- Delivers up to 64GB maximum DDR5 4800 Non-ECC SO-DIMM on two sockets
- Supports mutiple display by DVI-D, DP and HDMI ® High speed dual 2.5Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface Support one UBS 3.2 Gen2x2 and two USB 3.2 Gen2 on REAR I/O Support on board TPM2.0
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | PICMG 1.3 Full-Size |
|---|---|
| Processor | Intel ® Core™ Processors (Series 2), LGA 1700 socket Intel ® Core™ Processor (Series 2) with P-cores, LGA 1700 socket 12/13/14th Generation Intel ® Core™ i3/i5/i7/i9 Processors, LGA 1700 socket |
| Chipset | Intel ® Q670E |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 64GB DDR5 4800 MT/s on 2 non-ECC SODIMM |
| Storage | 2 x SATA Ports2 x SATA Ports Support RAID 0, 1, 5, 10 via backplane |
| Watchdog Timer | Programmable, time out period from 0.5 s to 254.5 s |
| Graphic Controller | Intel ® Graphics DirectX 12.0 OpenGL 4.5 |
| Ethernet | 2 x Intel ® I226LM with 2.5 GbE LAN 10/100/1000/2500 Mbps |
| USB | 1 x USB 3.2 Gen2 x2 Type C on Bracket2 x USB 3.2 Gen2 Type A on Bracket |
| Display | 1 x DP 1.24096 x 2160@60Hz1 x DVI-I1920 x 1200@60Hz1 x HDMI ® 2.04096 x 2160@30Hz |
| PCIe | 1 x PCIe Gen5 x16 ( 1 x16 mode, 2 x8 mode )1 x PCIe Gen4 x4 (1x 4 mode,4 x 1 mode)2 x PCIe Gen4 x4 via B2B card connect with Backplane1 x PCIe Gen3 x4 via B2B card connect with Backplane |
| PCI | 4 x PCI 33 MHz |
| Audio | 1 x Pin Header support Line-in , Line-out , Mic-in w/ Realtek ALC888S |
| Serial Port | 2 x Pin Header support RS-2322 x Pin Header support RS-232/422/485 |
| USB | 2 x USB 3.2 Gen1 through 1 Pin Header4 x USB 2.0 Pin Header4 x USB 2.0 via backplane |
| M.2 | 1 x M.2 M Key 2280 support SATA, PCIe x4 on bottom side |
| Security | TPM 2.0 ( On Board IC ) |
| GPIO | 1 x 8-bit Digital I/Os |
| Dimension | 339 x 126 mm (13.33" x 4.98") |
| Power Supply | AT mode/ ATX mode |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) |
| Storage Temperature | -20 ~ 80 °C (-4.0 ~ 176.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC Class A |
| OS | Windows 10 IoT Enterprise 2021 LTSC, Ubuntu, RedHat Enterprise, WR Linux, Yocto Project BSP tool-based embedded Linux distribution1 (64-bit), Wind River VxWorks 7.0 |
| Standard | B6902932 SATA III cable B8981980 PICMG SBC Handling and Installa B6902352 *(GP).Cable.DB9x2 to HSG(5×2)x2 L=300mm W/Bracket for Ruby-9717/Ruby-9718. CY-8A08006R.CHUAN YANG |
| Optional | B6903090 USB 3.0 cable with bracket B6902230 USB port cable with bracket |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3S33 | ROBO-8116G2AR-Q670E-R | PICMG 1.3(PCI-E+PCI).LGA1700. Q670E PCH. Intel ® Core™ i3/i5/i7/i9 processors. SHB. w/DP/HDMI ® /DVI/Dual GbE/Audio/four COM ports(Raptor lake-s refresh) | add to list – ROBO-8116G2AR-Q670E-R |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| ROBO-8116G2AR-Q670E-R | Datasheet | 1.39 MB | download – ROBO-8116G2AR-Q670E-R | Datasheet |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| ROBO-8116G2AR Series | User Manual R1.6 | 7.07 MB | download – ROBO-8116G2AR Series | User Manual R1.6 |
| ROBO-8116G2AR-Q670E-Series | BIOS 0.2.5 | 25.08 MB | download – ROBO-8116G2AR-Q670E-Series | BIOS 0.2.5 |
| ROBO-8116G2AR-Q670E | PCIE select | BIOS 0.2.3 | 11.94 MB | download – ROBO-8116G2AR-Q670E | PCIE select | BIOS 0.2.3 |
| ROBO-8116G2AR-Q670E | PCIE select | BIOS 0.2.3 | 12.22 MB | download – ROBO-8116G2AR-Q670E | PCIE select | BIOS 0.2.3 |
| ROBO-8116G2AR-Q670E | PCIE select | BIOS 0.2.2 | 24.16 MB | download – ROBO-8116G2AR-Q670E | PCIE select | BIOS 0.2.2 |
