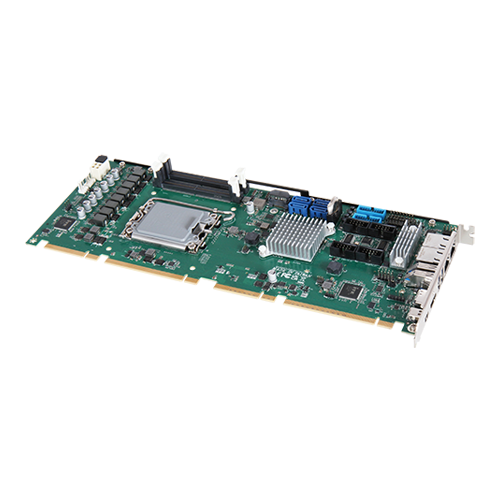

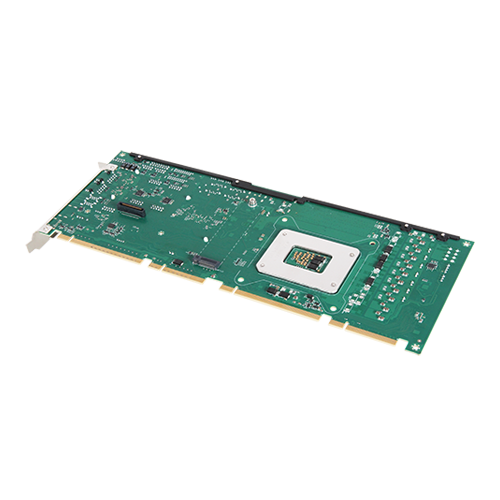

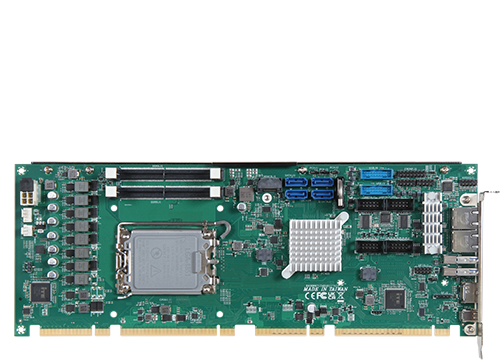

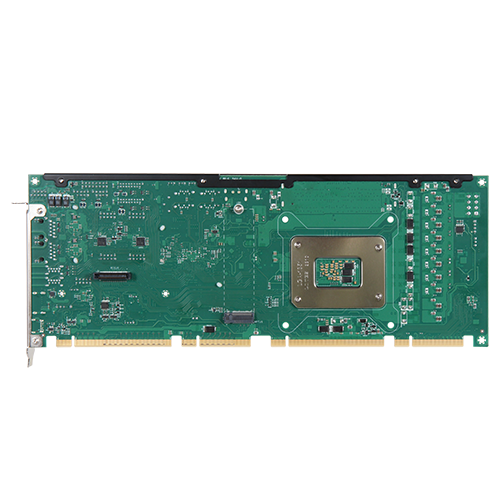

ROBO-8117G2AR-Q870
Intel® Core™ Ultra Series; 2x DDR5 6400 ECC SO-DIMM to 96GB; 2.5GbE; 6x USB 3.2 Gen2; mini-DP, 2x HDMI®
- Support Intel ® Core™ Ultra Series processors in LGA1851 package
- Delivers up to 96GB maximum DDR5 6400 ECC SO-DIMM on two sockets

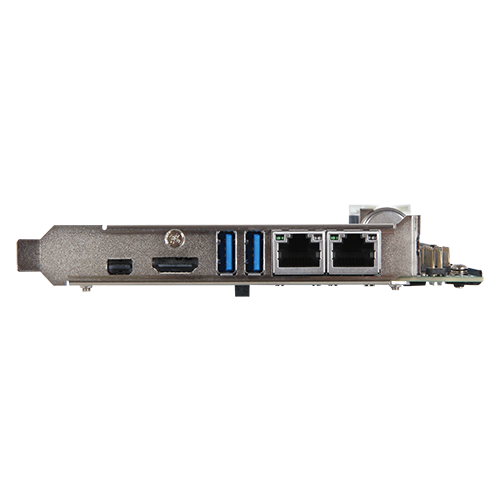

- Supports multiple display by mini-DP and dual HDMI ® High speed dual 2.5Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface Support two USB 3.2 Gen2 on REAR I/O
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel ® Core™ Ultra Processors (Series 2), LGA 1851 socket, 65W TDP |
|---|---|
| Chipset | Intel ® Q870 |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 96GB DDR5 6400 MT/s on 2 SODIMM |
| Storage | 6 x SATA Ports Support RAID 0, 1, 5, 10 |
| Watchdog Timer | Programmable, time out period from 1 s to 255 s |
| Graphic Controller | Intel ® Xe LPG Graphics OpenGL 4.5 |
| Ethernet | 2 x Intel ® I226LM with 2.5 GbE LAN 10/100/1000/2500 Mbps |
| USB | 2 x USB 3.2 Gen2 Type A |
| Display | 1 x Mini-DP 7680 × 4320@60Hz1 x HDMI ® 2.14096 x 2160@60Hz1 x HDMI ® 2.14096 x 2160@60Hz |
| PCIe | 1 x PCIe Gen5 x16 ( 1 x16 mode, 2 x8 mode )1 x PCIe Gen4 x41 x PCIe Gen4 x4 |
| PCI | 4 x PCI 33 MHz |
| Audio | 1 x Pin Header support Line-in , Line-out , Mic-in w/ Realtek ALC888 |
| Serial Port | 2 x Pin Header support RS-2322 x Pin Header support RS-232/422/485 |
| USB | 8 x USB 2.0 Pin Header2 x USB 3.2 Gen2 Pin Header2 x USB 3.2 Gen2 Vertical Type A |
| M.2 | 1 x M.2 M Key 2280 support |
| Security | TPM 2.0 ( On Board IC ) |
| GPIO | 1 x 8-bit Digital I/Os |
| Dimension | 339 x 126 mm (13.33" x 4.98") |
| Power Supply | AT mode/ ATX mode 12V |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC UKCA |
| OS | Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, RedHat Enterprise, Ubuntu 24.04, Ubuntu 22.04, Linux Kernel 6.6.23 |
| Portwell Special Feature | PET |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Details |
|---|---|---|
| AB1-3T08 | ROBO-8117G2AR-Q870 | add to list – ROBO-8117G2AR-Q870 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| ROBO-8117G2AR | Support List | 467.90 KB | download – ROBO-8117G2AR | Support List |
| ROBO-8117G2AR | BIOS 0.0.20 | 12.20 MB | download – ROBO-8117G2AR | BIOS 0.0.20 |
| ROBO-8117G2AR | BIOS 0.0.20 | 11.86 MB | download – ROBO-8117G2AR | BIOS 0.0.20 |
| ROBO-8117G2AR-Q870 | Datasheet | 829.09 KB | download – ROBO-8117G2AR-Q870 | Datasheet |
| ROBO-8117G2AR | BIOS 0.0.19 | 35.51 MB | download – ROBO-8117G2AR | BIOS 0.0.19 |
| ROBO-8117G2AR | EC 0.9 | 93.11 KB | download – ROBO-8117G2AR | EC 0.9 |
| ROBO-8117G2AR | BIOS 0.0.18 | 23.78 MB | download – ROBO-8117G2AR | BIOS 0.0.18 |
| ROBO-8117G2AR EC | EC 0.8 | 93.44 KB | download – ROBO-8117G2AR EC | EC 0.8 |
