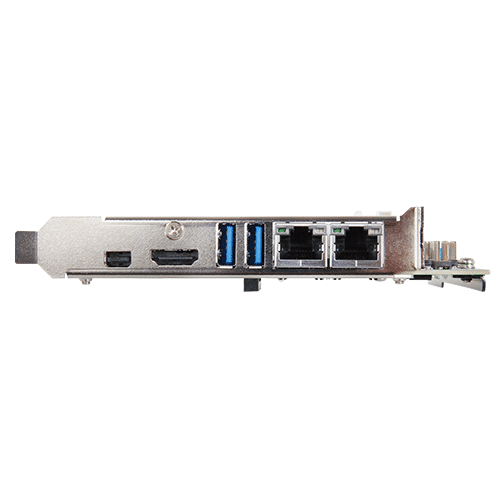

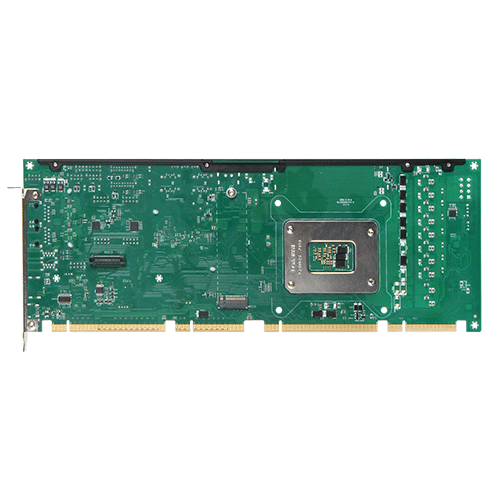

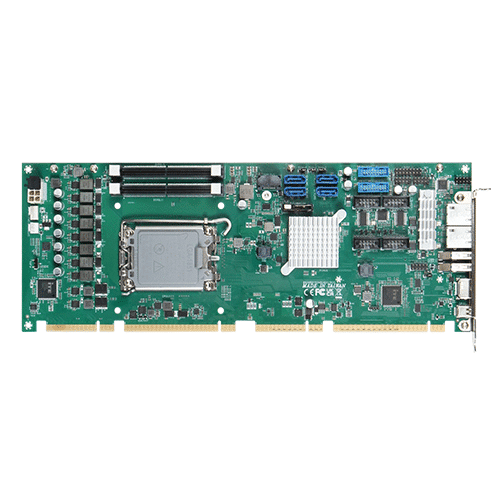

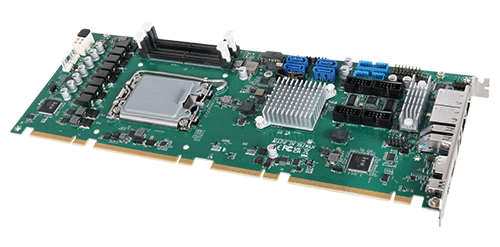

ROBO-8117G2AR
Intel® Core™ Ultra Series Processors and 800 Series Chipset based PICMG 1.3 SBC/SHB with DDR5 SDRAM, HDMI®, MiniDP, Dual 2.5GbE Ethernet, Audio and USB
- Supports Intel ® 15 th Generation Core processors Family in LGA1851 package
- Delivers up to 96GB maximum DDR5 6400 ECC SO-DIMM on two sockets
- Supports mutiple display by mini-DP and dual HDMI ®
- High speed dual 2.5Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
- Support two USB 3.2 Gen2 on REAR I/O
- Support on board TPM2.0
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel ® 15th Gen Core™ Processors in LGA1851 package Support Intel ® Turbo Boost, Hyper-Threading, Virtualization, Thermal Monitoring Trusted Execution and Speed Step Technology (depends on CPU SKU) |
|---|---|
| Chipset | Intel ® W880 |
| BIOS | AMI UEFI BIOS |
| Memory | Supports up to 96GB DDR5 6400 SDRAM on two 262-pin SODIMM sockets, Supports ECC |
| Storage Devices | 6x SATAIII drives (Dual ports via Backplane) Supports RAID 0, 1, 5, 101x M.2 Type M 2280 (on bottom side) |
| Watchdog Timer | Programmable watchdog timer, time out period from 0.5 sec to 254.5 secs |
| Hardware Monitoring | System monitor (Voltage, Fan Speed and Temperature) |
| Expansion Interface | From CPU:1x PCIe x16(Gen5) or2x PCIe x8(Gen5) and1x PCIe x4(Gen4) setting (Gen5 up to 32 GT/s) From PCH:1x PCIe x4 or4x PCIe x1 by different BIOS support (Gen 4 up to 16 GT/s),4x PCI devices at 32bit 33MHz |
| Super I/O | ITE IT5121E-I |
| Audio | Intel ® PCH built-in High Definition Audio up to 192-kHz 32-bit Realtek ALC888S HDA codec, 7.1 channels one on-board audio pin header |
| Ethernet | Dual Intel ® WGI226LM Gigabit Ethernet controller Dual 10BASE-T / 100BASE-TX / 1000BASE-T / 2500BASE-T Ethernet PCI Express x1 interface based on Gigabit Ethernet Dual RJ-45 connectors with two LED indicators |
| Serial Port | 2x RS-232 ports2x RS-232/422/485 ports selectable LPC to COM port IC: Fintek F81216E |
| USB | 4x USB 2.0 ports on board4x USB 2.0 ports (through backplane)2x USB 3.2(Gen2) ports on bracket4x USB 3.2(Gen2) ports on board |
| Keyboard & Mouse | TBD |
| GPIO | On board programmable 8-bit Digital I/Os |
| Graphic Controller | Graphic with Xe LPG architecture, up to 4Xe Graphics Engines |
| Display Interface | Support independent triple display by mini-DP on bracket: Resolution up to7680 x 4320 @ 60Hz HDMI ® on bracket: Resolution up to7680 x 4320 @ 60Hz HDMI ® on board: Resolution up to7680 x 4320 @ 60Hz |
| Dimension | 338.5mm(L) x 126.39mm(W), 13.33”(L) x 4.98”(W) |
| Power Supply | Typical: +12V, +5V, Support ATX mode |
| Environment | Operation Temperature: 0 °C to 60 °C Storage Temperature: -20 °C to 80 °C Relative Humidity: 5 ~ 95%, non-condensing |
| MTBF | Over 100,000 hours at 40 °C |
| Certification | CE, FCC Class A |
| Standard | B6902932 SATA III cable TBD Installa B6902352 *(GP).Cable.DB9x2 to HSG(5×2)x2 L=300mm W/Bracket for Ruby-9717/Ruby-9718. CY-8A08006R.CHUAN YANG |
| Optional | B6903090 USB 3.0 cable with bracket B6902230 USB port cable with bracket |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3T07 | ROBO-8117G2AR | PICMG 1.3 (PCI-E+PCI). LGA1851. W880 PCH. Intel ® Core™ Ultra processors. SHB. w/ miniDP/HDMI ® /Dual GbE/Audio/four COM ports | add to list – ROBO-8117G2AR |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| ROBO-8117G2AR | Support List | 467.90 KB | download – ROBO-8117G2AR | Support List |
| ROBO-8117G2AR | BIOS 0.0.20 | 11.86 MB | download – ROBO-8117G2AR | BIOS 0.0.20 |
| ROBO-8117G2AR | BIOS 0.0.20 | 12.20 MB | download – ROBO-8117G2AR | BIOS 0.0.20 |
| ROBO-8117G2AR | BIOS 0.0.19 | 35.51 MB | download – ROBO-8117G2AR | BIOS 0.0.19 |
| ROBO-8117G2AR | EC 0.9 | 93.11 KB | download – ROBO-8117G2AR | EC 0.9 |
| ROBO-8117G2AR | BIOS 0.0.18 | 23.78 MB | download – ROBO-8117G2AR | BIOS 0.0.18 |
| ROBO-8117G2AR | BIOS 0.0.15 | 23.81 MB | download – ROBO-8117G2AR | BIOS 0.0.15 |
| ROBO-8117G2AR | EC 0.6 | 92.63 KB | download – ROBO-8117G2AR | EC 0.6 |
| ROBO-8117G2AR BIOS | BIOS 0.0.17 | 23.81 MB | download – ROBO-8117G2AR BIOS | BIOS 0.0.17 |
| ROBO-8117G2AR EC | EC 0.8 | 93.44 KB | download – ROBO-8117G2AR EC | EC 0.8 |
| ROBO-8117 | User Manual | 6.73 MB | download – ROBO-8117 | User Manual |
| ROBO-8117G2AR | Datasheet | 1.94 MB | download – ROBO-8117G2AR | Datasheet |
