- Portwell

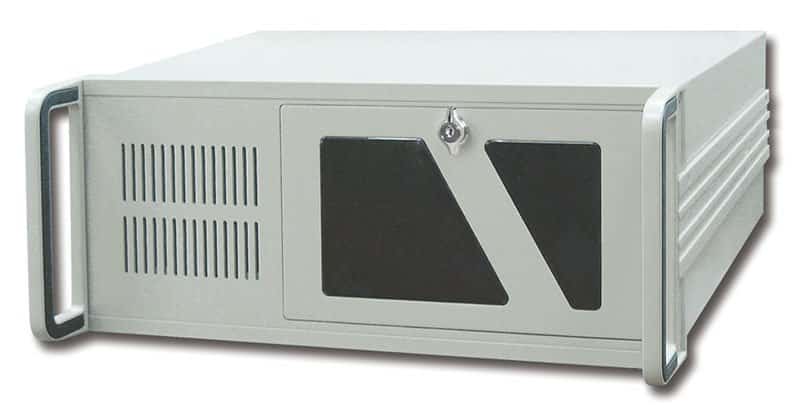

RPC-500L
19” 4U industrial rack-mount chassis
- 5.25” x3 + 3.5” x2 drive bays for RAID 0, 1, 5 & CD-ROM
- Two ball-bearing cooling fans for betterventilation
- Traditional rack-mount handles
- Two card retainer positions
- Two USB ports on the control panel
- One modularized function panel for single (default) and dual (optional) systems
- ATX M/B applicable, especially for big-AT sized M/B (RPC-500L-MX)
- PS/2 reduncant power supply installable
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| TYPE | 4U |
|---|---|
| SLOT | 14 |
| ORDERING GUIDE | RPC-500NC RPC-500L RPC-500NC/B |
| Dimension | 482(W) x 515(D) x 177(H) mm; 19”(W) x 20.3”(D) x 7”(H) |
| Weight | Net: 17.5 kg (38.6 lb); Gross: 18.5 kg (40.8 lb) |
| BP MODEL | PBPE-14AD64 PBPE-13A8 PBPE-13A4 PBPE-12AA64 PBPE-12A9 PBPE-12P4 PBPE-11A3 |
| PICMG | 1.3 1.3 1.3 1.3 1.3 1.3 1.3 |
| PCIe | 2 4 8 1 2 8 8 |
| PCI/PCI-X | 3/8 8/0 4/0 2/8 9/0 4/0 3/0 |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| RPC-500L | 19” 4U rack-mount chassis for PICMG backplane (Long size) | add to list – RPC-500L | |
| RPC-500L-MX | 19” 4U rack-mount chassis for server board (Long size) | add to list – RPC-500L-MX |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| RPC-500L | Datasheet | 774.28 KB | download – RPC-500L | Datasheet |
