- Portwell
RPC-508-MX

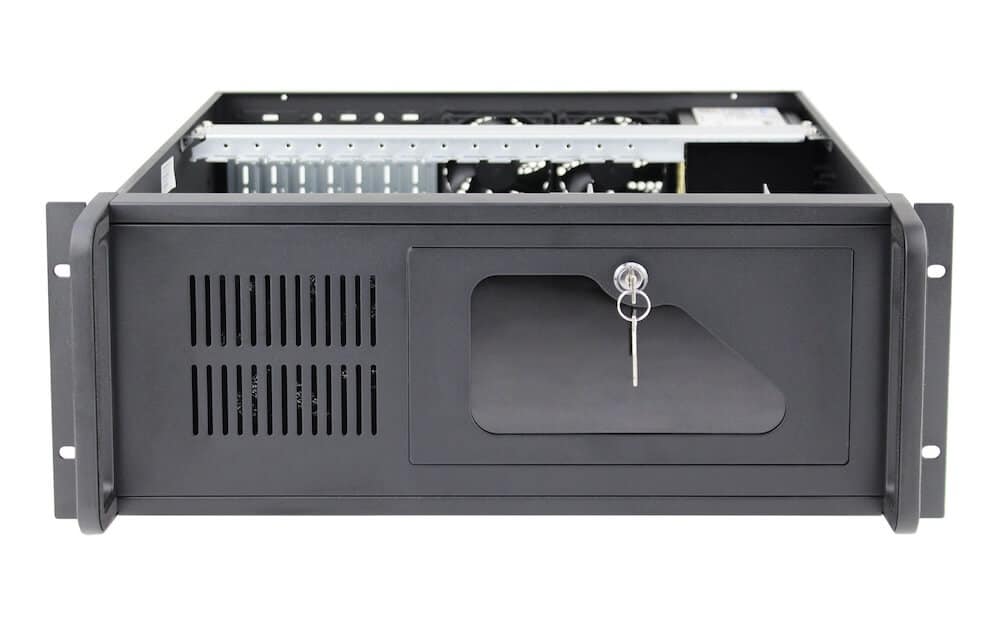

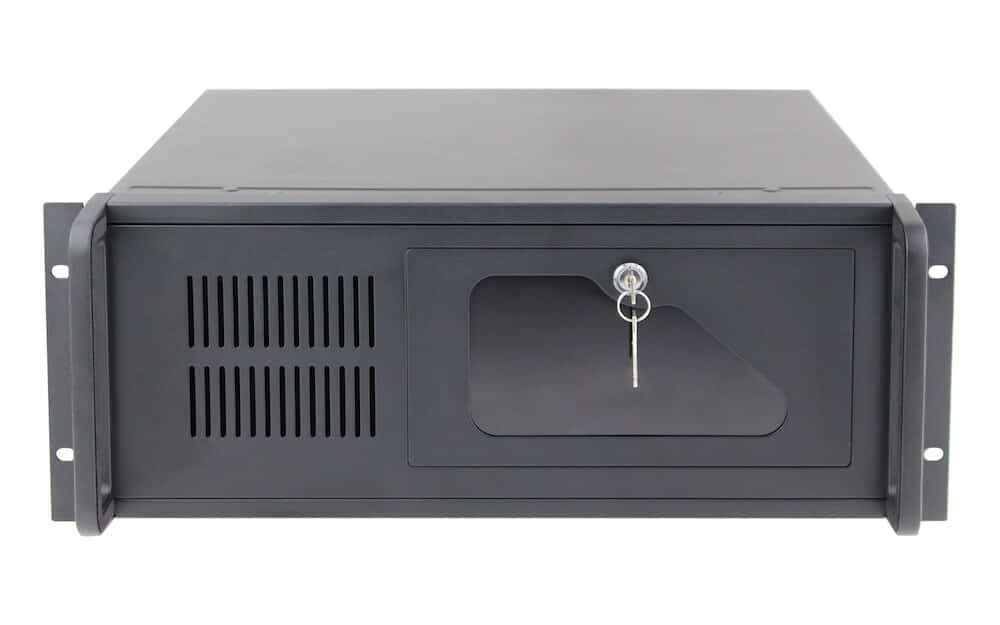

19” 4U industrial rack-mount chassis

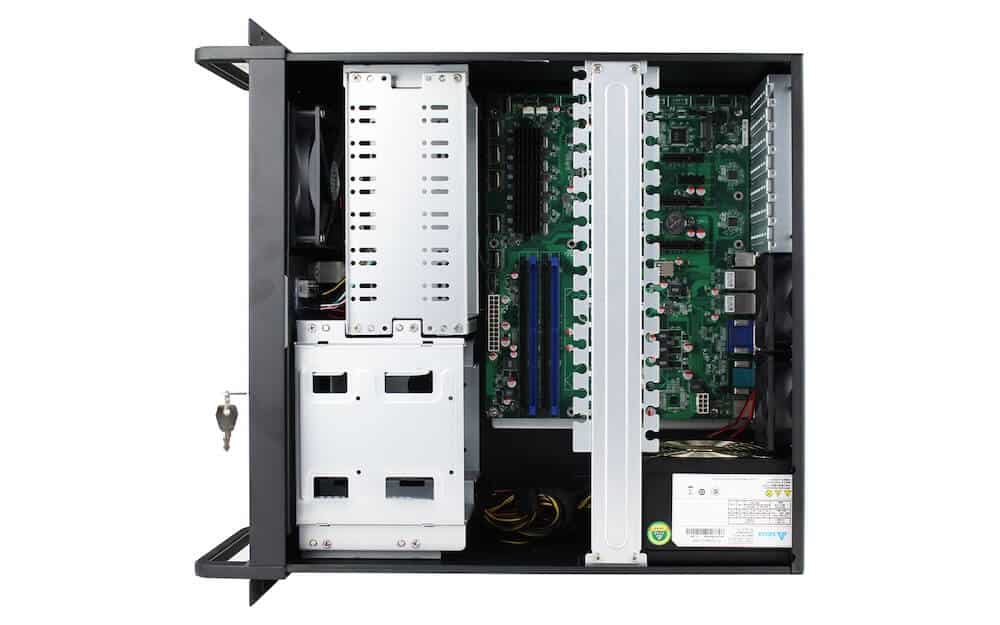

- 8x 3.5” HDD( or 2x 2.5” HDD/SSD), 2x 5.25” Bays & 1x 3.5”FDD Bays(or 3.5” HDD)

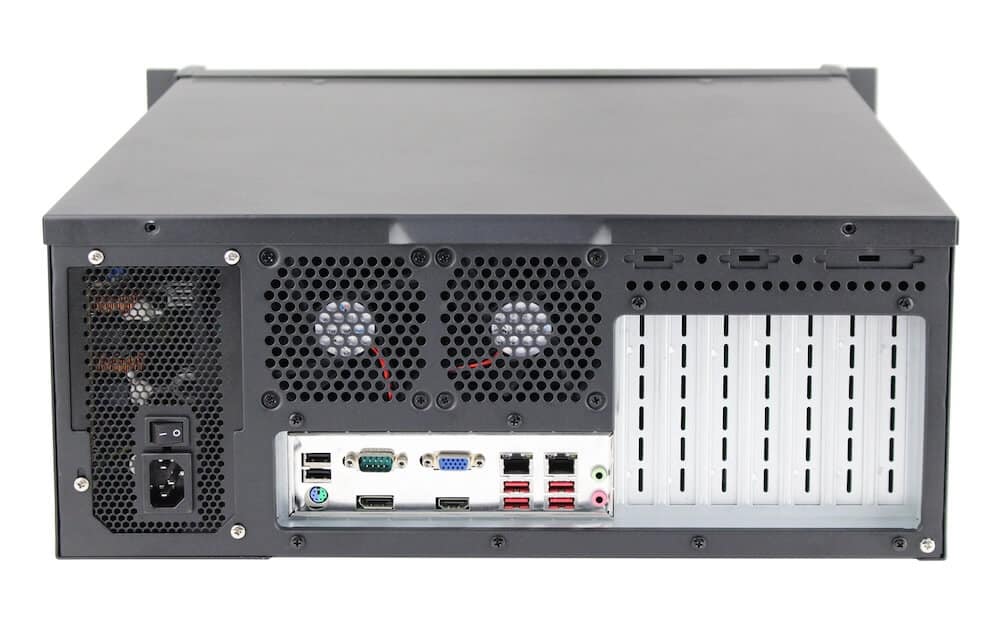

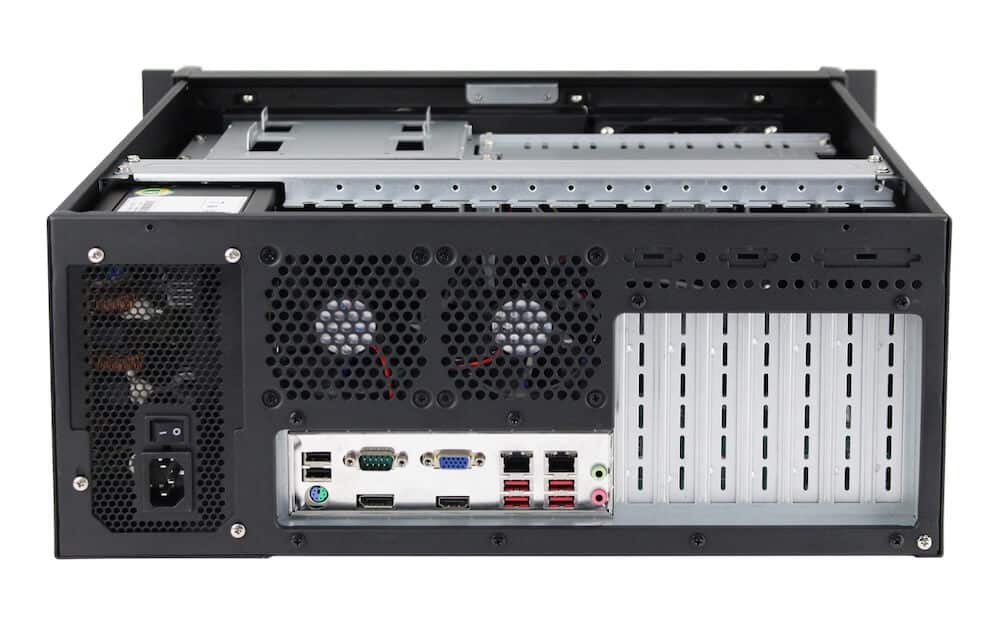

- One 12cm ball-bearing cooling fans (Front) & Two 8cm ball-bearing cooling fans (Real)

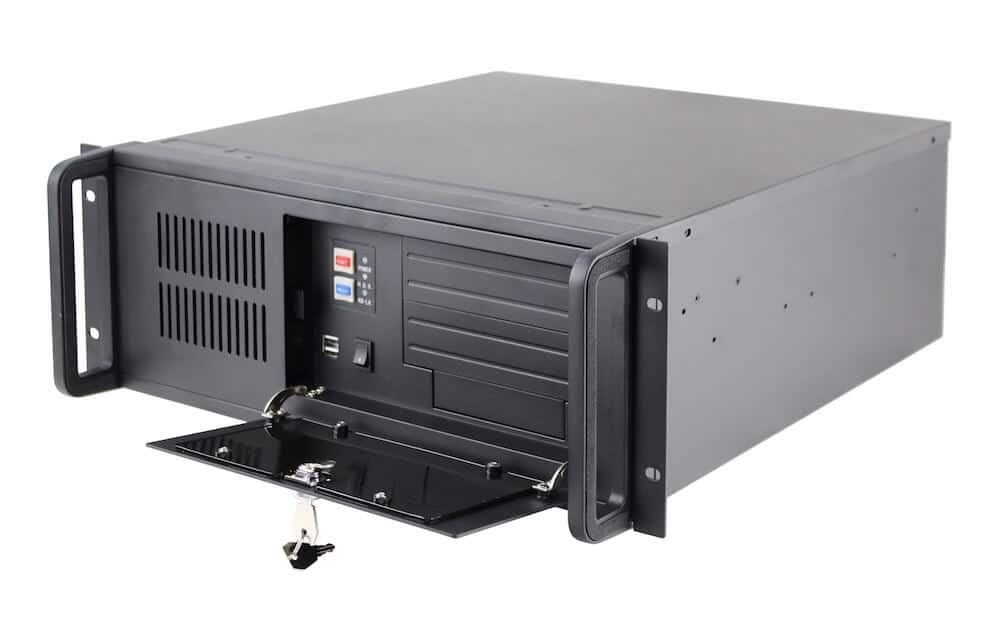

- Two USB2 ports on the front panel
- All I/O ports, Buttons, LEDs, Drive bays, AC inlet located on the front side
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Construction | Heavy-duty steel with aluminum front panel |
|---|---|
| Drive | Bay8x 3.5" HDD( or2x 2.5" HDD/SSD),2x 5.25" Bays &1x 3.5"FDD Bays(or 3.5" HDD) |
| Indicator | 1x Power On/Off LED,1x HDD LED |
| Switch | 1x Power On/Off,1x System reset |
| Connector | 2x USB ports on the front panel |
| Expansion | slots7x Full-size PCI/PCIe expansion slots, vertical insert |
| Standard | Color Black |
| Cooling | Fan One 12cm ball-bearing cooling fan(Front) & Two 8cm ball-bearing cooling fans (Rear) |
| Dimension | 450 x430 x 177 mm |
| Weight | 11.4 Kg |
| Input Voltage | 90V ~ 264V AC, full range |
| Input Frequency | 50 ~ 60Hz |
| Input Current | 10A@110V, 5A@240V |
| Efficiency | > 80% |
| MTBF | 100,000 hrs |
| EMI & Safety Approval | CE, FCC |
| Operating Temperature | 0 °C ~ 50 °C |
| Storage Temperature | 0 °C ~ 70 °C |
| Relative Humidity | 5% ~ 95°%, non-condensing |
| Vibration | 5 ~ 7 Hz: 0.5” double amplitude displacement 7 ~ 2000 Hz: 1.5g acceleration |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AREMO-1192-MX | 19” 4U rack-mount chassis for M/B | add to list – AREMO-1192-MX |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| RPC-508-MX | Datasheet | 638.50 KB | download – RPC-508-MX | Datasheet |
