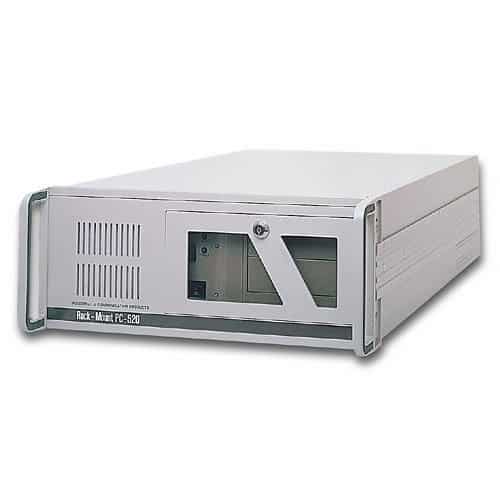

RPC-520
19″ 4U 20-slot industrial rack-mount P4 chassis
- 19″ 4U rack-mount chassis meets EIA RS-310C industrial standard
- Rugged construction suitable for harsh industrial environment
- Lockable front door for dust-proof and running security
- One power on/off switch with LED indicators and one reset switch inside the lockable door
- Replaceable air filter for easy cleaning
- Three cooling fans and easy-to-install drive bracket with shock-resistant cushion and well-conductive rubber
- Removable disk drive bracket for 5 drives (3.5″x3, 5.25″x2)
- Support 20-slot ISA, 19-slot PICMG and multiple-system backplanes
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Construction | Heavy-duty steel |
|---|---|
| Drive Bay | 3.5" x3 + 5.25" x2 |
| Cooling Fan | Three cooling fans behind the fan filter panel and one within the power supply 12cm dual ball bearing fans |
| Indicator | Power on/off x1, HDD x1 |
| Switch | Power on/off x1, System reset x1, K/B lock x1 |
| Air Filter | One front replaceable air filter |
| Standard Color | Light gray |
| Backplane | PBP-20I: 20-slot ISA backplane PBP-19AI: 19-slot (18xPCI) active PICMG backplane PBP-19AC: 19-slot (12xPCI) active PICMG backplane PBP-19P4: 19-slot (4xPCI) PICMG backplane PBP-18D4: 18-slot dual-system PICMG backplane |
| Dimension | 482(W) x 638.3(D) x 177(H) mm; 19”(W) x 25.1”(D) x 7”(H) |
| Weight | Net: 23 kg (51.1 lb); Gross: 25 kg (55.6 lb) |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| RPC-520N-19AC-450X | 19″ 4U industrial chassis with 19-slot (12xPCI) PICMG backplane and 450W ATX power supply | add to list – RPC-520N-19AC-450X | |
| RPC-520N-19AC-460AX | 19″ 4U industrial chassis with 19-slot (12xPCI) PICMG backplane and 460W ATX power supply | add to list – RPC-520N-19AC-460AX | |
| RPC-520N-19P4-450AX | 19″ 4U industrial chassis with 19-slot (12xPCI) PICMG backplane and 450W ATX power supply | add to list – RPC-520N-19P4-450AX | |
| RPC-520N-19P4-460AX | 19″ 4U industrial chassis with 19-slot (12xPCI) PICMG backplane and 460W PFC ATX power supply | add to list – RPC-520N-19P4-460AX |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| RPC-520 | Datasheet | 100.15 KB | download – RPC-520 | Datasheet |
