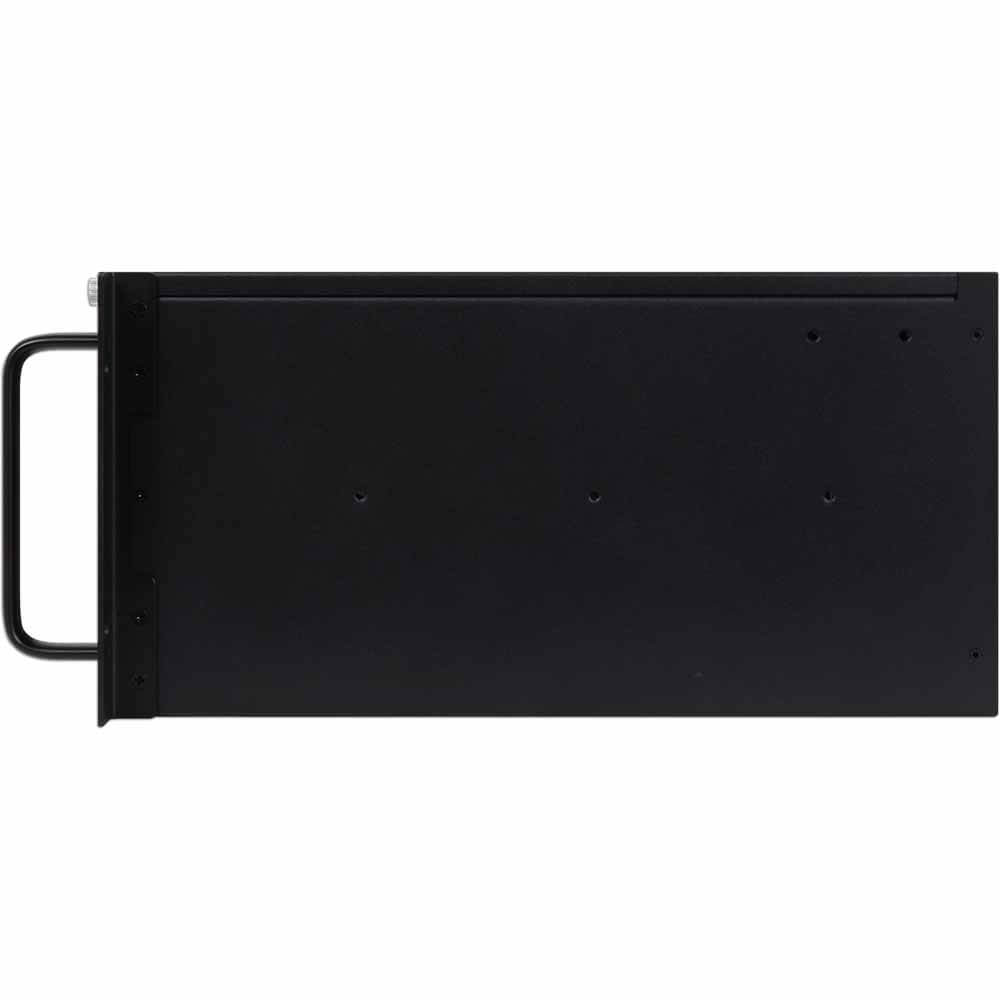

RPC-530
19” 4U industrial rack-mount chassis

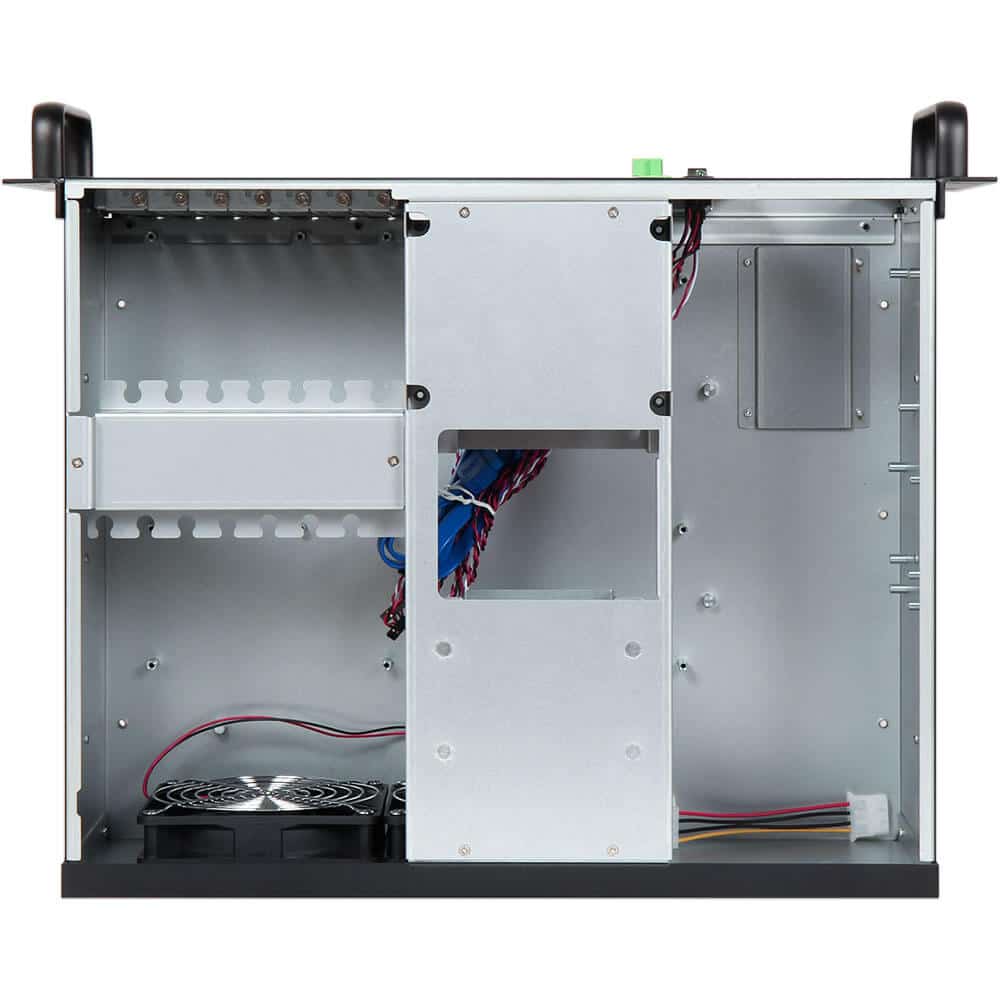

- One slim CD-ROM and two 2.5” HDD/ SDD Drive bays
- Two 12 cm ball-bearing cooling fans for better ventilation
- Two USB 3 ports on the front panel

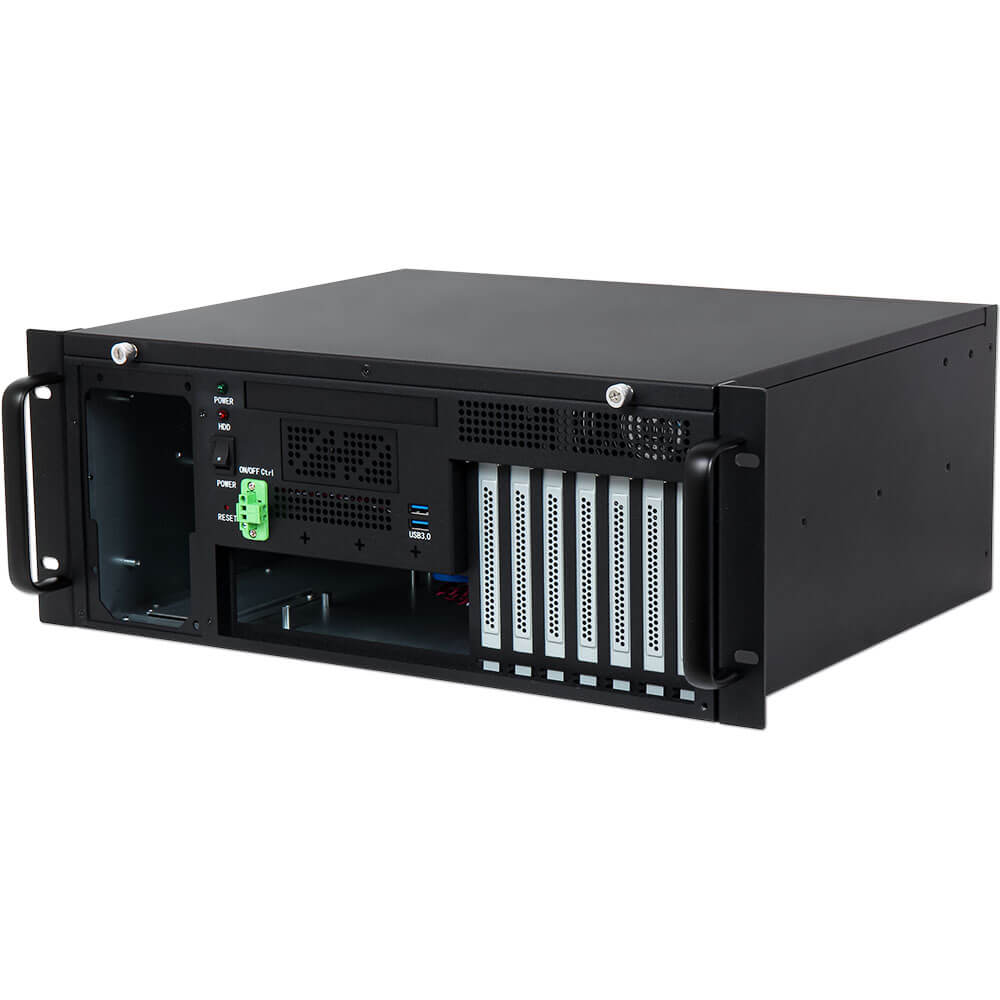

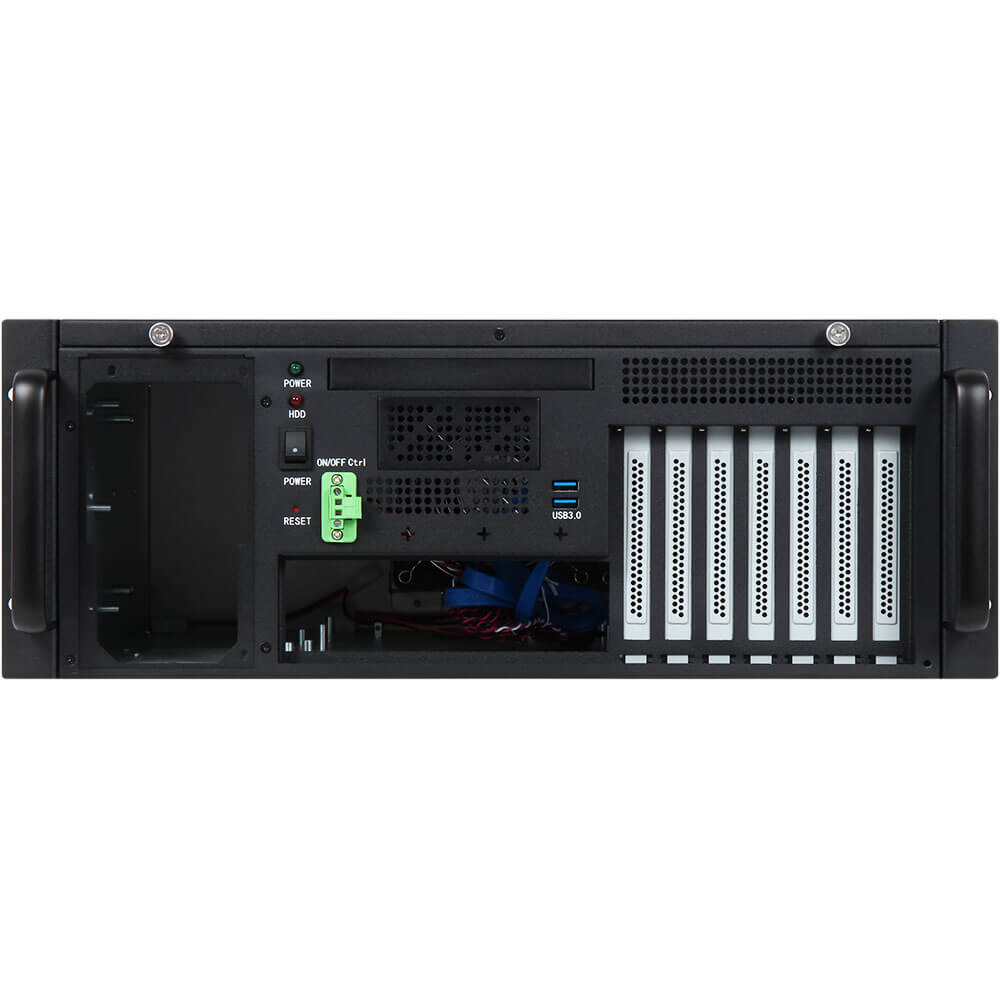

- All I/O ports, Buttons, LEDs, Drive bays, AC inlet located on the front side
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Construction | Heavy-duty steel with aluminum front panel |
|---|---|
| Drive Bay | 1x Slim ODD,1x 3.5” HDD,1x 2x 2.5” HDD/SSD |
| Cooling Fan | Two 12cm ball-bearing cooling fans |
| Indicator | 1x Power On/Off LED,1x HDD LED |
| Switch | 1x Power On/Off,1x System reset |
| Connector | 2x USB ports on the front panel |
| Standard Color | Black |
| Dimension | 482 x175 x 350 mm |
| Weight | 8.5Kg |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| RPC-530 | Datasheet | 501.55 KB | download – RPC-530 | Datasheet |
