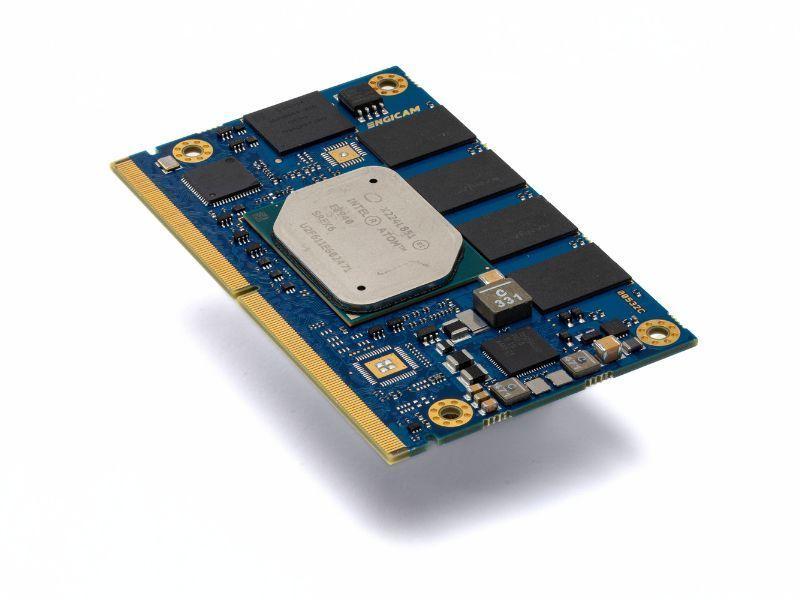

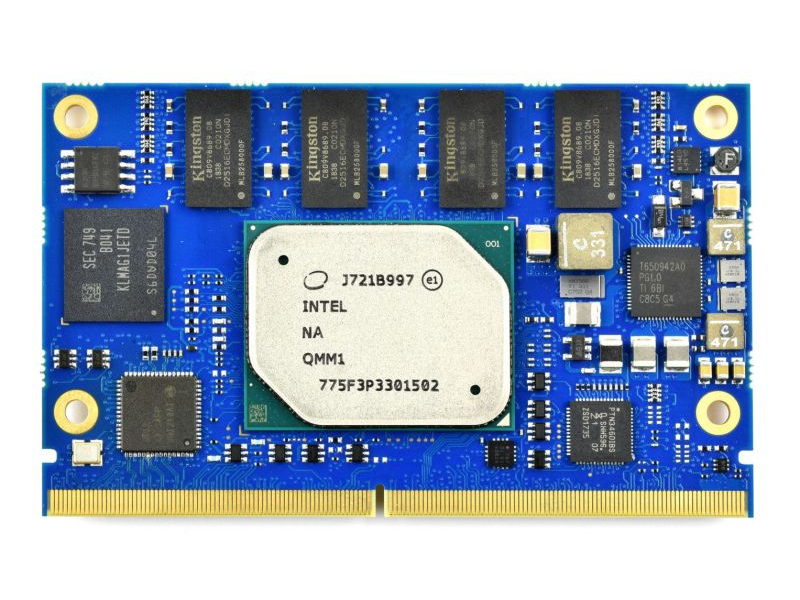

SmarCore APL-x86
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Apollo Lake |
|---|---|
| CPU #2 | Manufacturer: Intel |
| CPU #3 | GPU: ja |
| Cores | x86 |
| Cores #2 | Up to 4 up to 2.5GHz, L2 cashe 2MB |
| Memory | DDR3@1066MTs |
| Memory #2 | 2GB up to 8GB |
| Graphics & AI | Graphics : Intel® 9th generation (Gen 9) LP graphics. HW accelerated encode HEVC (L5), H.264 (L5.2), MVC (L5.1) VP8, JPEG/MJPEG. |
| Video Processing Unit Capabilities | HW accelerated encode HEVC (L5), H.264 (L5.2), MVC (L5.1) VP8, JPEG/MJPEG. HW accelerated decode HEVC (L5.1), H.264 (L5.2), MVC (L5.2) VP8, VP9, MPEG2, VC-1, WMV9, JPEG/MJPEG. |
| Mass Storage | 1 x SATA Gen3, 16GB eMMC 5.0 expandible |
| Networking | 1x 1Gb Ethernet |
| USB | 1x OTG |
| USB #2 | 5x USB2 |
| USB #3 | 2x USB3 |
| PCIe | 4 |
| PCIe #2 | up to4 x PCIe Gen2 |
| Audio | 1 x HDA and1 x I2S |
| Peripheral Interfaces | I2C, SPI, UART, SDIO, GPIO |
| Power Supply | single 5V |
| Dimensions | 82 x 50 mm |
| Product availability | 2031 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| SmarCore_APL_Flyer.pdf | 423.84 KB | download – SmarCore_APL_Flyer.pdf |
