SMARC Modules
PCOM-BC00
SMARC 2.2 Compliant module (82 x 50 mm) powered by Intel® Alder Lake-N, Amston Lake (Atom® x7000RE), and Twin Lake (Core Processor N) Series SoCs, featuring onboard LPDDR5 SDRAM
- Engicam

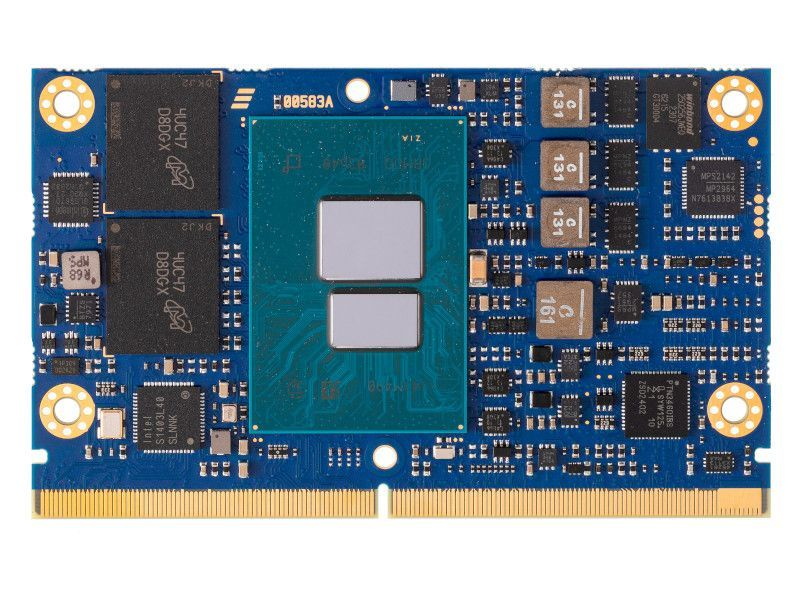

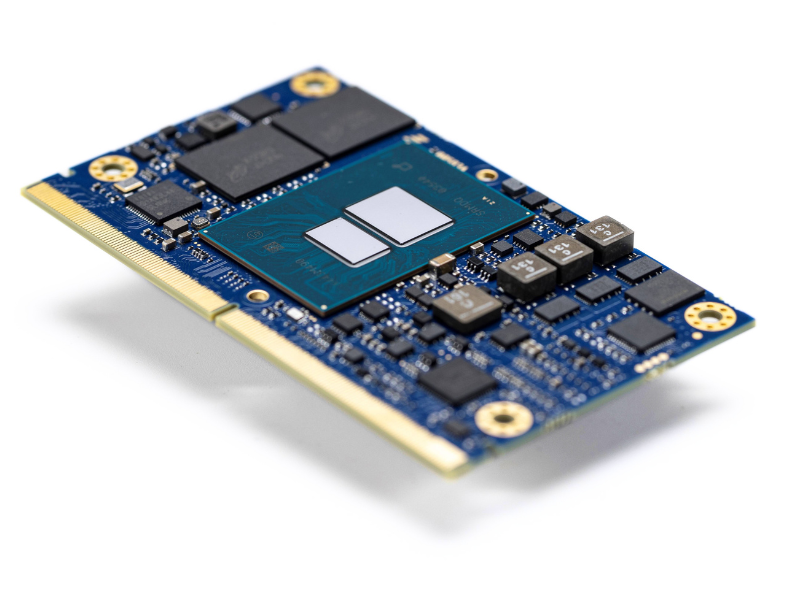

SmarCore ASL
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Amston Lake |
|---|---|
| CPU #2 | Manufacturer: Intel |
| CPU #3 | GPU: ja |
| Cores | x86 |
| Cores #2 | Intel Atom® x7000RE Series Intel Atom® x7000C Series |
| Memory | LPDDR5@4800MTs |
| Memory #2 | 4GB up to 16GB |
| Graphics & AI | UHD Intel OpenGL 4.6 OpenCL 3.0 Direct X 12.1 IPU 6 |
| Video Processing Unit Capabilities | HEVC/ H265, VP9, AV1 dec HEVC/H265 enc |
| Mass Storage | Starting from 4GB eMMC soldered on board |
| Networking | 2x 2.5 Gb Ethernet |
| USB | 6x USB2 |
| USB #2 | 2x USB3 |
| PCIe | 4 |
| PCIe #2 | PCIe interface Gen3/up to 2-lane |
| Audio | I2S, HDA interface |
| Peripheral Interfaces | UART, I2C, SPI, GPIOs |
| Power Supply | single 5V |
| Operating Temperature | -40° up to 85° |
| Operating Temperature #2 | Valid for Intel Atom® x7000RE Series |
| Dimensions | 82 x 50 mm |
| Product availability | 2034 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Smarcore_ASL_Flyer.pdf | 329.76 KB | download – Smarcore_ASL_Flyer.pdf |
