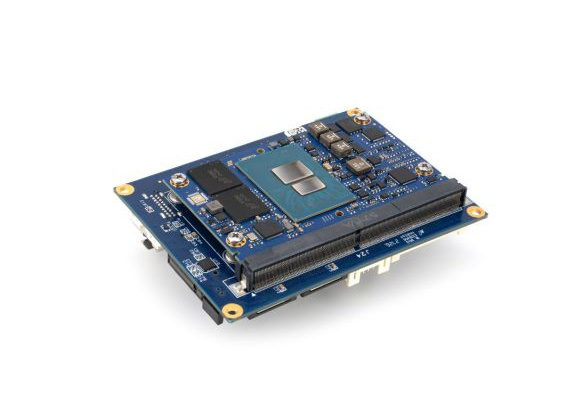

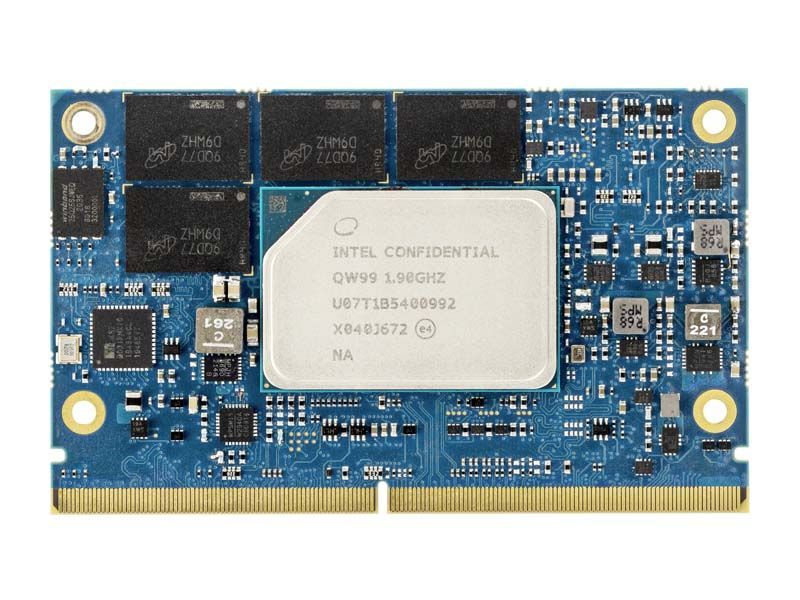

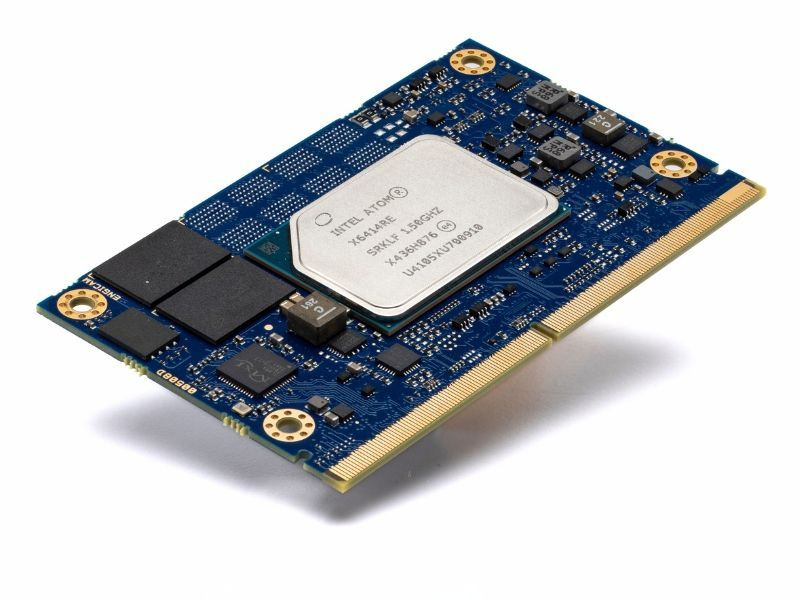

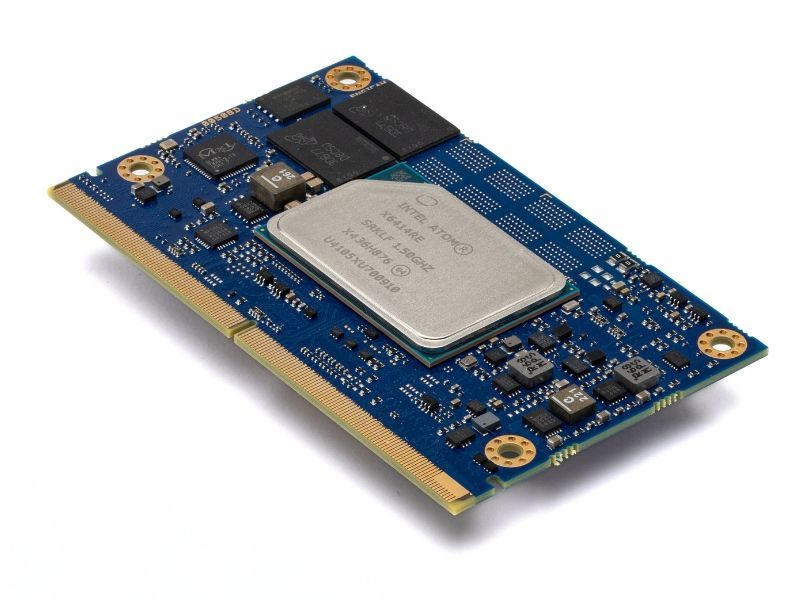

SmarCore EHL
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Elkhart Lake |
|---|---|
| CPU #2 | Manufacturer: Intel |
| CPU #3 | VPU: ja |
| CPU #4 | GPU: ja |
| Cores | x86 |
| Cores #2 | Up to 4 up to 1.9GHz, L2 cache 1.5MB |
| Memory | LPDDR4@3733MTs |
| Memory #2 | 2MB up to 16GB |
| Graphics & AI | Intel® 11th generation (Gen 11) LP graphics controller. DirectX 12.1 compliant, OpenGL ES 3.1/3.0/2.0/1.1, OpenGL 4.5 supported, OpenCL™ 1.2, Vulkan 1.0 APIs, Dedicated FIVR for Graphics, Intel® Virtualization Technology for Directed I/O (VT-d) |
| Video Processing Unit Capabilities | HW accelerated encode HEVC/H.265, H.264, VP9, VP8, WMV9/VC1, MPEG-2, VC-1. JPEG/MJPEG dec HW accelerated encode HEVC/H.265, H.264, VP9, JPEG/MJPEG enc |
| Mass Storage | Starting from 4GB eMMC drive soldered on-board |
| Networking | 2x 1Gb Ethernet |
| USB | 1x OTG |
| USB #2 | 3x USB2 |
| USB #3 | 2x USB3 |
| PCIe | 4 |
| PCIe #2 | PCIe interface Gen3/up to 4-lane |
| Audio | I2S Interface, HDA |
| Peripheral Interfaces | UART, I2C, PCIe 3.0, SPI, JTAG, CAN, SDIO, GPIO |
| Power Supply | single 5V |
| Operating Temperature | -40° up to 85° |
| Dimensions | 82 x 50 mm |
| Product availability | 2031 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| SmarCore_EHL_Flyer.pdf | 387.31 KB | download – SmarCore_EHL_Flyer.pdf |
